18
PELLET BURNER2.4

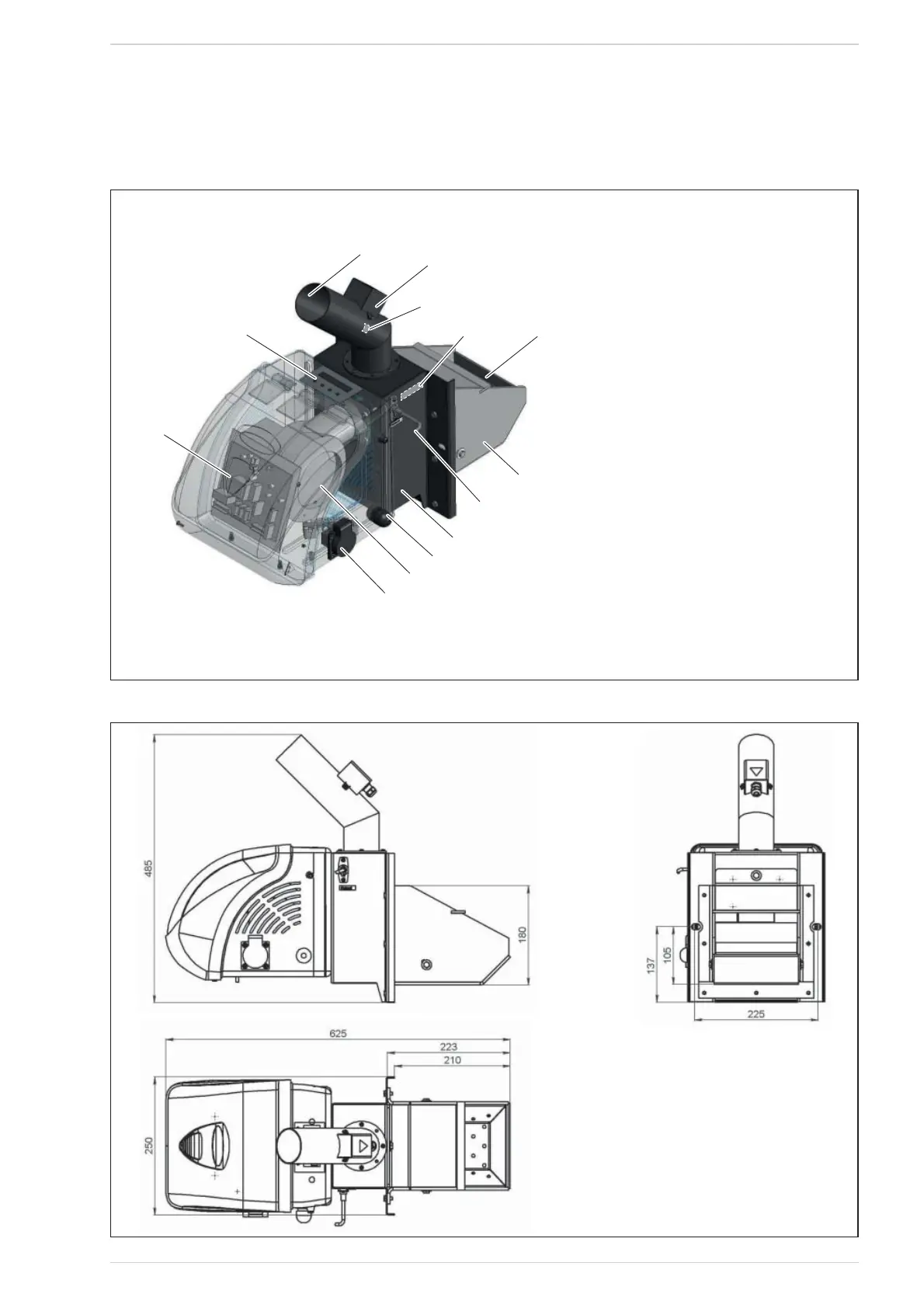

DESCRIPTION2.4.1
1
3
8
2
5
9
10
11 4
7
6
13
12
KEY
1 Burner body
2 Fan motor
- SOLIDA 5 PL :
RLD85/0034 A7-302020LH-502 ki
220-240V AC 50 HZ - 35W
- SOLIDA 8 PL + :
RLG97/0042 A16-30252LH-502 ahs
220-240V AC 50 HZ - 38W
3 Brazier
4 Pellet grille
(can be removed for cleaning)
5 Photoresistor (see the brightness of the flame)
6 Pellet feed hole
7 Pellet safety thermostat
8 Power supply
9 Screw feeder connector
10 Burner control card
11 Display panel
12 Burner thermosticker
13 Pellet feed tube thermosticker
Fig. 40
DIMENSIONS2.4.2
Fig. 41
