MRMap Development Team 10/01/2009

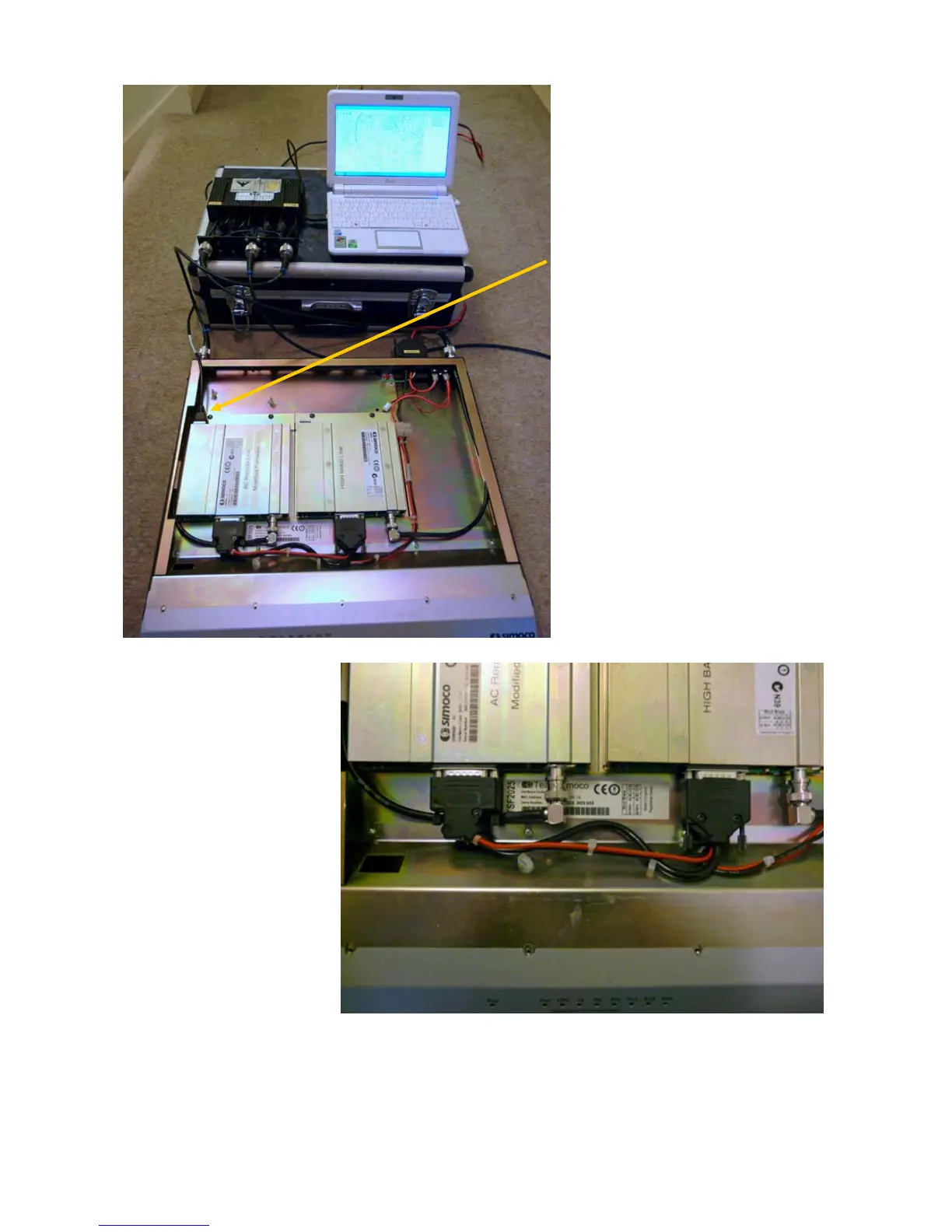

The image on the left shows the whole
rebroadcast setup with the lid off. The
radios are standard SRM9005s but are
fitted into a TSF2000, 1U, case and not in
their normal individual aluminium boxes.
The necessary heatsink is on the bottom
of each radio. The RJ45 port on the left-
hand (TWC) radio is connected to
MRMap running on my Eee PC and the
device to the left of the computer, is the
diplexer.
The image below is a close-up of the
power/facility connectors. The heavier
black lead between the two
D-connectors carries the cross-over
connections that duplicate the job
normally handled by the red, RJ45
crossover lead. Both radio RJ45
connectors are available for use with
either a computer or a control head.
