Simoco SRM9020 Service Manual

DRAFT D
TNM-M-E-0001 Page
70
APPENDIX B - SRM9010 MICROPHONE
Select
On/Off
PTT
Microphone
Volume
Up
Volume
Down
Channel
Select
Channel
Number
Transmit
Indicator
9k_36

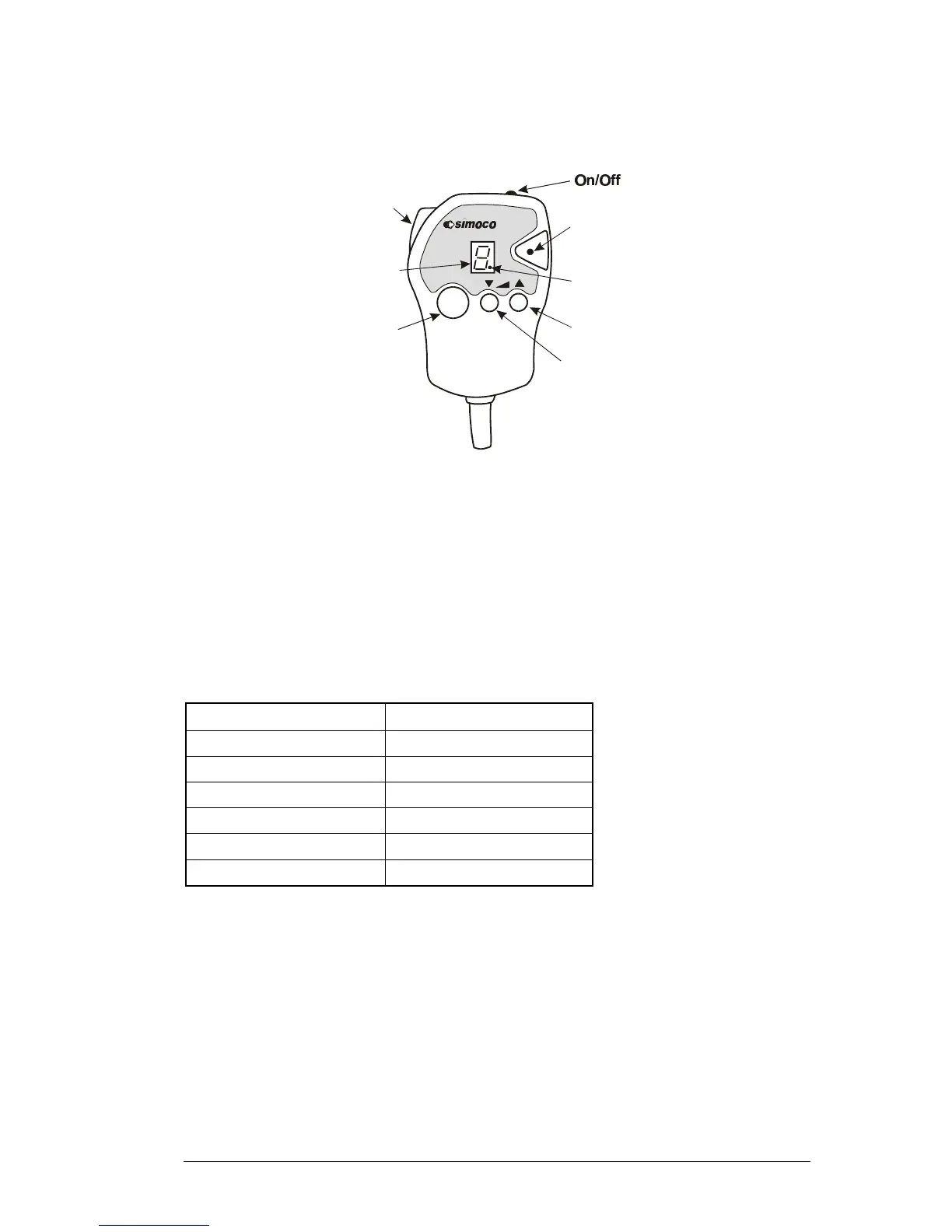

Figure B.1 SRM9010 Microphone
The microphone is arranged for connection to the RJ45 connector on the front of the SRM9000
Transceiver, either directly or via the extension lead accessory.
There are no repairable electronic components in the Microphone. Only those items listed in
Paragraph B1 are replaceable. If the Microphone PCB fails, the Microphone must be replaced
in its entirety.
B.1 Replaceable Parts
Item Part Number
On/Off Switch 3502-445-00020
Volume Up/Down Switch 3502-445-00030
Channel Select Switch 3502-445-00030
PTT Switch 3502-445-00010
Curly cord 3502-310-63400
Mic Element 3502-310-63420
