3.3 Basic wiring

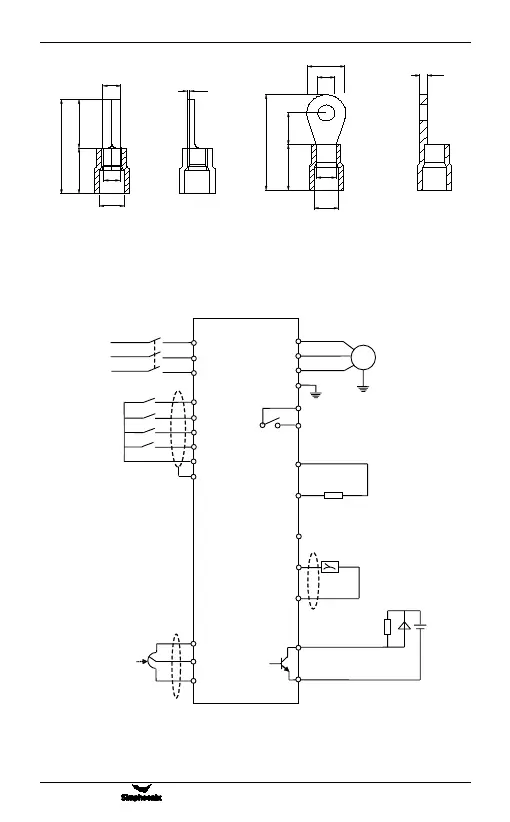

Figure 3-3 Basic Wiring of Inverter
M
~
电动机
Ta
Tc
U
W
V
R
S
T
AO
GND
故障报警输出
电压表（0~10V）
三相电源
E
X1
X2
X3
CM
可编程输入端子
VS
AI
PB
外接制动电阻
接大地
×
×
×
三相断路器
PP
24V 辅助直流电源
0~10V（0~20mA）
频率设定
GND
E
CM
OC
开路集电极输出
X4
Frequency setting
To braking resistor
Auxiliary DC power supply
Voltmeter
(0-10V)
Open-circuit
collector output
Failure alarm output
To earth
Motor
Three-phase circuit breaker
Three-phase
power supply
Programmable
input terminal
d1
D
H
L
F
d2
W
T
T
L
FH
d1
D
W
