Simplex IDNet 4009 User Manual

2
The 4009 IDNet connects as an end-of-line device to a compatible notification
appliance circuit from the host panel. It provides eight amperes of DC signaling
power to either four or eight supervised reverse-polarity NACs, style Y or style
Z.
A
larms from the host panel signal the four (or eight) 4009 IDNet NACs to
extend the alarm.
The 4009 IDNet can also minimize transmission line losses associated with
sending large currents long distances within buildings. In a fire alarm system
with the 4009 IDNet power supply and batteries for notification appliances are
located near the actual notification appliances, saving system power and battery
capacity while minimizing line losses.
F

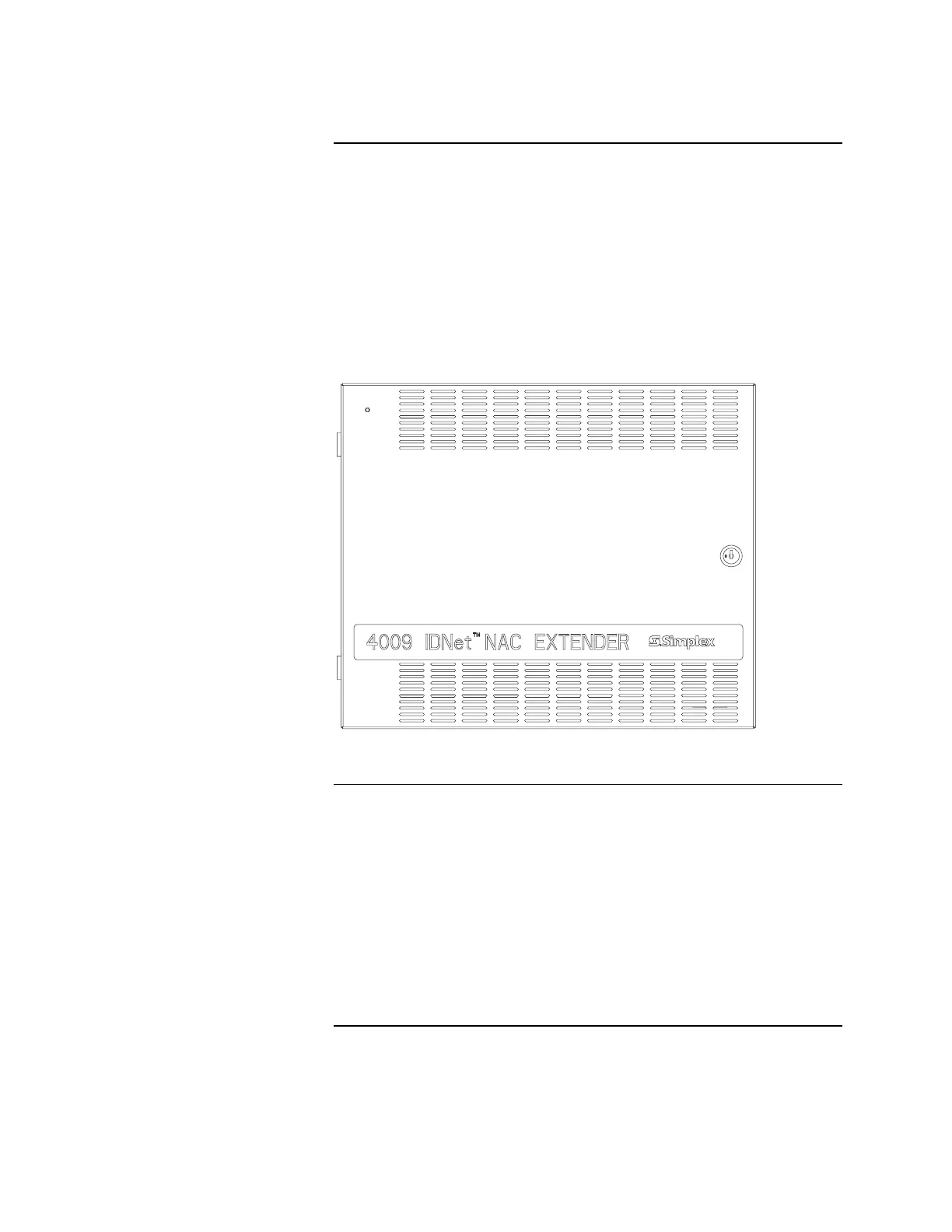

igure 1. Simplex 4009 IDNet NAC Extender (4009 IDNet)
When the desired options have been installed in the 4009 IDNet, set the
Hardware Configuration Switch SW1 to match the installed options (see
Table 1). If the 4009 is not connected to IDNet, set SW1/Position 8 to ON for
hardwire control (see paragraph “Hardwired 4009 IDNet Control”). The desired
control options for the 4009 IDNet are set by the Software Configuration DIP
Switch SW2 (see Tables 2 and 3).
When the 4009 IDNet is connected to IDNet, set the Hardware Configuration
Switch SW1 (see Table 1) to match the installed options; and set SW1/Position 8
to OFF for IDNet addressable control (see paragraph “Addressable 4009 IDNet
IDNet Control”). Set the IDNet address on SW2 using Figure 5 as a reference.
Continued on next page
4009 IDNet NAC Extender
Introduction, continued
4009 IDNet Configuration
