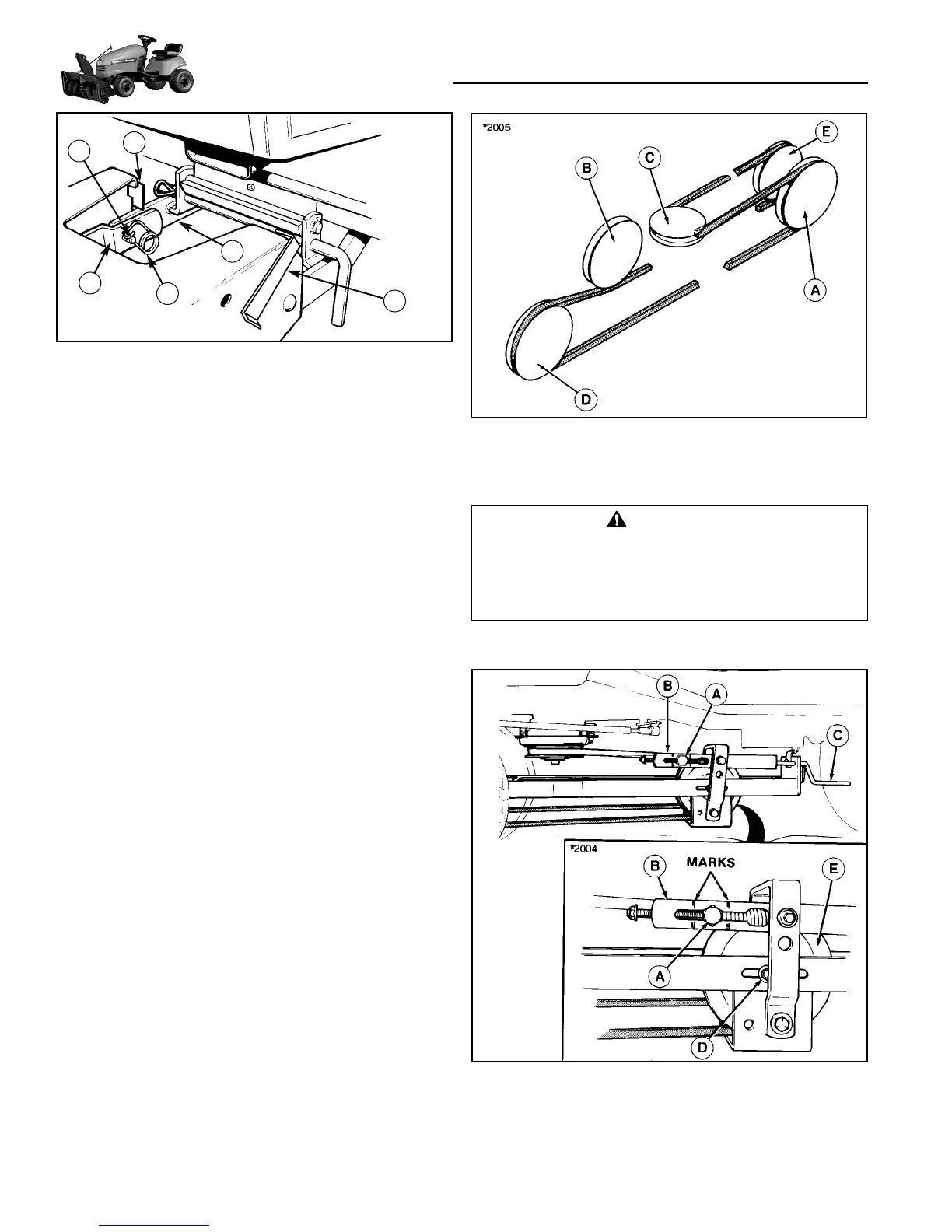

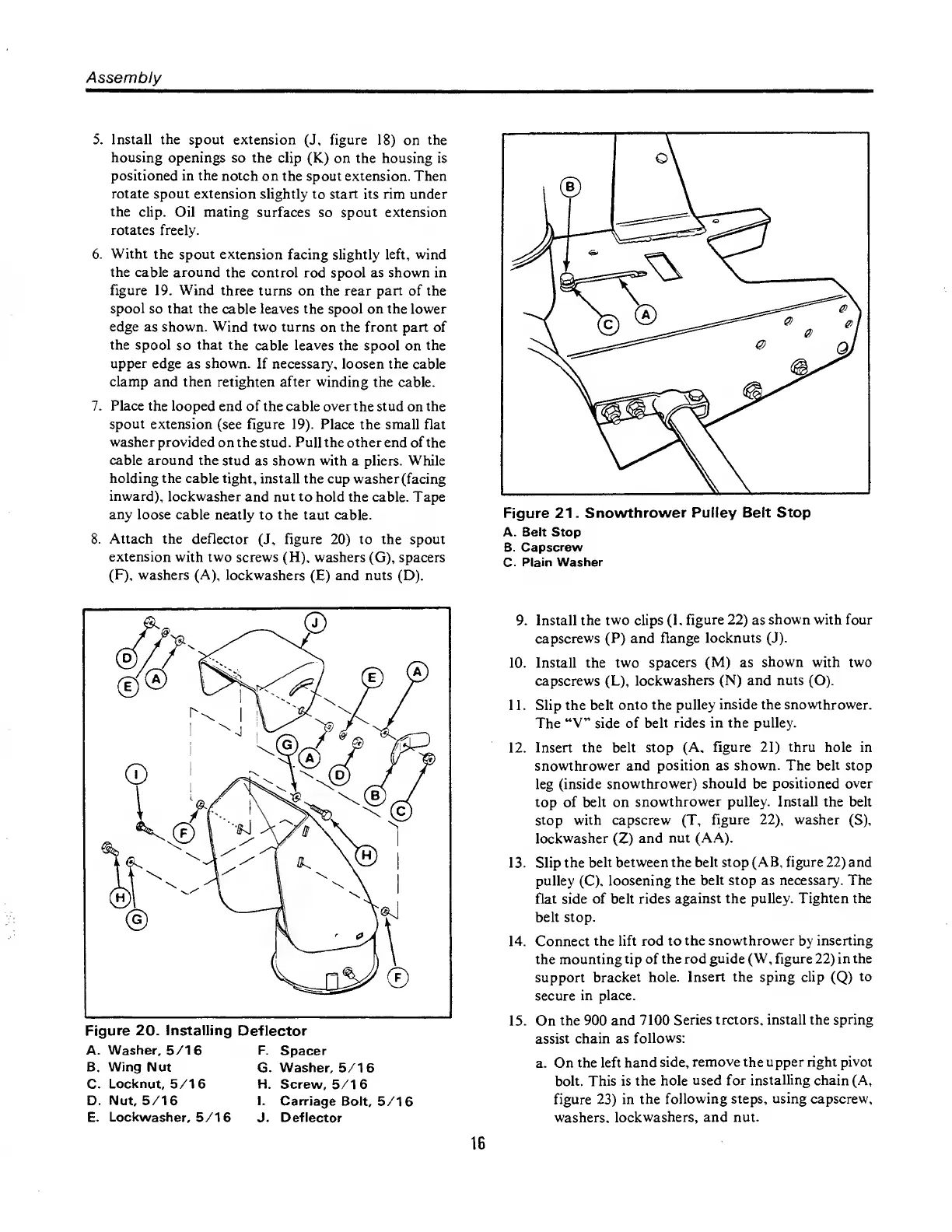

Assembly
5 . Install the spout extension (J, figure 18) on the
housing openings so the clip (K) on the housing is
positioned in the notch on the spout extension. Then
rotate spout extension slightly to start its rim under
the clip. Oil mating surfaces so spout extension
rotates freely.
6. Witht the spout extension facing slightly left, wind
the cable around the control rod spool as shown in
figure 19. Wind three turns on the rear part of the
spool so that the cable leaves the spool on the lower
edge as shown. Wind two turns on the front part of
the spool so that the cable leaves the spool on the
upper edge as shown. If necessary, loosen the cable
clamp and then retighten after winding the cable.
7. Place the looped end of the cable over the stud on the
spout extension (see figure 19). Place the small flat
washer provided on the stud. Pull the other end of the
cable around the stud as shown with a pliers. While
holding the cable tight, install the cup washer (facing
inward), lockwasher and nut to hold the cable. Tape
any loose cable neatly to the taut cable.
8. Attach the deflector (J, figure 20) to the spout
extension with two screws (H), washers (G), spacers
(F), washers (A), lockwashers (E) and nuts (D).
Figure 21. Snowthrower Pulley Belt Stop
A. Belt Stop
B. Capscrew
C. Plain Washer
Figure 20. Installing Deflector
A. Washer, 5/16
B. Wing Nut
C. Locknut, 5/16
D. Nut, 5/16
E. Lockwasher, 5/16
F. Spacer
G. Washer, 5/16
H. Screw, 5/1 6
I. Carriage Bolt, 5/16
J. Deflector
9. I nstall the two clips (I. figure 22) as shown with four
capscrews (P) and flange locknuts (J).
10. Install the two spacers (M) as shown with two
capscrews (L), lockwashers (N) and nuts (O).
11. Slip the belt onto the pulley inside the snowthrower.
The “V” side of belt rides in the pulley.
12. Insert the belt stop (A, figure 21) thru hole in
snowthrower and position as shown. The belt stop
leg (inside snowthrower) should be positioned over
top of belt on snowthrower pulley. Install the belt
stop with capscrew (T, figure 22), washer (S),
lockwasher (Z) and nut (AA).
13. Slip the belt between the belt stop (AB, figure 22) and
pulley (C), loosening the belt stop as necessary. The
flat side of belt rides against the pulley. Tighten the
belt stop.
14. Connect the lift rod to the snowthrower by inserting
the mounting tip of the rod guide (W, figure 22) in the
support bracket hole. Insert the sping clip (Q) to
secure in place.
15. On the 900 and 7100 Series trctors, install the spring
assist chain as follows:
a. On the left hand side, remove the upper right pivot
bolt. This is the hole used for installing chain (A,
figure 23) in the following steps, using capscrew,
washers, lockwashers, and nut.
