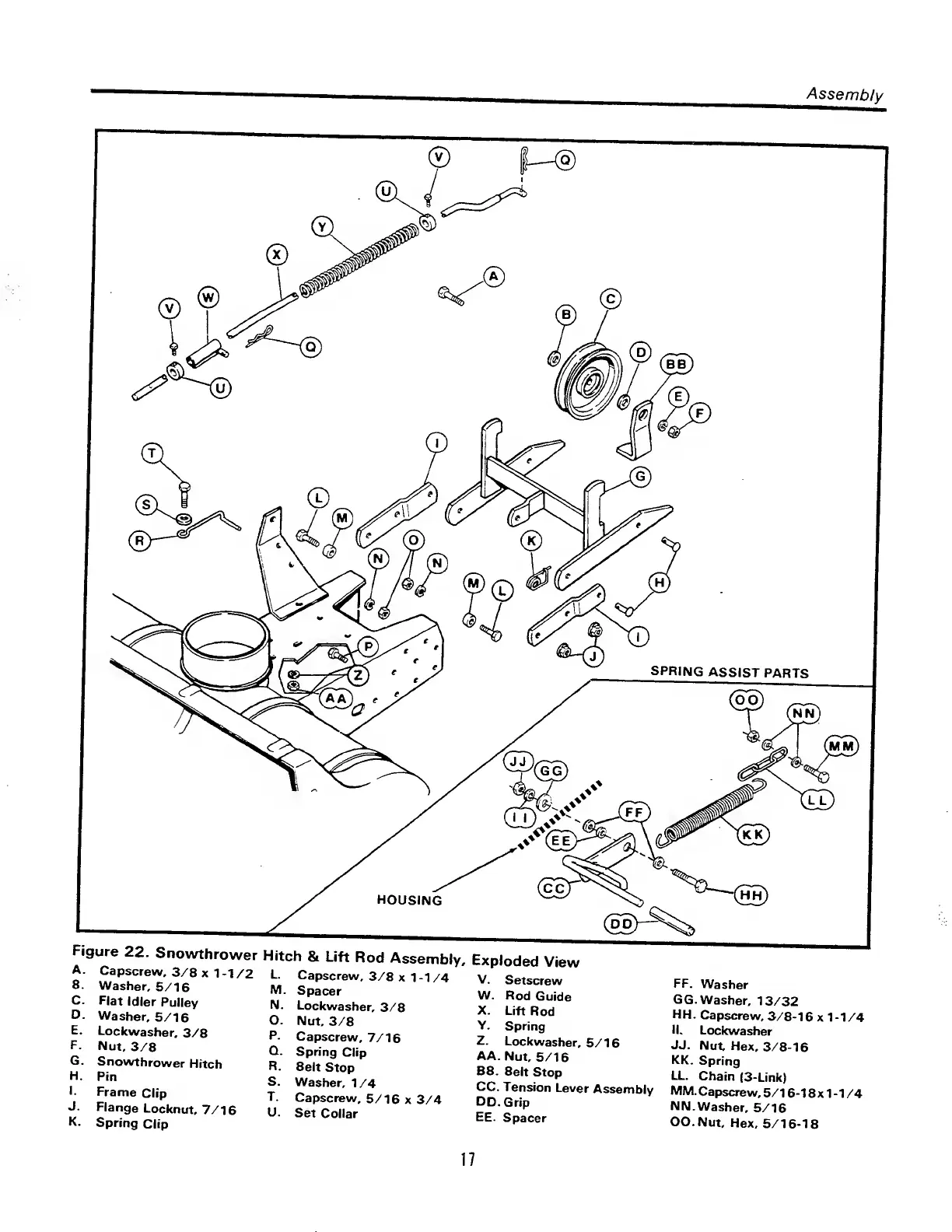

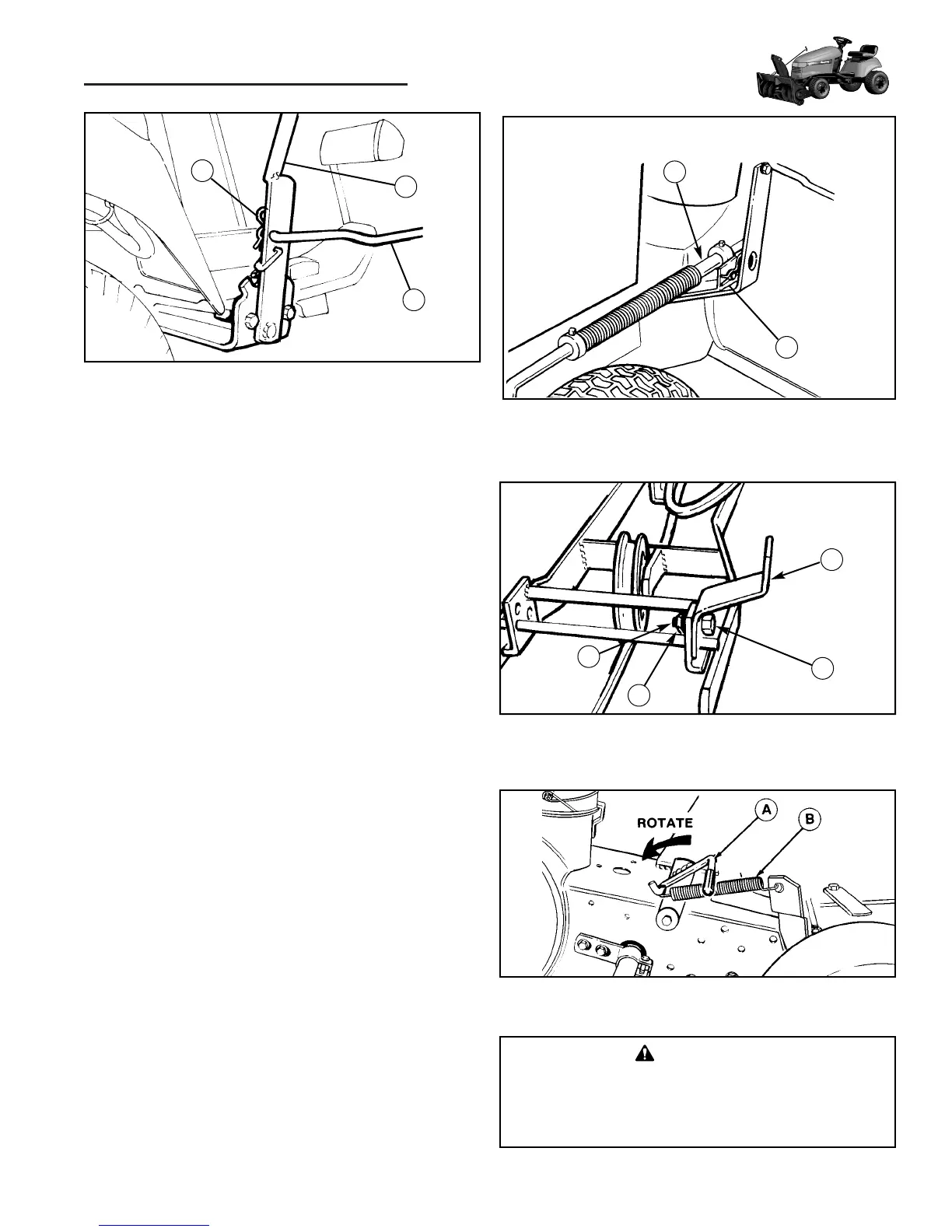

Figure 22. Snowthrower
A. Capscrew, 3/8 x 1 - 1 / 2
B. Washer, 5/16
C. Flat Idler Pulley
D. Washer, 5/16
E. Lockwasher, 3/8
F. Nut, 3/8
G. Snowthrower Hitch
H. Pin
I- Frame Clip
J- Flange Locknut. 7/16
K. S pring Clip
Hitch & Lift Rod Assembly,
L. Capscrew, 3/8 x 1-1/4
M. Spacer
N. Lockwasher, 3/8
O. Nut, 3/8
P- Capscrew, 7/16
Q. Spring Clip
R. Belt Stop
S. Washer, 1/4
T. Capscrew, 5/16 x 3/4
U. Set Collar
Exploded View
--
V. Setscrew
FF. Washer
W. Rod Guide
GG. Washer, 13/32
X. Lift Rod
HH. Capscrew. 3/8-16 x 1-1/4
Y. Spring
II. Lockwasher
Z. Lockwasher, 5/16
JJ. Nut, Hex, 3/8-16
AA. Nut, 5/16
KK. Spring
BB. Belt Stop
LL. Chain (3-Link)
CC. tension Lever Assembly
MM. Capscrew. 5/16-18x1-1/4
DD. Grip
NN. Washer, 5/16
EE. Spacer
OO. Nut, Hex, 5/16-18
