General
Recommended Accessories
Tire chains and a weight box are recommended when installing
this attachment to your unit. These accessories will improve trac-
tion, thereby making the snowthrower more efficient. For addi-
tional traction, one wheel weight per wheel is recommended.
Weight added to the tractor should not exceed 35 lbs. per wheel
and 100 lbs. additional weight with the weight box.
For operation on slopes greater than 15% (8.5°), weight box, tire
chains and wheel weights are recommended. Never operate on
slopes greater than 30% (16.7°). See Operation on Slopes, page 3.
NOTE: Large Lift Lever Kit (part no. 1691832) is required for
Regent/2500/500 Series & Broadmoor/LT/2600/1600 Series trac-
tors, if not already factory installed. The Landlord/GT/2700/1700
Series tractors come factory equipped with either the large lift
lever or an electric lift.

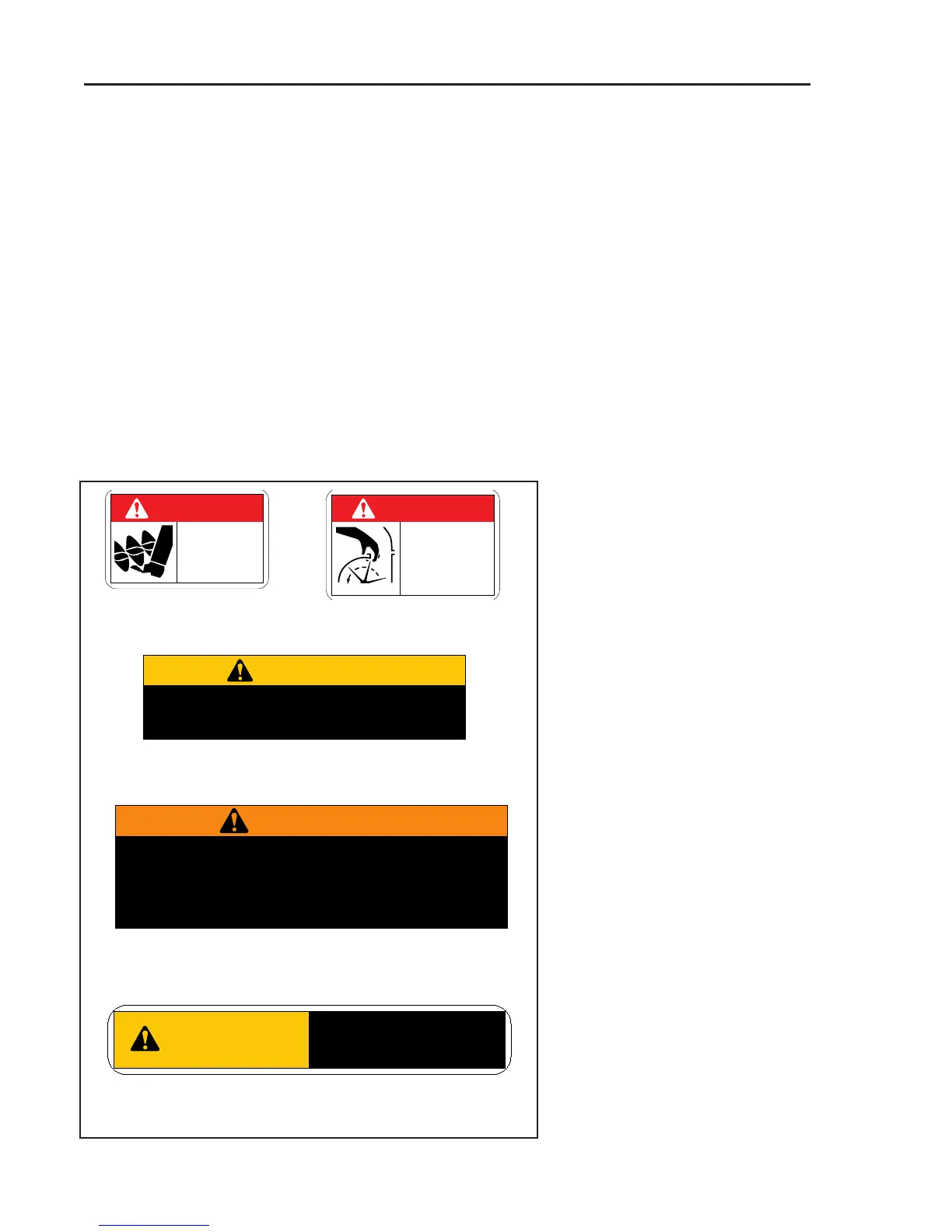

Safety Decals
DANGER
AVOID INJURY
FROM ROTATING
AUGER!
Keep hands, feet,
and clothing away.
1716532
DANGER
AVOID INJURY
FROM ROTATING
BLOWER!
Shut off engine
before unclogging
discharge chute.
1716533
TO AVOID SERIOUS INJURY OR DEATH
• Refer to Operator's Manual for Safety and
Operating Instructions.
• Keep all guards and shields in place.
• Stop engine, remove key, and be sure all
moving parts have come to a complete
stop before servicing or unplugging.
• Do not use hands to unplug chute or auger.
• Always direct discharge so as to avoid injury
to persons —or damage to property.
• Never allow anyone in front of the machine
while it is operating.
1716531
WARNING
SPRING IS UNDER TENSION. RAISE
SNOWTHROWER BEFORE PULLING LEVER
BACK TO DISCONNECT SPRING.
1716536
CAUTION
Part No. 1716532
Auger Danger Decal
Part No. 1716533
Discharge Chute Danger Decal
Part No. 1716531
Main Operation Warning Decal
Part No. 1716536
Spring Tension Caution Decal
OPERATION AND USE
Recommended Accessories .......................1
Safety Decals ................................................1
Safety Rules..................................................2
Operation ......................................................3
Maintenance..................................................5
Belt Replacement .........................................7
Adjustments..................................................7
Belt Tension Adjustment............................7
Skid Shoe Adjustment ...............................7
Lift Rod Adjustment ...................................8
Troubleshooting ...........................................9
ASSEMBLY AND INSTALLATION
Regent / 500 / 2500 Series See Page 10-15
Snowthrower Assembly ...........................10
Hitch Installation ......................................12
Snowthrower Installation .........................14
Broadmoor / 1600 / 2600 Series See Pages 16-20
Snowthrower Assembly ...........................16
Hitch Installation ......................................18
Snowthrower Installation .........................20
Landlord / 1700 / 2700 Series See Pages 22-26
Snowthrower Assembly ...........................22
Hitch Installation ......................................25
Snowthrower Installation .........................26
Standard Torque Specifications ...............29
Standard Fastener Identification ..............30
Lift Lever Kit Installation Instructions......31
NOTE: In these instructions, “left” and “right”
are referred to as seen from the operating
position.
WHEN OPERATING TRACTOR
WITHOUT SNOWTHROWER ATTACHED,
FLUID IN FRONT TIRES IS REQUIRED.
CAUTION
1716887
Part No. 1716887
Tire Fluid Caution Decal (Regent Series Only)
© Copyright 1997 Simplicity Manufacturing, Inc.
All Rights Reserved. Printed in USA.
TP 100-2014-05-AT-SMA
