8 Hand Controls Repair
Throttle Control Repair
8- 8

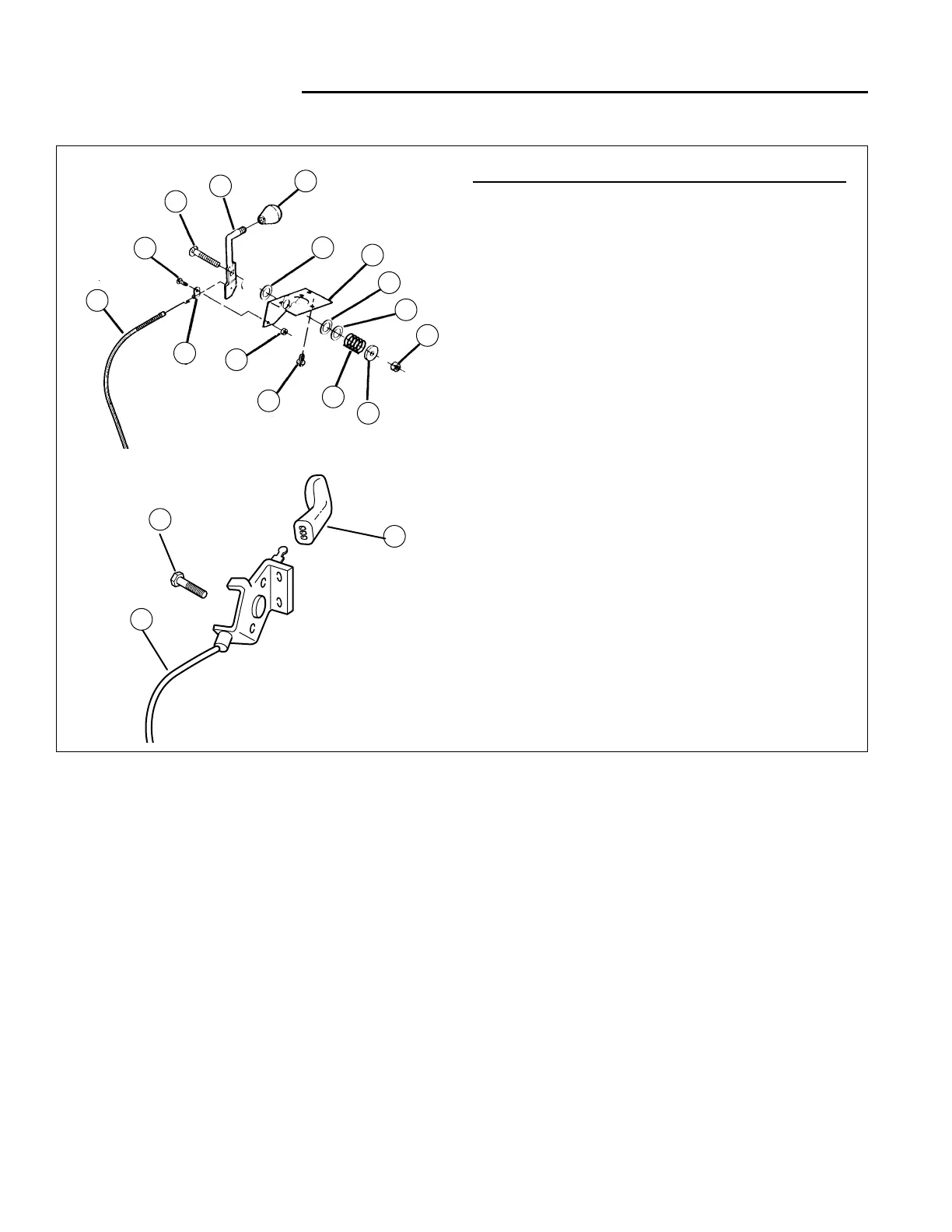

Figure 6. Throttle Control Assemblies
B
C
D
F
N
M
O
THROTTLE CONTROL ASSEMBLY PARTS
A. Throttle Cable
B. Truss head Screw #10-32 x 1/2"
C. Carriage Bolt 5/16-18 x 1-3/4"
D. Throttle Handle
E. Throttle Knob
F. Nylon Washer
G. Throttle Mounting Bracket
H. Washer
I. Esna Light Hex Locknut
J. Plain Washer 5/16"
K. Spring
L. Plastite Screw 1/4-20 x 5/8"
M. Nut Assembly #10-32
N. Bowden Wire Clip
O. Throttle Knob
P. Plastite Screw 1/4-10 x 1/2"
Q. Throttle & Cable Assembly
One Piece Throttle Assembly
(Later Models)
Throttle (Engine Speed Control) Assembly
G
E
A
F
H
I
L
P
Q
K
J
Multi-piece Throttle Assembly
(Early Models)
