Features & Controls
REF NAME FUNCTION
A Fuel Tank 2 gal. (7.6L) see-through tank for fuel level reading.
B Ignition Switch Starts and stops the engine.
C Battery 12 volt, 340 amp battery recharged by engine alternator
D Throttle/Choke Cable Controls engine speed and choke position. See engine manual for adjustment.
E PTO Switch (Electric Clutch) Controls electric clutch for attachments. Pull out to engage clutch; push in to disen-
gage.
F Air Filter See engine manual for maintenance instructions.
G Seat Switch Safety interlock switch to prevent travel or mowing without operator.
H Oil Drain Attach clear plastic tube to drain outlet and open valve to drain oil.
I Oil Fill/Dipstick Turn and remove to check or add oil. See engine manual for dipstick instruction.
Not Fuel Filter In-line filter for straining particles in fuel lines and fuel tank.
Shown

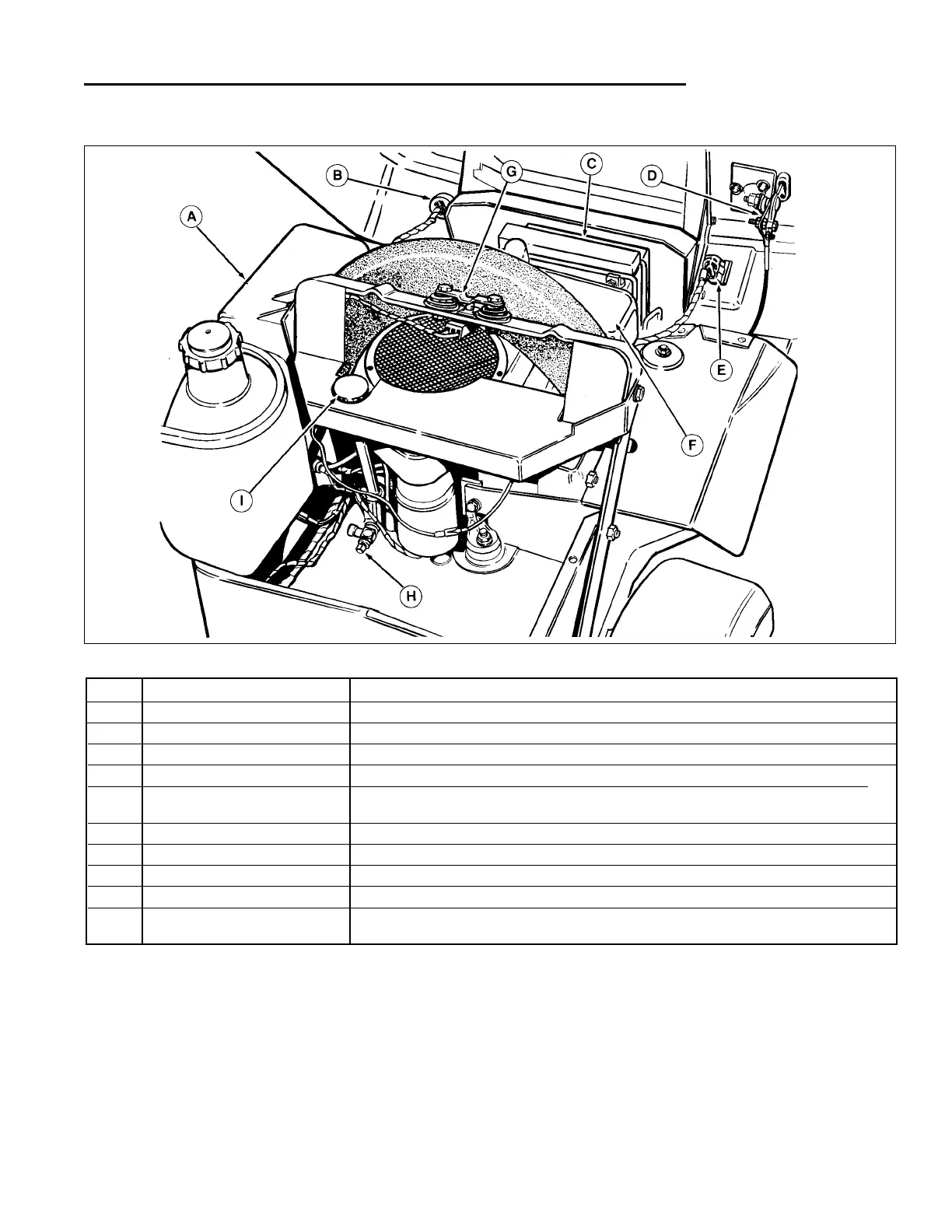

ENGINE COMPARTMENT
Figure 3. Engine Compartment
*2387
