Removing & Attaching
the Hitch & Blade
REMOVAL & INSTALLATION
Removing & Attaching Dozer Blade
1. Lower the blade. Position the lift so that it is not lifting
the blade or applying downward pressure.
2. Remove the hair pin clip and washer (D, Figure 16)
securing the angling control rod to the clevis.
Disconnect the angling control rod.
3. Remove the angling control rod from the
support arm (A).
4. Remove the pivot pin (C) connecting the blade and
pivot hitch. Remove the blade.
5. Lower the lift and remove the clip (B) securing the lift
rod to the push bar and lift rod.
6. Remove the hitch pin and safety clip (E) securing the
pivot hitch (F) to the sub-frame hitch. Remove the
pivot hitch.
7. Remove the sub-frame hitch (refer to sub-frame hitch
instructions.
8. Reinstall all pins for storage.
Install in reverse order of removal.

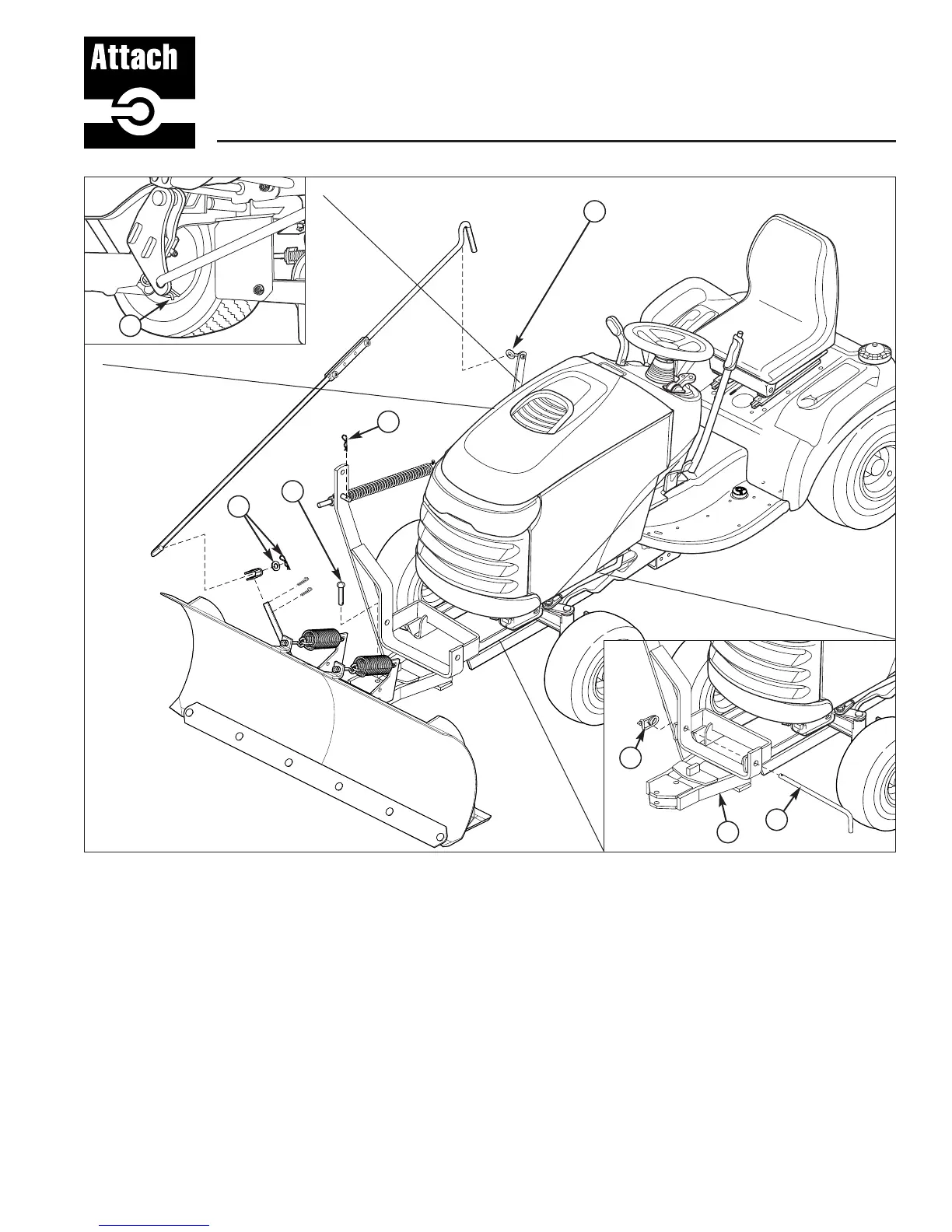

Figure 15. Dozer Removal
A. Support Arm C. Pivot Pin E. Hitch Pin & Safety Clip
B. Hair Pin Clip D. Hair Pin Clip & Washer F. Pivot Hitch
D
C
B
A
B
E
E
B
