Simplicity 1694286 User Manual

7
Sub-Frame Hitch Installation Instructions
Install Lift Rod
1. Slide the lift lever (A, Figure 9) onto the end of the
tractor lift shaft (B) under the right side footrest.
2. Use the tabs on the lift lever (A) to capture the tractor
lift arm. Secure in place with a clevis pin (D) and
safety clip (C).
3. Insert the rear of the lift rod (B, Figure 10) into the
bottom of the lift lever (A). Secure with a clip (C).
Install Reflectors
1. Install the two reflectors on the rear of the tractor seat
deck.

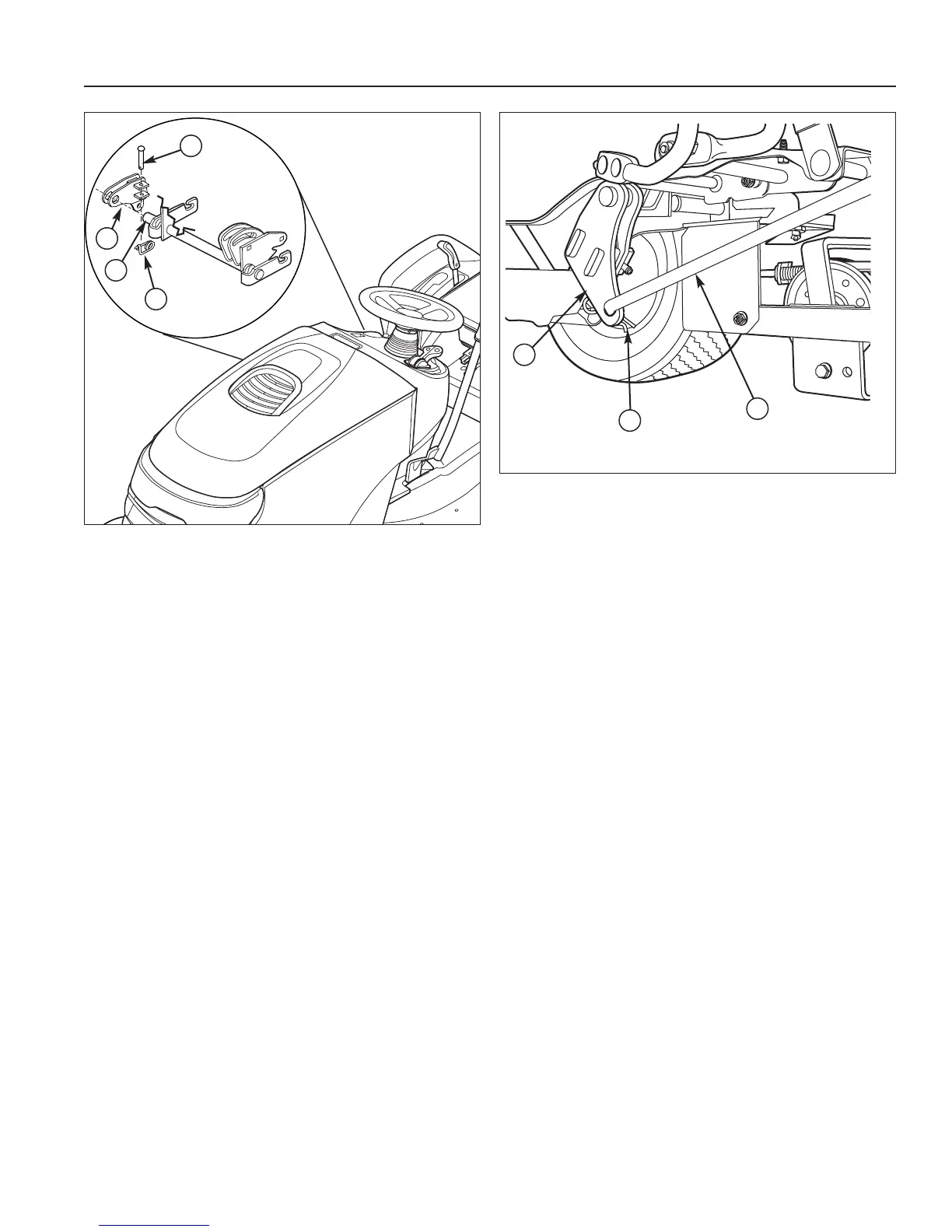

Figure 9. Install Lift Lever
A. Lift Lever
B. Lift Shaft
C. Safety Clip
D. Clevis Pin
Figure 10. Install Lift Rod - All Models
A. Lift Lever
B. Lift Rod
C. Clip
A
C
B
D
A
C
B
