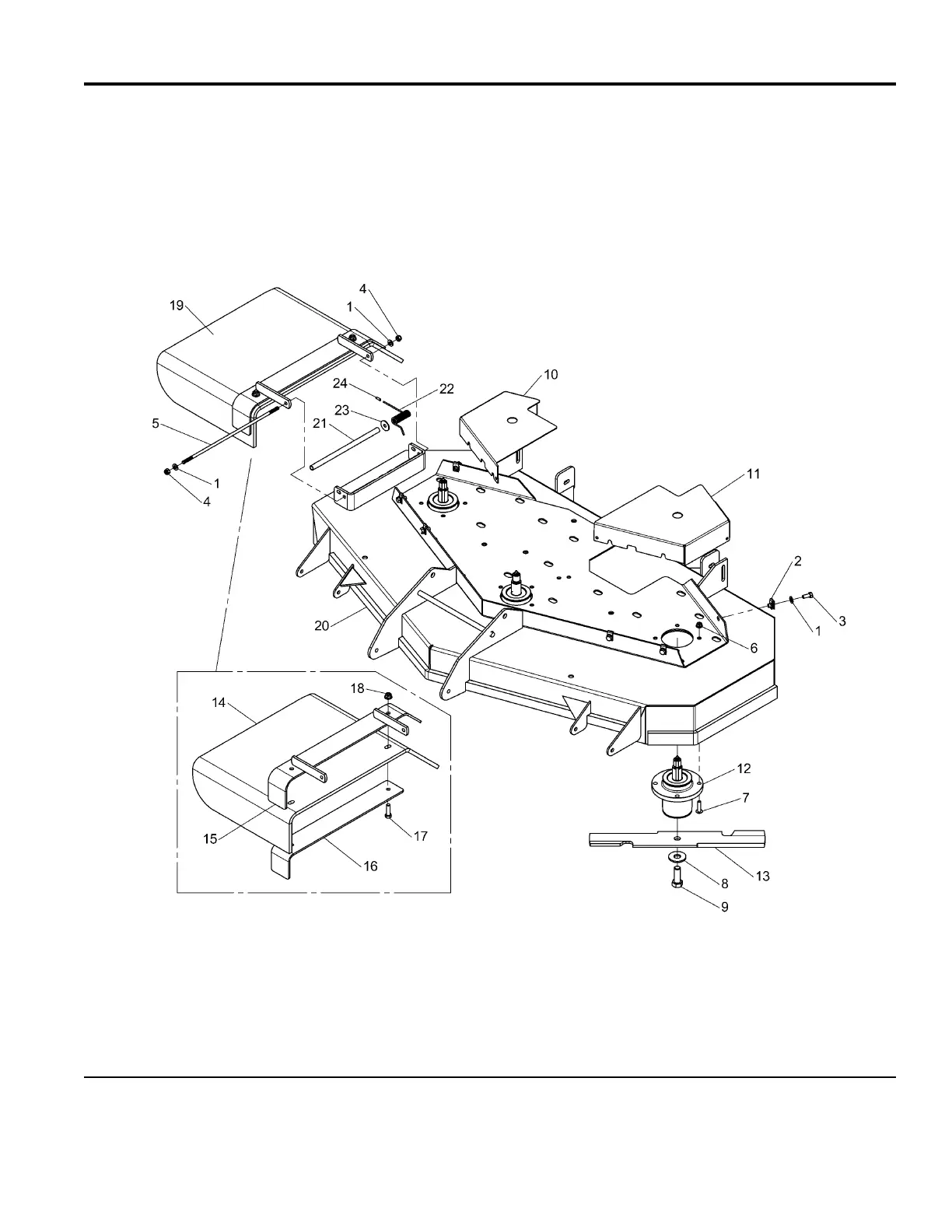

48" & 52" Mower Deck - Housing, Cover, Spindle & Blade
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1975hc0
The above parts group applies to the following Mfg. Nos.:
2005
46
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694770 - 48" Mower
1694771 - 52" Mower
TP 400-4197-00-CI-S
