26
www.simplicitymfg.com
Maintenance
Regular Maintenance
LUBRICATION
Lubricate the unit at the locations shown in Figures
16 through 19 as well as the following lubrication
points.
Grease:
• front caster wheel axles & yokes
• deck lift pivot blocks
• mower deck spindles
• mower deck idler arm
Use grease fittings when present. Disassemble parts
to apply grease to moving parts when grease fittings
are not installed.
Not all greases are compatible. Red Grease
(p/n 5022285) is recommended, automotive-type
high-temperature, lithium grease may be used when
this is not available.
Oil:
• control handle pivots
• seat plate pivots
• deck lift pivots
• discharge chute hinge
Generally, all moving metal parts should be oiled
where contact is made with other parts. Keep oil and
grease off belts and pulleys. Remember to wipe
fittings and surfaces clean both before and after
lubrication.
Lubricating the Front Casters
NOTE: Front casters should be lubricated annually.
1. Remove the 1/4-28 (A, Figure 19) bolt screwed
into the front caster and install a 1/4-28 grease
fitting
2. Grease the front casters.
3. Remove the 1/4-28 bolt and reinstall the 1/4-28
grease fitting.
4. Repeat the process for the other side of the
machine.

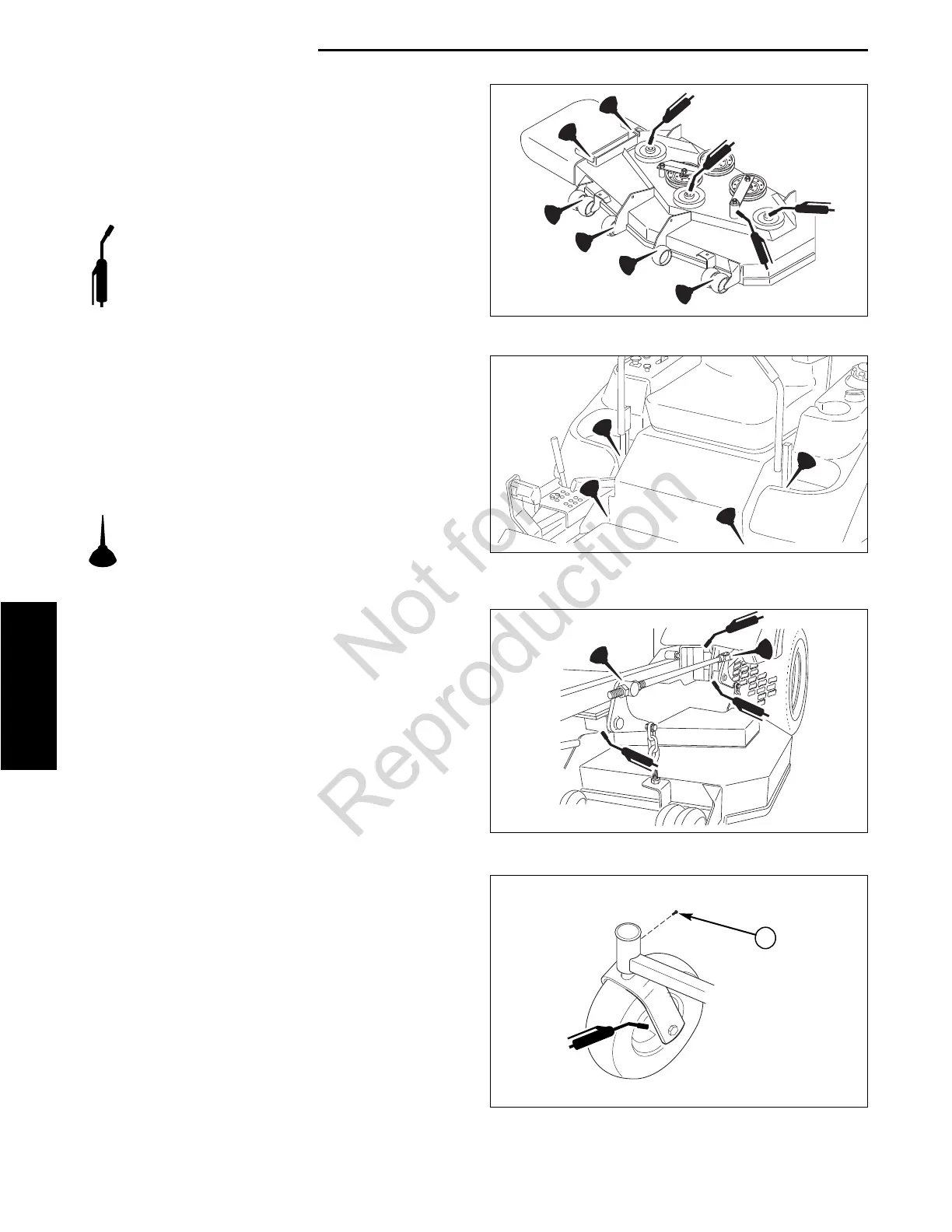

Figure 16. Deck Lubrication
Figure 18. Deck Lift Linkage Pivots
Figure 19. Front Caster & Wheel
A. 1/4-28 Bolt
Figure 17. Control Handle Pivots & Seat Plate
Pivots
A
