Front-to-Back Leveling

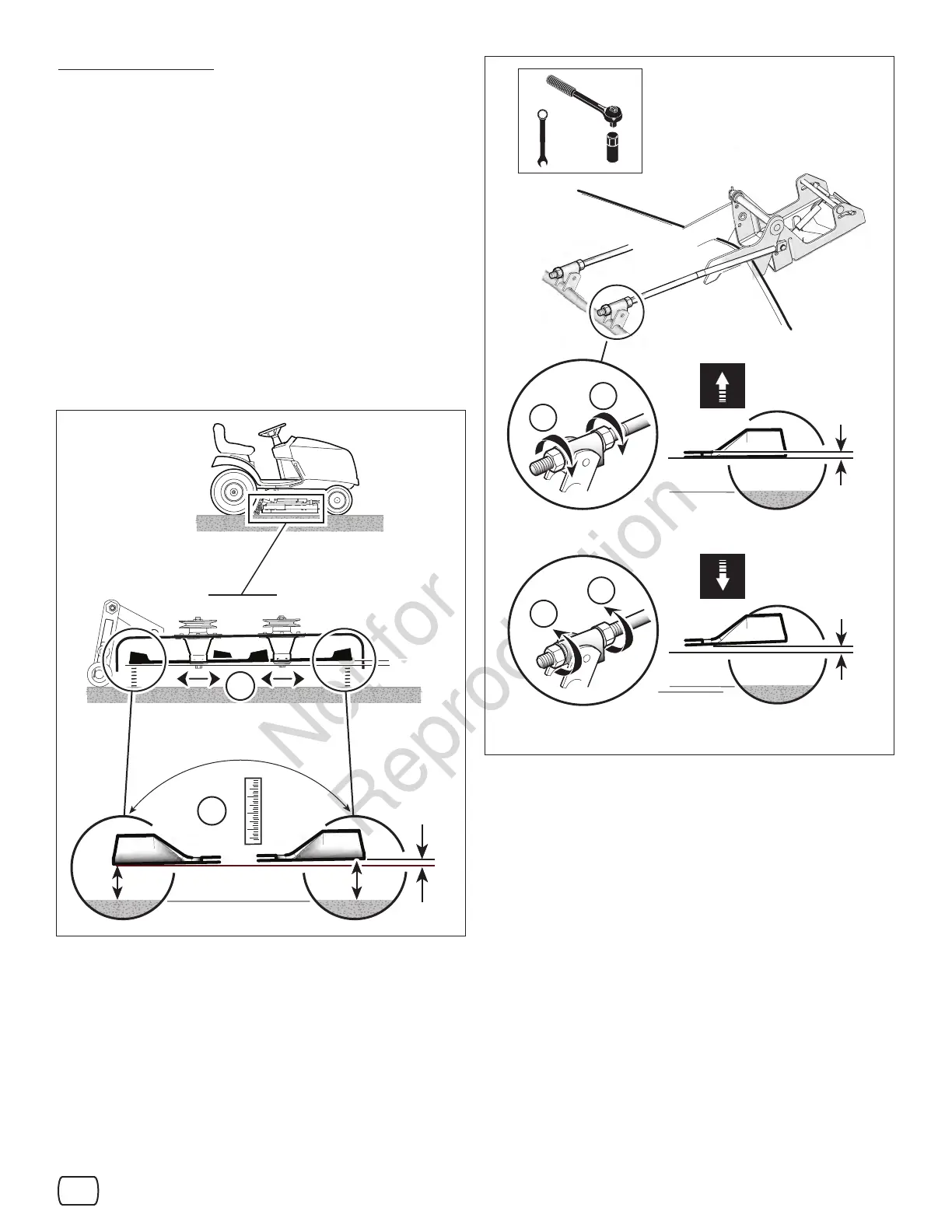

1. Arrange the blades so they face front-to-back (A, Figure
21).
2. Measure the distance from the ground to the front tip of
the center blade, and from the ground to rear tips of left-
hand and right-hand blades.
Front tip of the center blade should be 1/4” (6 mm)
higher than rear tips of left-hand and right-hand blades
(B). If not, adjustment is needed.
3. To raise front of mower deck, turn front nut (A, Figure
22) and rear nut (B) to shorten rod. To lower front
of mower deck, turn rear nut (C) and front nut (D) to
lengthen rod.
4. Re-check the blade measurement then tighten the front
nut against the bracket to secure.
1/4˝
(6 mm)
A
B
Figure 21
90 lb-ft (122.4 Nm)
A
B
1/4˝
(6 mm)
15/16
90 lb-ft (122.4 Nm)
D
C
1/4˝
(6 mm)
Figure 22
