Replacing the Vacuum Bag
NOTE: Unplug the vacuum cleaner
from the electrical outlet before
changing the bag.

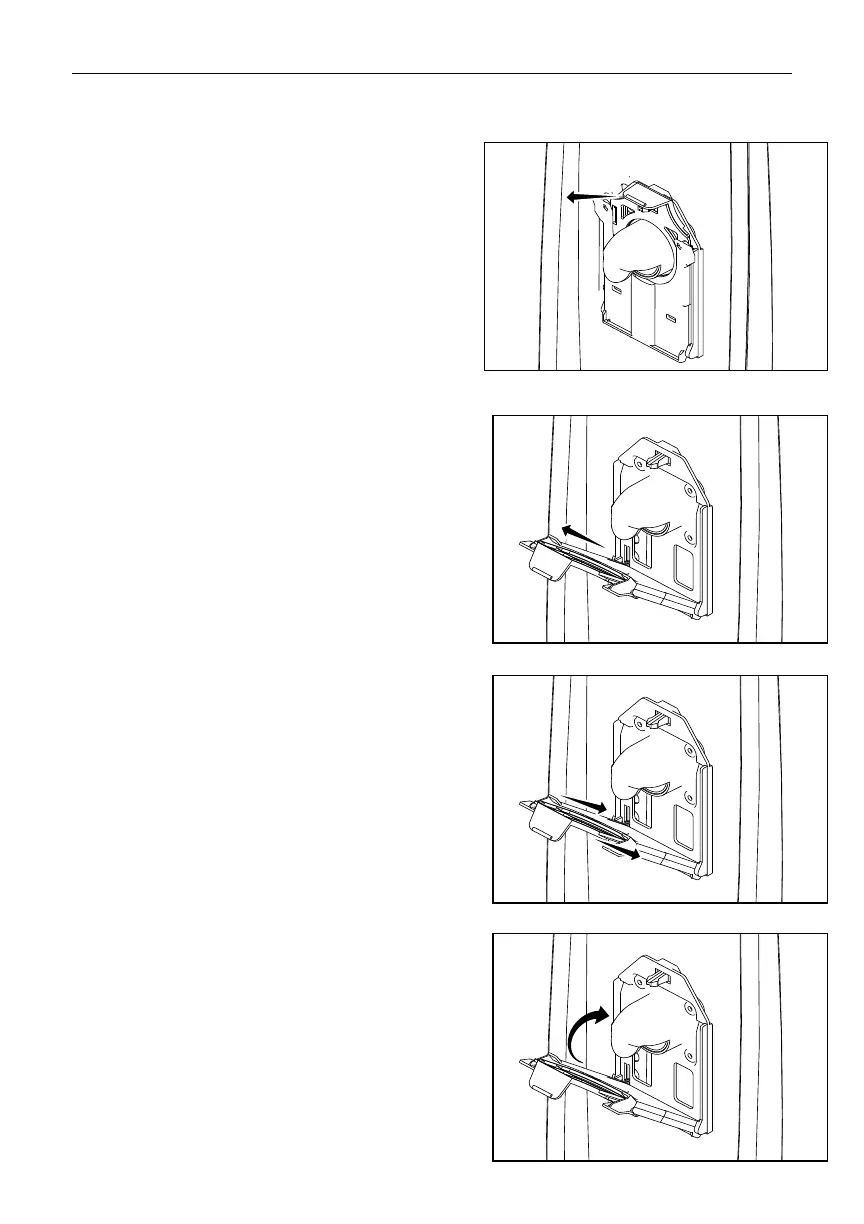

• Unzip the bag compartment.
• Remove the used vacuum bag by
pulling the green bag collar tab away
from the vacuum (Fig. 1). Slide the
used bag out of the bag holder which
automatically seals the bag opening
(Fig. 2). Discard the used bag.
• To install a new bag, slide the bottom
of the green bag collar into the bag
holder until it “snaps” into place
(Fig. 3).
• Push the top of the bag collar
upward until the collar “snaps” into
place on the vacuum (Fig. 4).
• Tuck the bag corners into the bag
compartment then zip the bag
compartment closed.
