6
TP-400-2086-03-LL-SMA
© Copyright 1997 Simplicity Manufacturing, Inc. All Rights Reserved.
The above parts group applies to the following Mfg. Nos.:
1692784 Landlord 16HP Hydro
1692788 Landlord 18HP Hydro
1692790 Landlord 16HP Hydro - Exp
1692794 Landlord 18HP Hydro - Exp
1692837 1716H, 16HP Hydro
1692841 1718H, 18HP Hydro
1692843 2718H, 18HP Hydro
1693008 Landlord, 16HP Hydro
1693010 Landlord, 16HP Hydro - Exp
1693016 Landlord 18HP Hydro
1693018 Landlord 18HP Hydro - Exp

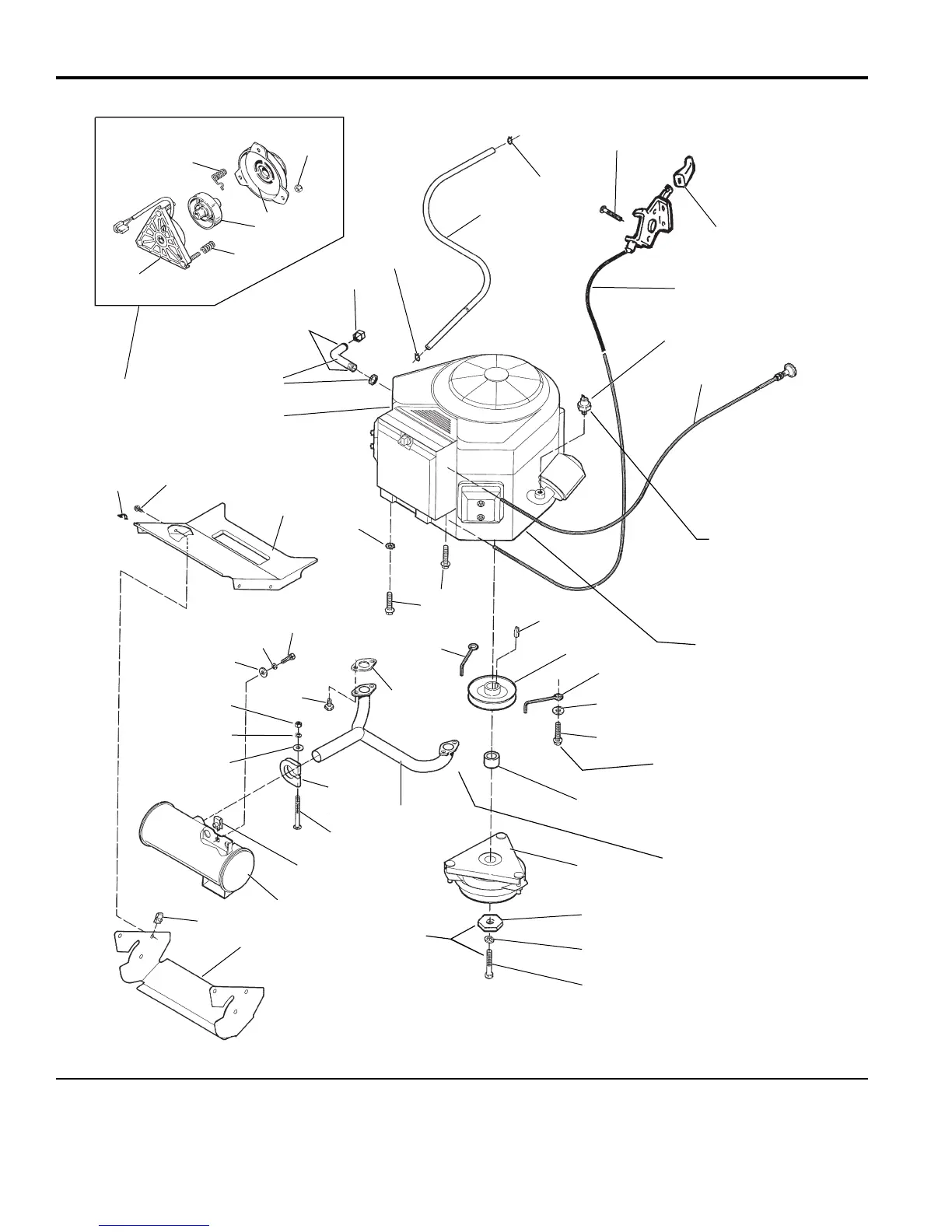

Engine & Electric Clutch - 16HP & 18HP Briggs & Stratton
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-LL42085A
Hold hex washer
and torque to
45-50 ft. lbs.
Torque engine
mounting screws to
40 ft. lbs. (4 places).
Do NOT apply sealant to
oil pressure switch.
Remove Teflon from
port on filter base.
Torque to 75-100 in. lbs.
Apply anti-sieze
lubricant to crankshaft
Remove screws (4) installed
finger-tight and shipped with
engine. Lubricate with
anti-sieze. Mount exhaust
manifold (Ref. 24) and torque
screws to 175-200 ft. lbs.
Remove tape from exhaust.
Coat threads
with sealant
20
1
2
4
3
4
4
6
7
5
9
8
10
11
12
13
14
15
16
17
15
18
19
1
21
22
23
24
25
26
27
28
29
30
31
32
33
31
32
34
35
36
37
19
38
40 39
8
3
6
19
Electric Clutch Assembly
