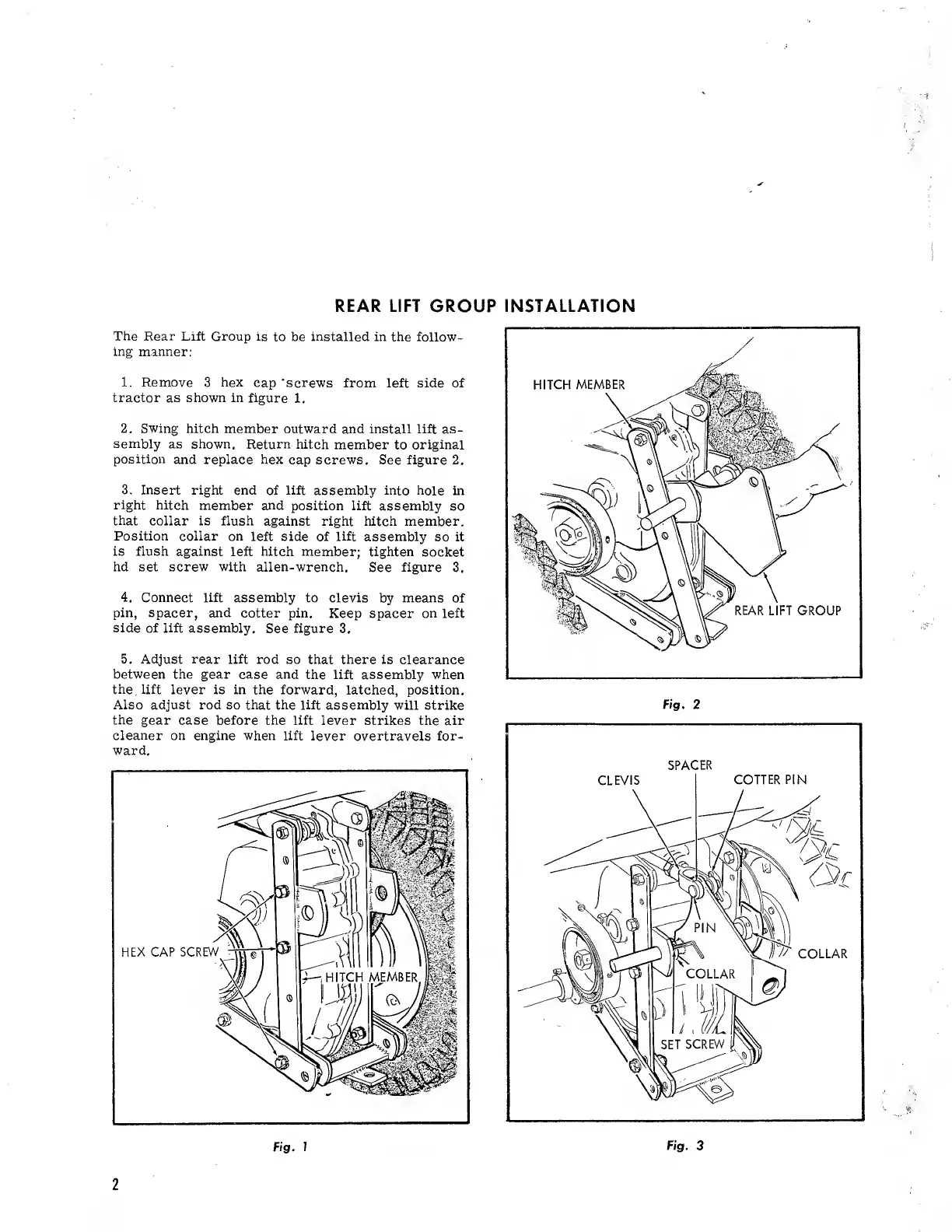

REAR LIFT GROUP INSTALLATION
The Rear Lift Group is to be installed in the follow¬
ing manner:
1. Remove 3 hex cap 'screws from left side of
tractor as shown in figure 1.
2. Swing hitch member outward and install lift as¬
sembly as shown. Return hitch member to original
position and replace hex cap screws. See figure 2.
3. Insert right end of lift assembly into hole in
right hitch member and position lift assembly so
that collar is flush against right hitch member.
Position collar on left side of lift assembly so it
is flush against left hitch member; tighten socket
hd set screw with alien-wrench. See figure 3.
4. Connect lift assembly to clevis by means of
pin, spacer, and cotter pin. Keep spacer on left
side of lift assembly. See figure 3.
5. Adjust rear lift rod so that there is clearance
between the gear case and the lift assembly when
the. lift lever is in the forward, latched, position.
Also adjust rod so that the lift assembly will strike
the gear case before the lift lever strikes the air
cleaner on engine when lift lever overtravels for¬
ward.
Fig. 2
2
