Simplicity Landlord 314 - Page 3

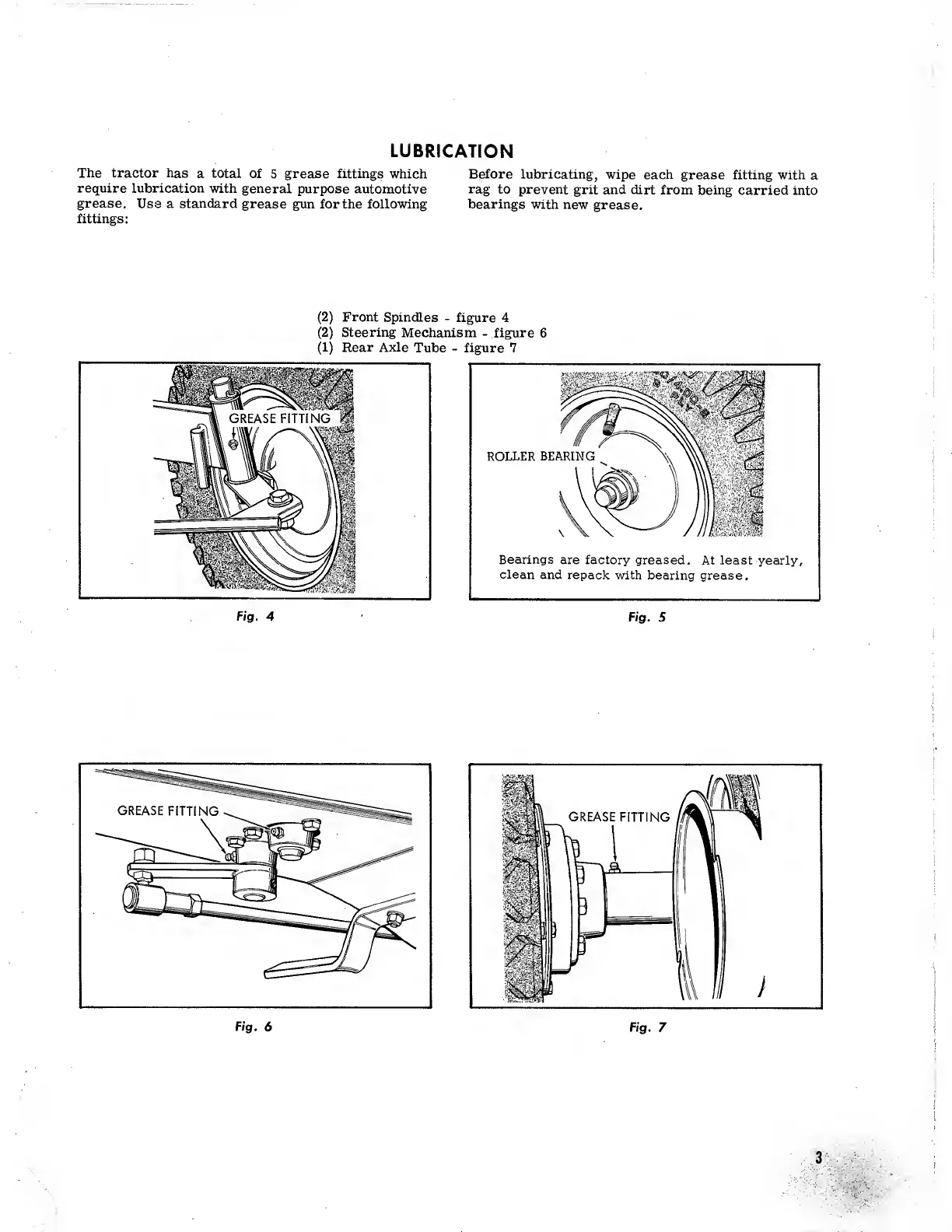

LUBRICATION
The tractor has a total of 5 grease fittings which Before lubricating, wipe each grease fitting with a
require lubrication with general purpose automotive rag to prevent grit and dirt from being carried into
grease. Use a standard grease gun for the following bearings with new grease,
fittings:
(2) Front Spindles - figure 4
(2) Steering Mechanism - figure 6
(1) Rear Axle Tube - figure 7
Fig. 6 Fig. 7
3
