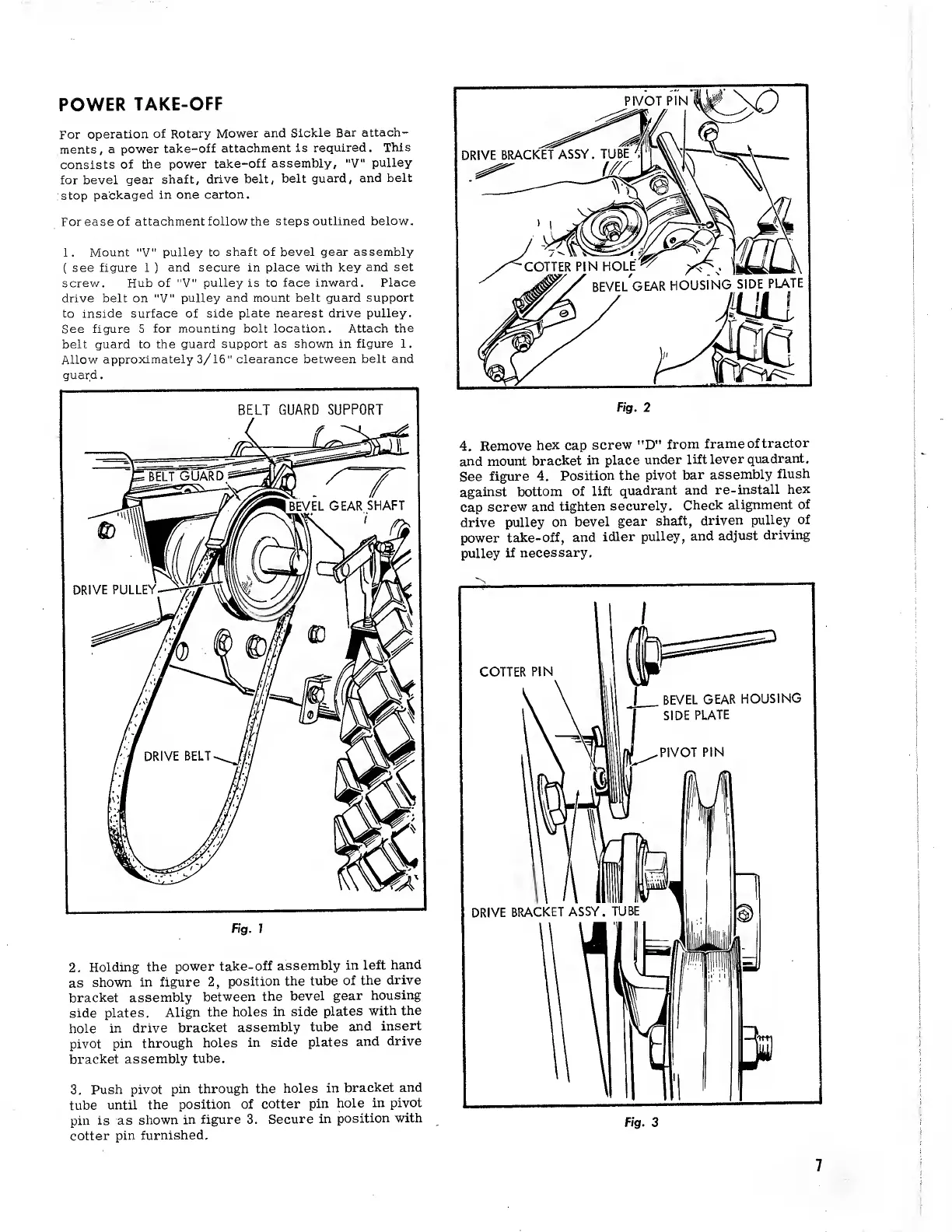

POWER TAKE-OFF
For operation of Rotary Mower and Sickle Bar attach¬
ments, a power take-off attachment is required. This
consists of the power take-off assembly, "V" pulley
for bevel gear shaft, drive belt, belt guard, and belt
:stop packaged in one carton.
For ease of attachment follow the steps outlined below.
1. M ount "V" pulley to shaft of bevel gear assembly
( see figure 1 ) and secure in place with key and set
screw. Hub of "V" pulley is to face inward. Place
drive belt on "V" pulley and mount belt guard support
to inside surface of side plate nearest drive pulley.
See figure 5 for mounting bolt location. Attach the
belt guard to the guard support as shown in figure 1.
Allow approximately 3/16" clearance between belt and
guard.
2. Holding the power take-off assembly in left hand
as shown in figure 2, position the tube of the drive
bracket assembly between the bevel gear housing
side plates. Align the holes in side plates with the
hole in drive bracket assembly tube and insert
pivot pin through holes in side plates and drive
bracket assembly tube.
3. Push pivot pin through the holes in bracket and
tube until the position of cotter pin hole in pivot
pin is as shown in figure 3. Secure in position with
cotter pin furnished.
4. R emove hex cap screw "D" from frame of tractor
and mount bracket in place under lift lever quadrant.
See figure 4. Position the pivot bar assembly flush
against bottom of lift quadrant and re-install hex
cap screw and tighten securely. Check alignment of
drive pulley on bevel gear shaft, driven pulley of
power take-off, and idler pulley, and adjust driving
pulley if necessary.
7
