6903-002002 <05>
10

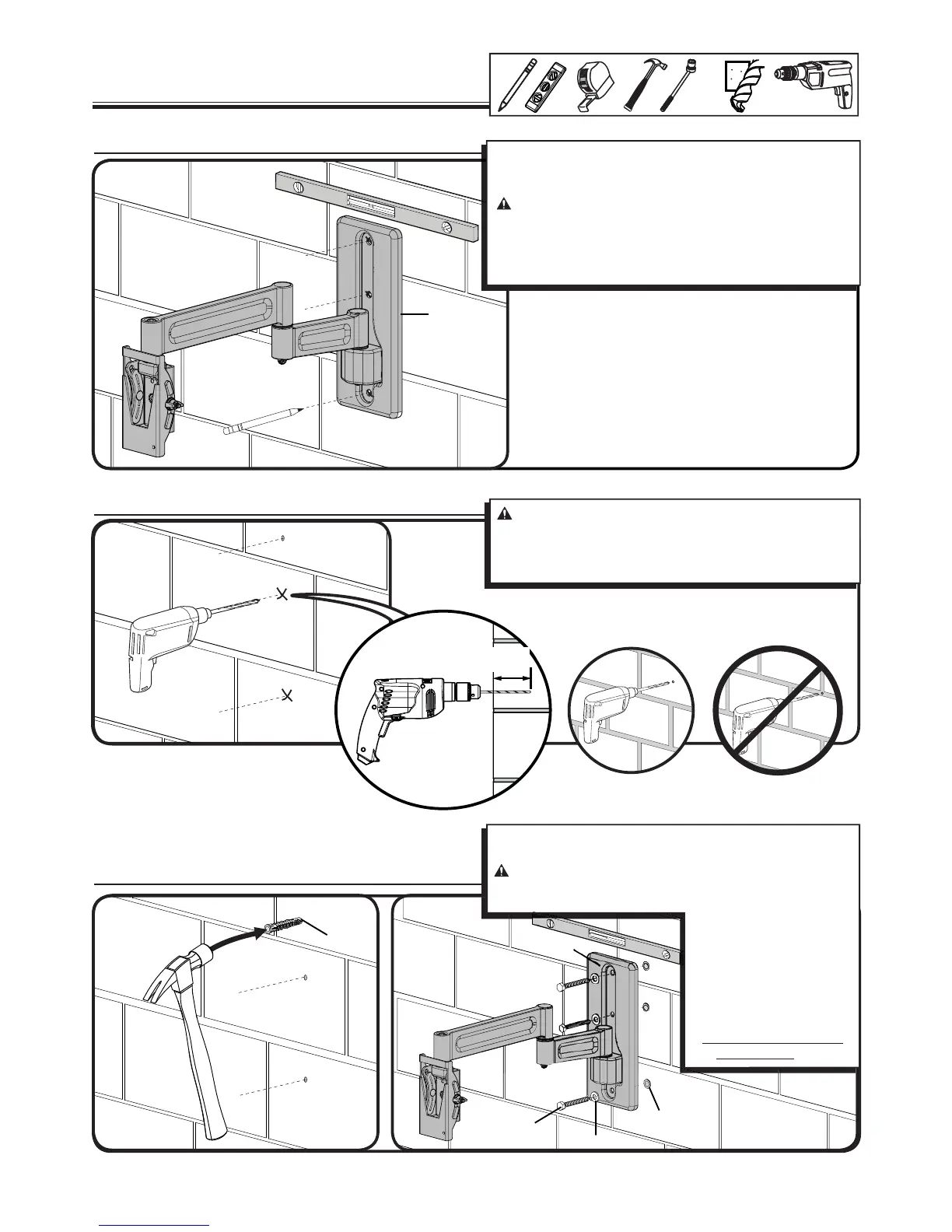

2 Mount the Wall Plate
Solid concrete or concrete block
[08]
[09]
[03]
2-1 Mark the wall
2-2 Drill pilot holes
CAUTION:
Avoid potential injuries or property damage!
Ù Pilot holes MUST be drilled to a depth of 75 mm (3 in.) using
a 10 mm (3/8 in.) diameter drill bit.
Ù Never drill into the mortar between blocks.
2-3 Insert anchors and lag bolts
[09]
Insert lag bolt anchors [09]. Then insert lag bolts [07] through
the washers [08] wall plate [03] and into the anchors.
CAUTION:
Improper use could reduce the holding power of
the lag bolt. To avoid potential injuries or property damage:
ÙBe sure the anchors [09]
are seated ush with
the concrete surface.
ÙTighten the lag bolts [07]
only until the washers
[08] are pulled rmly
against the wall plate
[03].
ÙDO NOT over-tighten the
lag
bolts [07].
13 mm
(1/2 in.)
10 mm
(3/8 in.)
[07]
For assistance in determining wall plate location, see Mount
Wizard at simplicityav.com
Level the wall plate [03] and mark the hole locations.
CAUTION:
Avoid potential injuries or property damage!
Ù Mount the wall plate [03] directly onto the concrete surface.
Ù Minimum solid concrete thickness: 203 mm (8 in.)
Ù Minimum concrete block size: 203 x 203 x 406 mm (8 x
8 x
16 in.)
[03]
75mm
3 in.
