6903-002002 <05>
6

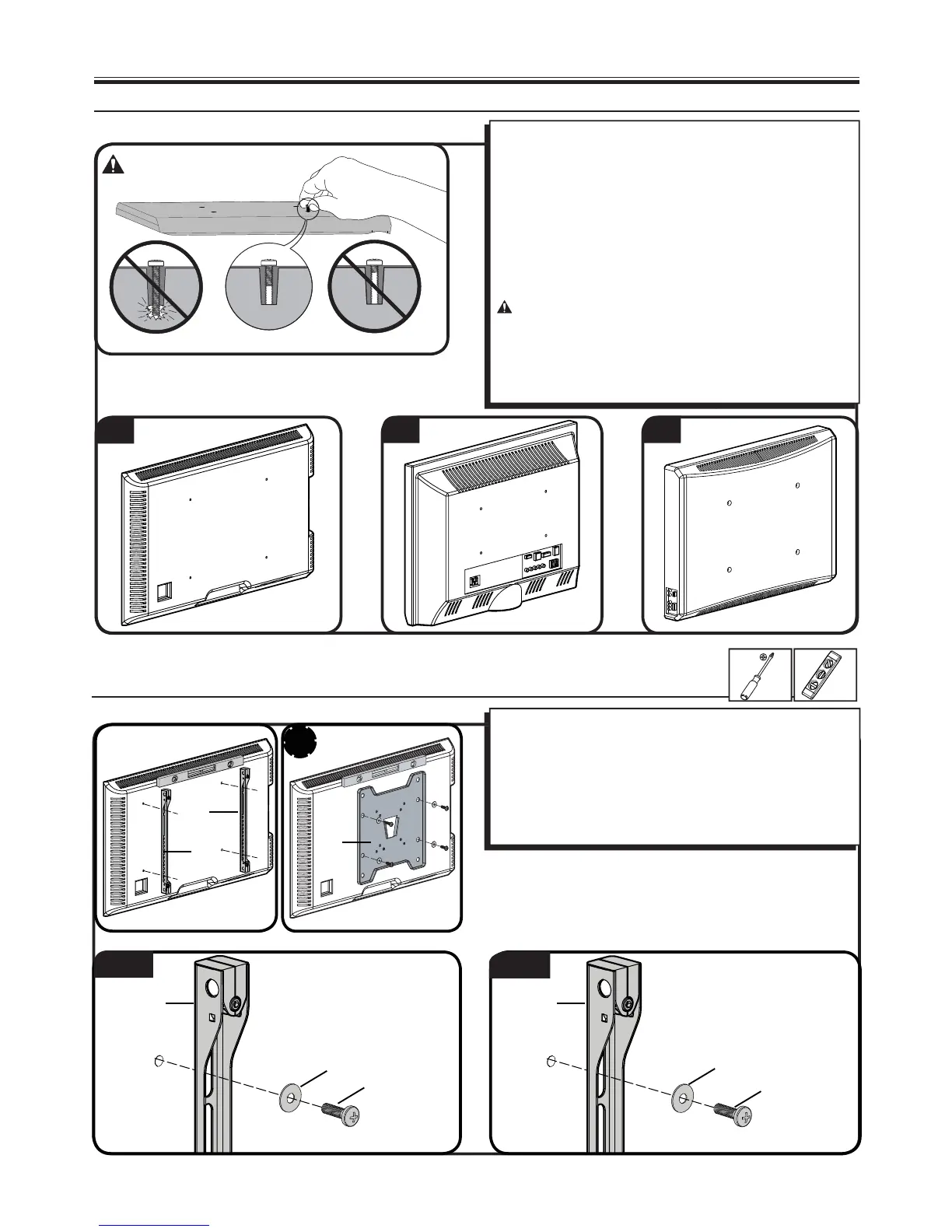

1 Select TV Hardware and Mount TV Interface
Your TV type will help you determine which hardware
con guration to use. Match your type of TV to the suggested
hardware con guration on the next page.
A. Installation option without spacers (TVs with at backs)
B. Installation option using 14 mm spacers (TVs with irregular
backs)
C. Installation option using 24 mm spacers (For TVs with irregular
backs that require more length than the 14 mm spacer provides.)
Hand thread screws into the threaded inserts on the back of your
TV to determine the correct screw diameter (M4, M6, or M8).
CAUTION: Avoid potential personal injuries and property
damage! Verify that there are adequate threads to secure the
brackets to the monitor. If you encounter resistance, stop
immediately and contact customer service. Use the shortest
screw and spacer combination to accommodate your needs.
Using hardware that is too long may damage your TV.
B C
1-1 Select the hardware diameter and length
A
1-2 Attach interface to a TV with a at back
[12, 14]
[18]
In step 1-1 if you selected the:
M4 x 12 mm [10] use the M4 washer [17].
M6 x 14 mm [12] use the M6/M8 washer [18].
M8 x 16 mm [14] use the M6/M8 washer [18].
Con rm that the brackets are level on the back of the TV.
If you require additional space for cables, recesses, or
protrusions, choose one of the following con gurations.
[10]
[17]
M4
M6/M8
[02] [02]
