Simplicity SMF2 - Select TV Interface

6903-002002 <05>
7
1
[02]

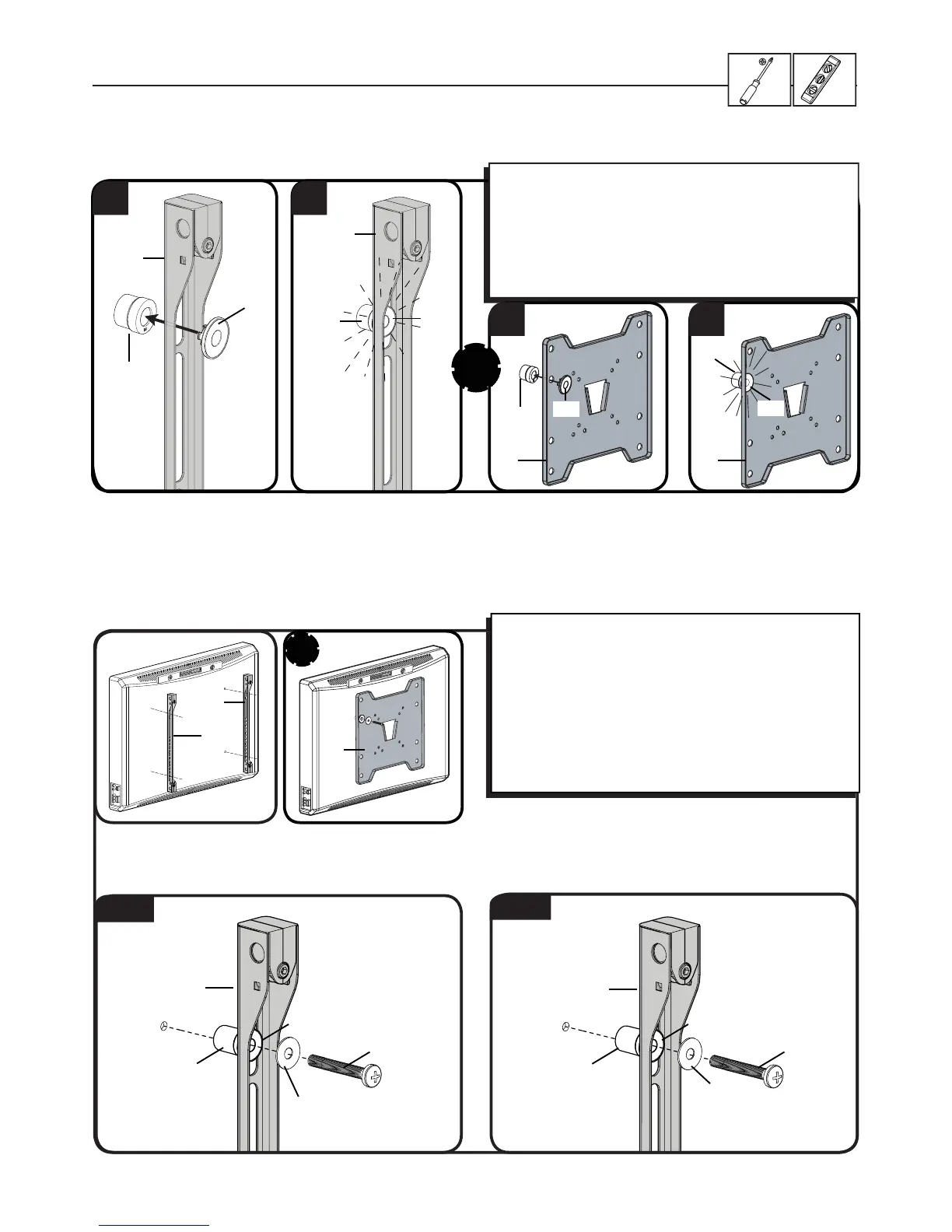

1-2 Attach interface to a TV with an irregular back
2
[19, 20]
Attach shoulder washers [16] and spacers to the brackets [02]
or [04].
1. Push the shoulder washer [16] through the appropriate
openings of the brackets [02] or [04].
2. Snap shoulder washer [16] into the spacer [19] or [20] you
selected in step 1-1.
If you need more room for cables, recesses, or protrusions, use
the 24 mm spacer [20].
[16]
In step 1-1 if you selected the:
M4 x 30 mm [11] use the M4 washer [17] and the 14 mm spacer
[19].
M6 x 40 mm [13] or M8 x 40 mm bolt [15], use the M6/M8
washer [18] and the 24 mm spacer [20].
Con rm that the brackets are level on the back of the TV.
Standard con gurations are shown. For special applications,
or if you are uncertain about your hardware selection, contact
Customer Service.
M4
M6/M8
[20]
[16] [16]
[17]
[18]
[13, 15]
[16]
[02]
[19, 20]
[02]
[19]
[11]
[02]
[02]
OR
OR
1 2
[02]
[19, 20]
[16]
[19,20]
[16]
[04] [04]
[04]
