ASSEMBLY
STEP 13
18/23

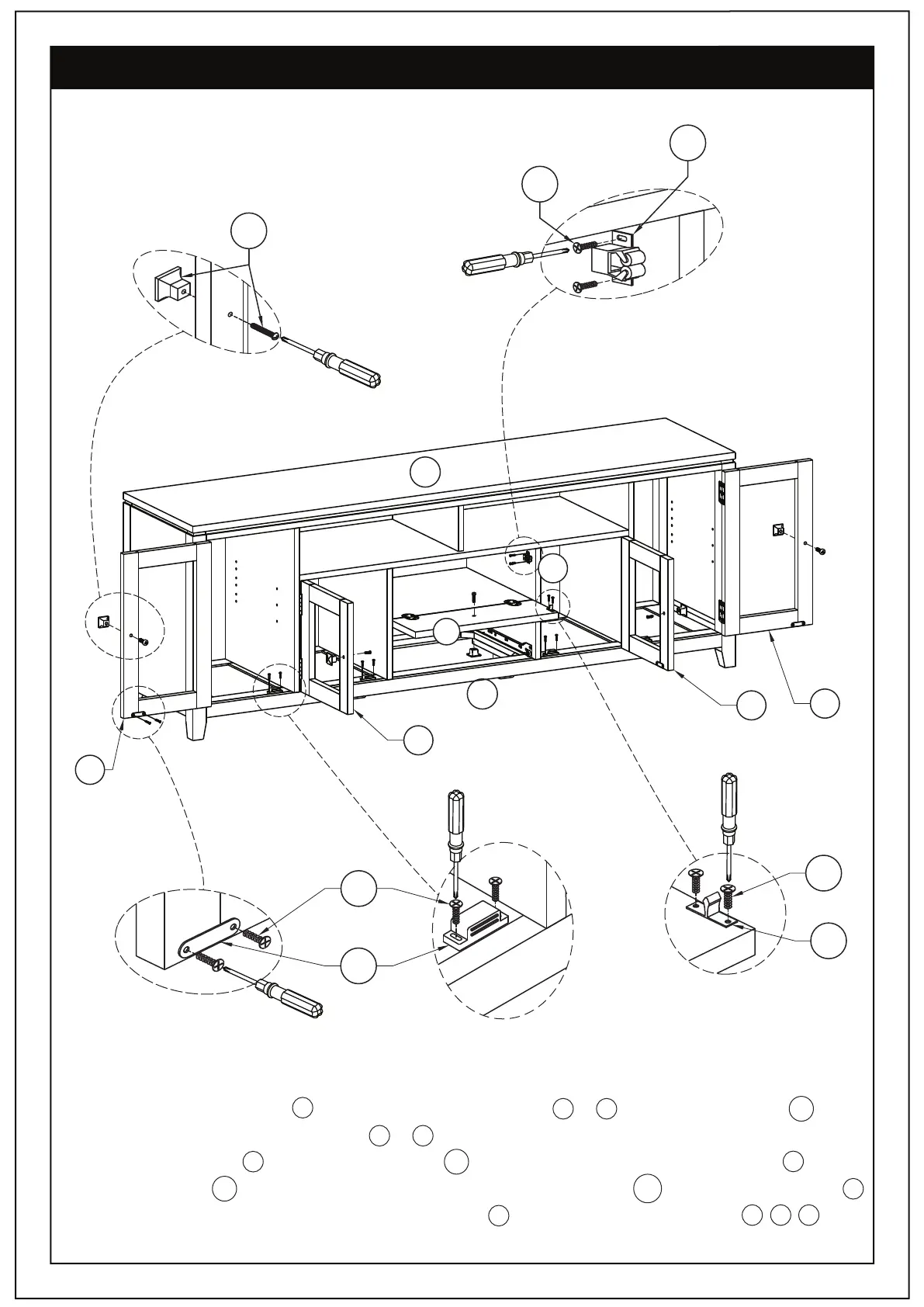

1. Attach Magnet Plates 7 to bottom corner of Doors J & K using Phillip Screw 10
into pre-drilled holes on Doors J & K .
2. Attach Magnets 7 using Phillip Screws 10 into pre-drilled holes Bottom Shelf C .
3. Attach Latch 13 into pre-drilled hole on Right Middle Divider GR and Flip Down Door N .
4. Use a Phillips screwdriver to attach Handles 4 into guide holes on Doors J , K , N .
10
7
9
13
9
13
4
A
J
K
K
J
C
N
GR
MODEL # AXCRCOS72-MAH
