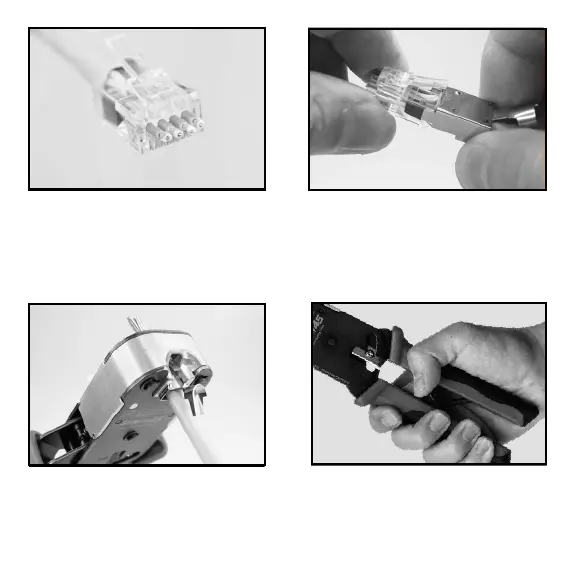

STEP 11
Insert the loaded plug into the Simply45
Heavy Duty RJ45 Crimp Tool (S45-C100/
S45-C101). Make sure to completely
insert the plug into the crimper socket.
STEP 12
Compress the crimper handles all the
way down with one swift and firm
motion until the handles release.
STEP 10
Verify that the wires are still correctly aligned to the pattern. Slide the S45-1755P metal
shell over the plug body as shown above. Press-In on the bottom of the plug as you
attach the shell. This will allow the plug to snap into the metal shell. The drain wire
should remain straight back against the cable jacket and come out of the back of the
metal shell and extend pass the external ground arm.
