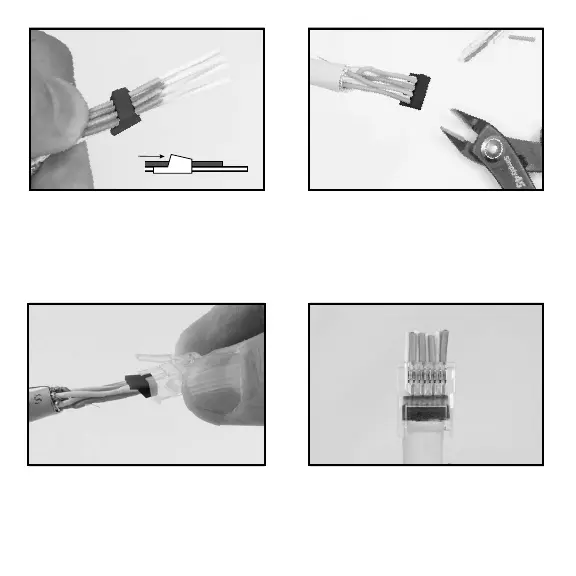

STEP 7
Then insert the 4 solid wires.
STEP 9
Insert the cable with the BarS45 into the plug (fig 1). Then push the wires to come out through
the front the plug as shown above (fig. 2). The S45-1755P plug is designed to accommodate
insertion of large diameter cables up to 8.0mm (0.315”). Work the cable jacket into the plug until
fully inserted. Looking from underneath the plug, the cable jacket should meet or come close to
the horizontal line (fig. 2). Make sure the drain wire remains straight down the cable jacket.
STEP 8
Next, using the S45-801 Flush Cutter,
trim the wires flush to the load bar but
leave at least 1”(2.5cm) of wire.
g. 2g. 1
