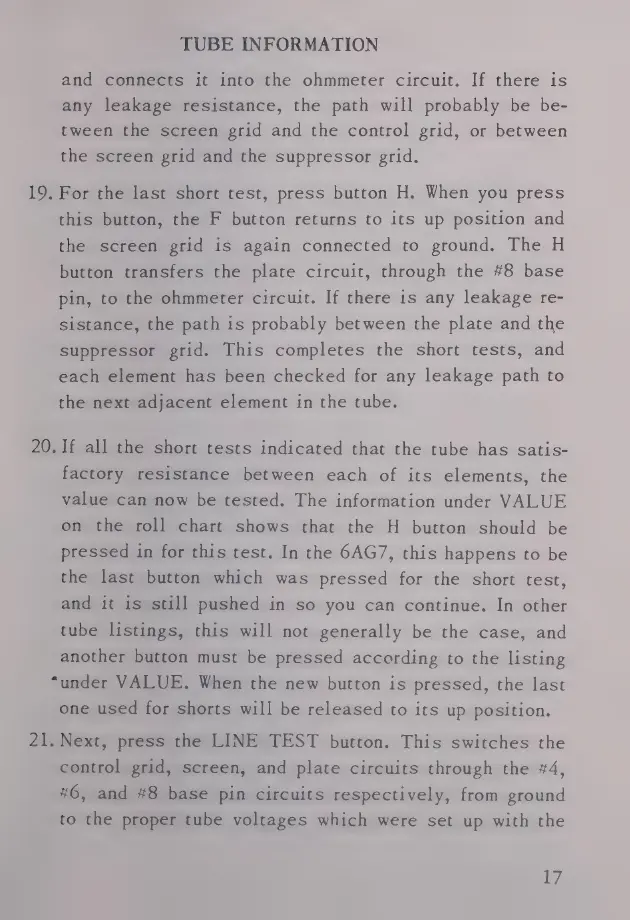

TUBE
INFORMATION
and
connects
it
into
the
ohmmeter
circuit.
If
there
is
any
leakage
resistance,
the
path
will
probably
be
be-
tween
the
screen
grid
and
the
control
grid,
or
between
the
screen
grid
and
the
suppressor
grid.
19.
For
the
last
short
test,
press
button
H.
When
you
press
this
button,
the
F
button
returns
to
its
up
position
and
the
screen
grid
is
again
connected
to
ground.
The
H
button
transfers
the
plate
circuit,
through
the
#8
base
pin,
to
the
ohmmeter
circuit.
If
there
is
any
leakage
re-
sistance,
the
path
is
probably
between
the
plate
and
the
suppressor
grid.
This
completes
the
short
tests,
and
each
element
has
been
checked
for
any
leakage
path
to
the
next
adjacent
element
in
the
tube.
20.If
all
the
short
tests
indicated
that
the
tube
has
satis-
factory
resistance
between
each
of
its
elements,
the
value
can
now
be
tested.
The
information
under
VALUE
on
the
roll
chart
shows
that
the
H
button
should
be
pressed
in
for
this
test.
In
the
6AG7,
this
happens
to
be
the
last
button
which
was
pressed
for
the
short
test,
and
it
is
still
pushed
in
so
you
can
continue.
In
other
tube
listings,
this
will
not
generally
be
the
case,
and
another
button
must
be
pressed
according
to
the
listing
“under
VALUE.
When
the
new
button
is
pressed,
the
last
one
used
for
shorts
will
be
released
to
its
up
position.
21.
Next,
press
the
LINE
TEST
button.
This
switches
the
control
grid,
screen,
and
plate
circuits
through
the
#4,
#6,
and
#8
base
pin
circuits
respectively,
from
ground
to
the
proper
tube
voltages
which
were
set
up
with
the
kz
