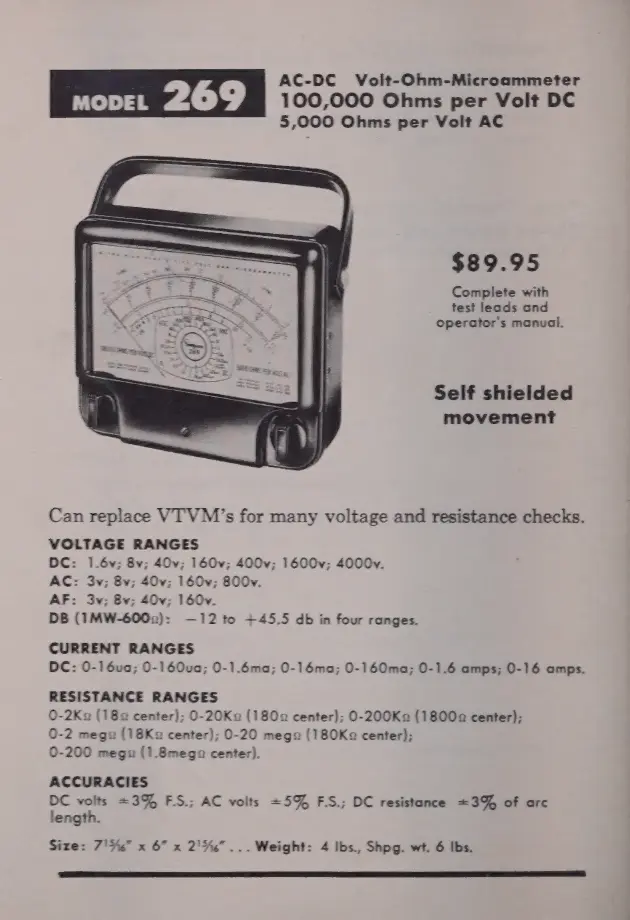

AC-DC Volt-Ohm-Microammeter
MODEL 269 100,000 Ohms per Volt DC
5,000 Ohms per Volt AC
$89.95
Complete with
test leads and
operator's manual.
Self shielded
movement
Can replace VTVM's for many voltage and resistance checks.
VOLTAGE RANGES
DC: 1.6v; 8v; 40v; 160v; 400v; 1600v; 4000v.
AC: 3v; 8v; 40v; 160v; 800v.
AF: 3v; 8v; 40v; 160v.
DB (1MW-6000): —12 to +45.5 db in four ranges.
CURRENT RANGES
DC: 0-16u0; 0-160uc; 0-1.6ma; 0-16ma; 0-160ma; 0-1.6 amps; 0-16 amps.
RESISTANCE RANGES
0-2Ka (182 center); 0-20Ka (1802 center); 0-200Ko (18002 center);
0-2 mega (18K2 center); 0-20 mega (180Ka center);
0-200 mege (1.8mego center).
ACCURACIES
DC volts =3% F.S.; AC volts =5% F.S.; DC resistance +3% of arc
length.
Size: 71%" x 6" x 2!%e"... Weight: 4 lbs., Shpg. wt. 6 Ibs.
