Conventional Underbench & Separate Grill Ovens
This section talks about different parts of your wall oven. The main ones you need to know are shown
on the following diagrams

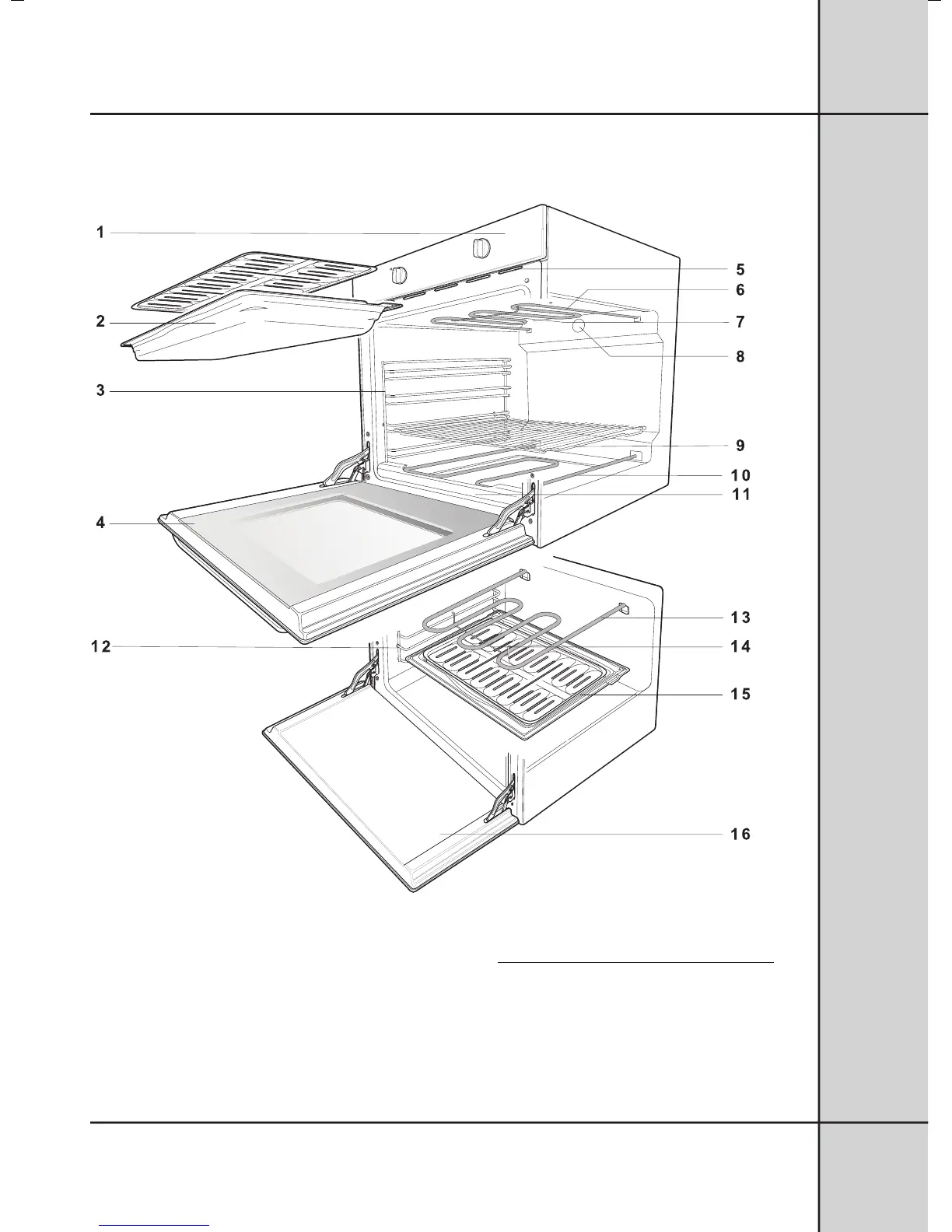

UNDERSTANDING YOUR OVEN
1. Control Panel
2. Full Width Grill Dish & “Smokeless” Grill Insert
(underbench models only)
3. Grill Dish & Shelf Support
(removable - see page 23).
4. Oven Door (removable - see page 22).
5. Cooling Fan Vents
6. Upper Element (underbench models only)
7. Upper Element Support Clip (underbench models only)
8. Oven Light
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
9. Shelf
10. Lower Element
11. Element shield
12. Grill Dish Support
(removable see page 23)
13. Grill Element
14. Grill Element Support Clip
15. Full Width Grill Dish & “Smokeless
Grill Insert”
16. Grill Door (removable see page 22)
