13 - ENG
NOTICE: DO NOT overtighten the pressure control knob, if overtightened the knob
COULD break and result in immediate loss of water pressure and costly repairs to
the unit.
HOW TO USE SPRAY WAND
The nozzles for the spray wand are stored in the nozzle holder on the panel assembly.
Colors on the panel identify nozzle location and spray pattern. Refer to the following
chart to choose the correct nozzle for the job to be performed.

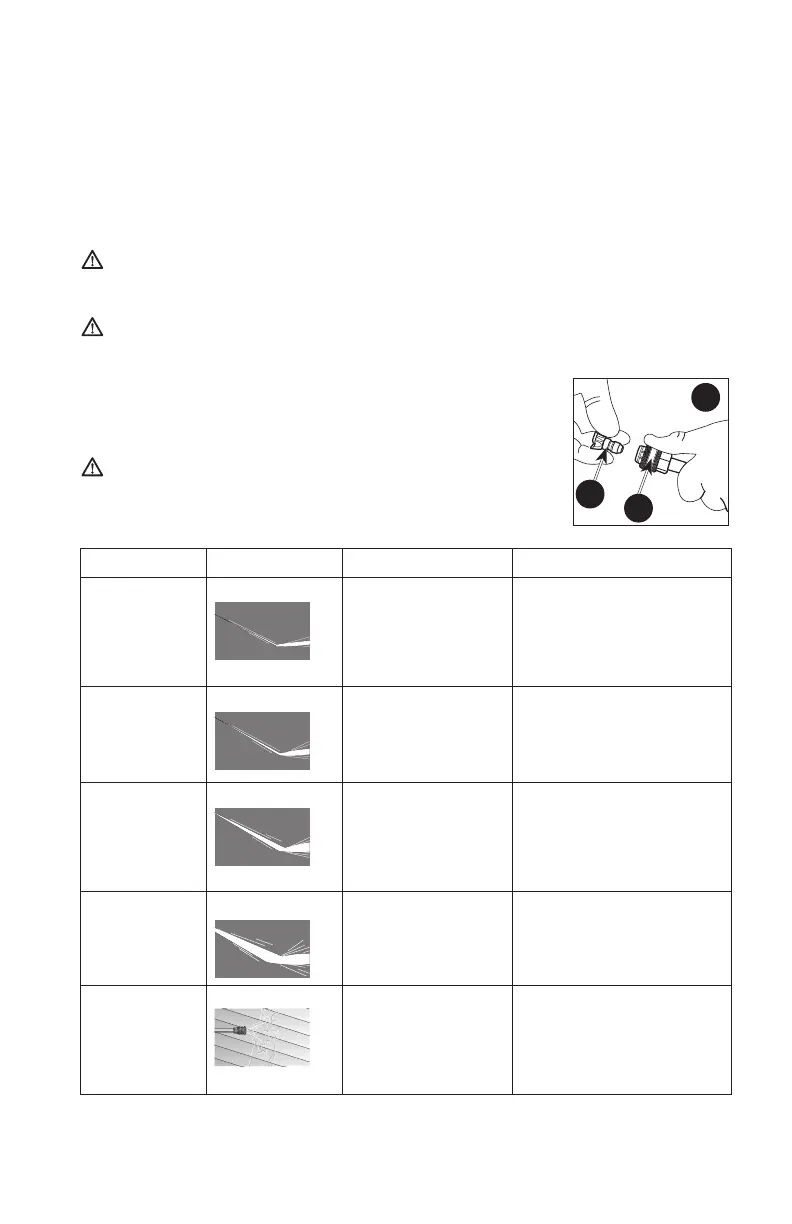

CHANGING NOZZLES ON SPRAY WAND (FIG. 7)
DANGER: Risk of fluid injection. Do not direct discharge stream toward
persons, unprotected skin, eyes or any pets or animals. Serious injury will
occur.
WARNING: Flying objects could cause risk of serious injury. Do not
attempt to change nozzles while pressure washer is running. Turn engine off
before changing nozzles.
1. Pull quick-connect coupler (E) back and insert nozzle (K).
K
E
7
2. Release quick-connect coupler and twist nozzle to
make sure it is secure in coupler.
WARNING: Flying object could cause risk of serious
injury. Ensure nozzle is completely inserted in quick-
connect socket and quick-connect collar is fully engaged
(forward) before squeezing gun trigger.
NOZZLE COLOR SPRAY PATTERN USES SURFACES*
Red
0˚
powerful pinpoint
for spot cleaning
of hard, unpainted
surfaces or for
high reach areas
unpainted metal
or concrete;
DO NOT use on wood
Yellow
15˚
intense cleaning
of unpainted
hard surfaces
grills, driveways, concrete
or brick walkways,
unpainted brick or stucco
Green
25˚
standard cleaning
nozzle for most
applications
yard tools, sidewalks,
lawn furniture, unpainted
siding, stucco, gutters
and eaves, concrete,
brick surfaces
White
40˚
cleaning of
painted or delicate
surfaces
auto/RV, marine, wood,
painted brick and stucco,
vinyl, painted siding
Black
low pressure
applies cleaning
solutions
Low pressure
spray is safe on all
surfaces. Always verify
compatibility of cleaning
solution prior to use.
