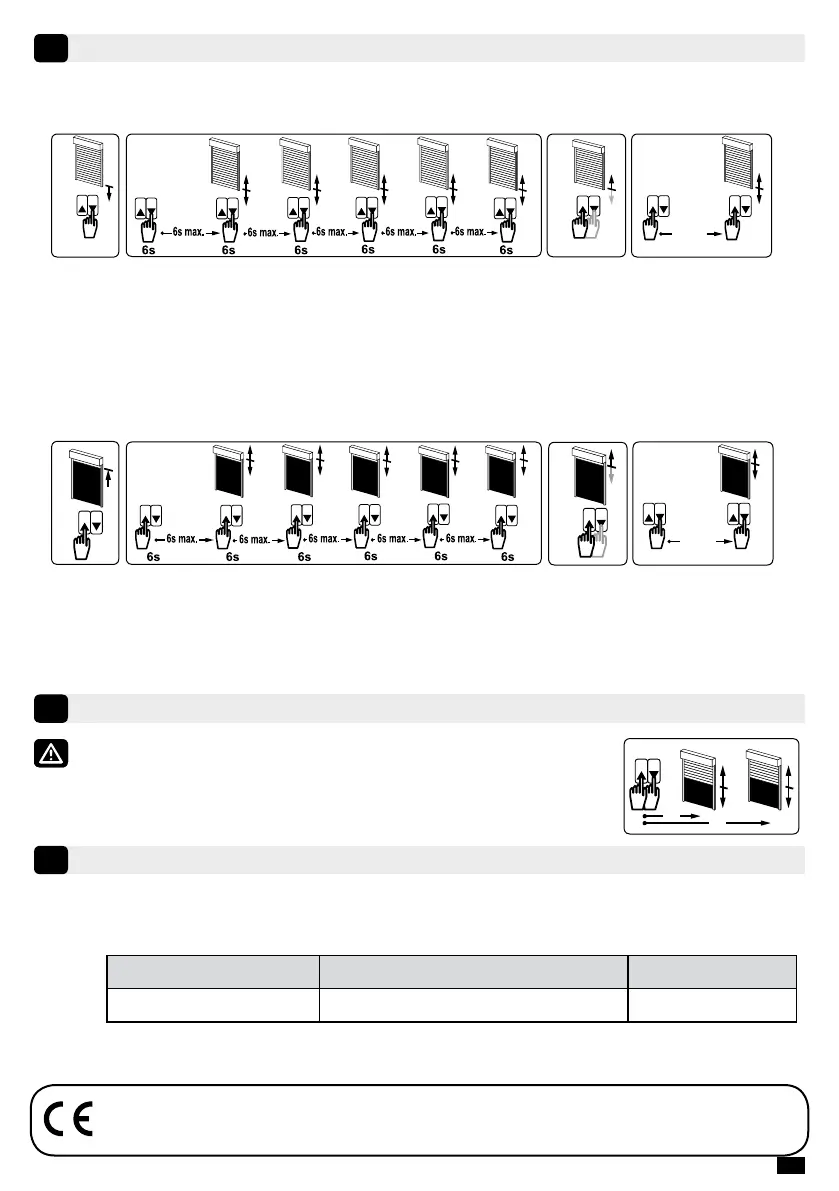

4.2. Re-adjustment of up end limit:
In case of an automatic adjustment (with buttom slat stopper) the re-adjustment will also be automatic (every 60 cycles).
In this case, do not proceed to the following operations.
1. Position the motor on the up end limit set in §2.6 using the ▲ key.
2. Press the ▲ key 6 times, each time for 6 seconds. After the 2
nd
, 3
rd
, 4
th
, 5
th
, and 6
th
press the motor rotates briey one way,
then the other*.
3. Position the motor on the new desired high position using the ▲ and ▼ keys.
4. To conrm the new End Limit position, press ▼ twice, once for 0,5 s without the motor rotation and the second time for at
least 3 seconds, so the motor rotates briey one way and then in the other*.
Cancelling the end limits adjustment
5
- Connect the motor to the settings switch (§2.1)
- Press the ▲ and ▼ keys simultaneously, for at least 7 seconds. The motor rotates
one way, then the other*, then a few seconds later rotates in both directions*.
After this operation, the motor returns to its factory settings; repeat the operations from
chapter 2.
3/3
Operation and maintenance
6
- This drive is maintenance-free.
- Press the ▲ button on the control point to raise the motorised product.
- Press the ▼ button on the control point to lower the motorised product.
Tips and recommendations for use:
If the motorised product still does not work, contact a drive and home automation professional.
SIMU SAS, F-70103 GRAY as manufacturer hereby declares that the drive covered by these instructions when marked for input voltage 230V~50Hz and used
as intended according to these instructions, is in compliance with the essential requirements of the applicable European Directives and in particular of the
Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. The full text of the EU declaration of conformity is available at www.simu.com.
Emmanuel CARMIER, general director, GRAY, 11/2016
PROBLEMS POSSIBLE CAUSES SOLUTIONS
The motorised product does not operate. The overheating protection on the drive has been activated. Wait for the drive to cool down.
4.1. Re-adjustment of down end limit:
In case of an automatic adjustment (with rigid link) the re-adjustment will also be automatic (every 60 cycles). In this case,
do not proceed to the following operations.
1. Position the motor on the down end limit set in §2.5 using the ▼ key.
2. Press the ▼ key 6 times, each time for 6 seconds. After the 2
nd
, 3
rd
, 4
th
, 5
th
, and 6
th
press the motor rotates briey one way,
then the other*.
3. Position the motor on the new desired lower position using the ▲ and ▼ keys.
4. To conrm the new End Limit position, press ▲ twice, once for 0,5 second without the motor rotating and the second time
for at least 3 seconds, so the motor rotates briey one way, then the other*.
Re-adjustment of end limits
4
