SINAMICS G120
Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)
Supplementary system components
Intelligent Operator Panel IOP
4/103
Siemens D 11.1 · 2009
4
■
Selection and ordering data
■
Accessories
■
Integration
Using the IOP with the frequency inverters

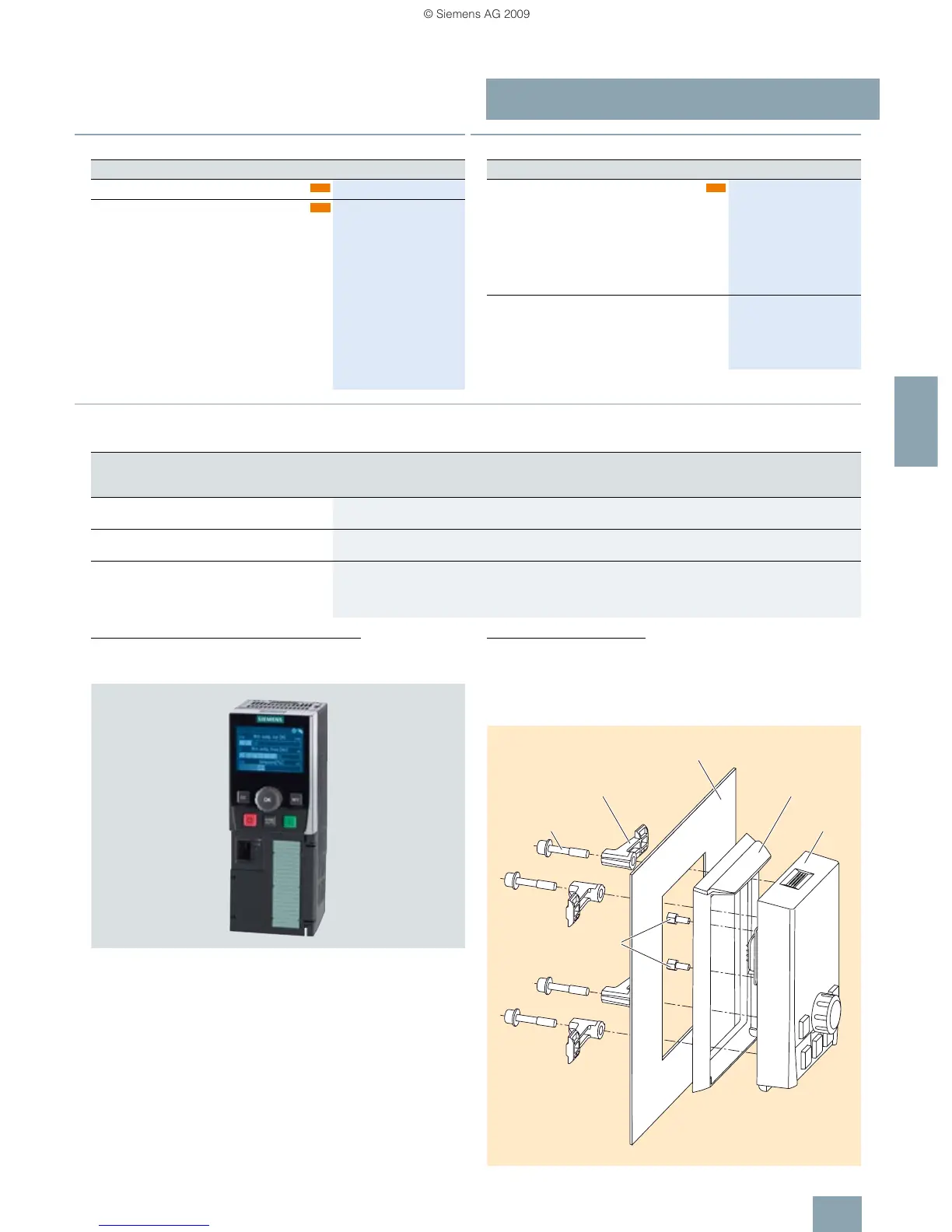

Mounting the IOP on a CU230P-2 Control Unit
The IOP can be directly plugged onto the CU230P-2 Control
Unit.
CU230P-2 Control Unit with plugged on IOP
Mounting the IOP in a door
Using the optionally available door mounting kit, the IOP can be
simply mounted in a control cabinet door with just a few manual
operations (presently only available in conjunction with the
SINAMICS G120 and CU230P-2 Control Unit). Degree of protec-
tion IP54/UL Type 12 is achieved when mounting in a door.
Designation Order No.
Intelligent Operator Panel IOP 6SL3255-0AA00-4JA0
IOP Handheld
For use with SINAMICS G120,
SINAMICS G110D, SINAMICS G120D,
SIMATIC ET 200S FC or
SIMATIC ET 200pro FC
Included in the scope of delivery:
•IOP
• Handheld housing
• Rechargeable batteries (4 × AA)
• Charging unit (international)
• RS232 connecting cable (3 m long,
can only be used for SINAMICS G120
and SIMATIC ET 200S FC)
• USB cable (1 m long)
6SL3255-0AA00-4HA0
new
new
Designation Order No.
IOP Door Mounting Kit
IP54 degree of protection for mounting
the IOP in control cabinet doors with
sheet steel thicknesses of 1 … 3 mm
Included in the scope of delivery:
•Seal
• Mounting material
• Connecting cable (5 m long)
6SL3256-0AP00-0JA0
RS232 interface cable
With optical interface to connect the
SINAMICS G110D, SINAMICS G120D or
SIMATIC ET 200pro FC inverters to the
IOP Handheld (2.5 m long)
3RK1922-2BP00
new
IOP SINAMICS G120
with CU230P-2 Control Unit
SINAMICS G120
with CU240E or CU240S
Control Unit
SINAMICS G110D and
SINAMICS G120D
Plugging the IOP onto the inverter
(power supply from the Control Unit)
✓ – –
IOP door mounting with door mounting kit
(power supply from the Control Unit)
✓ – –
Mobile use of the IOP Handheld
(supplied from rechargeable batteries)
✓ ✓
PC Inverter Connection Kit
required,
6SL3255-0AA00-2AA1
✓
RS232 interface cable with
optical interface required,
3RK1922-2BP00
G_D011_EN_00207
Screws
Door mounting bracket Seal
Door panel
D-type retaining screws
IOP
