SINAMICS G120
Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)
PM260 Power Modules –
11 kW to 55 kW (15 hp to 75 hp)
4/72
Siemens D 11.1 · 2009
4
■

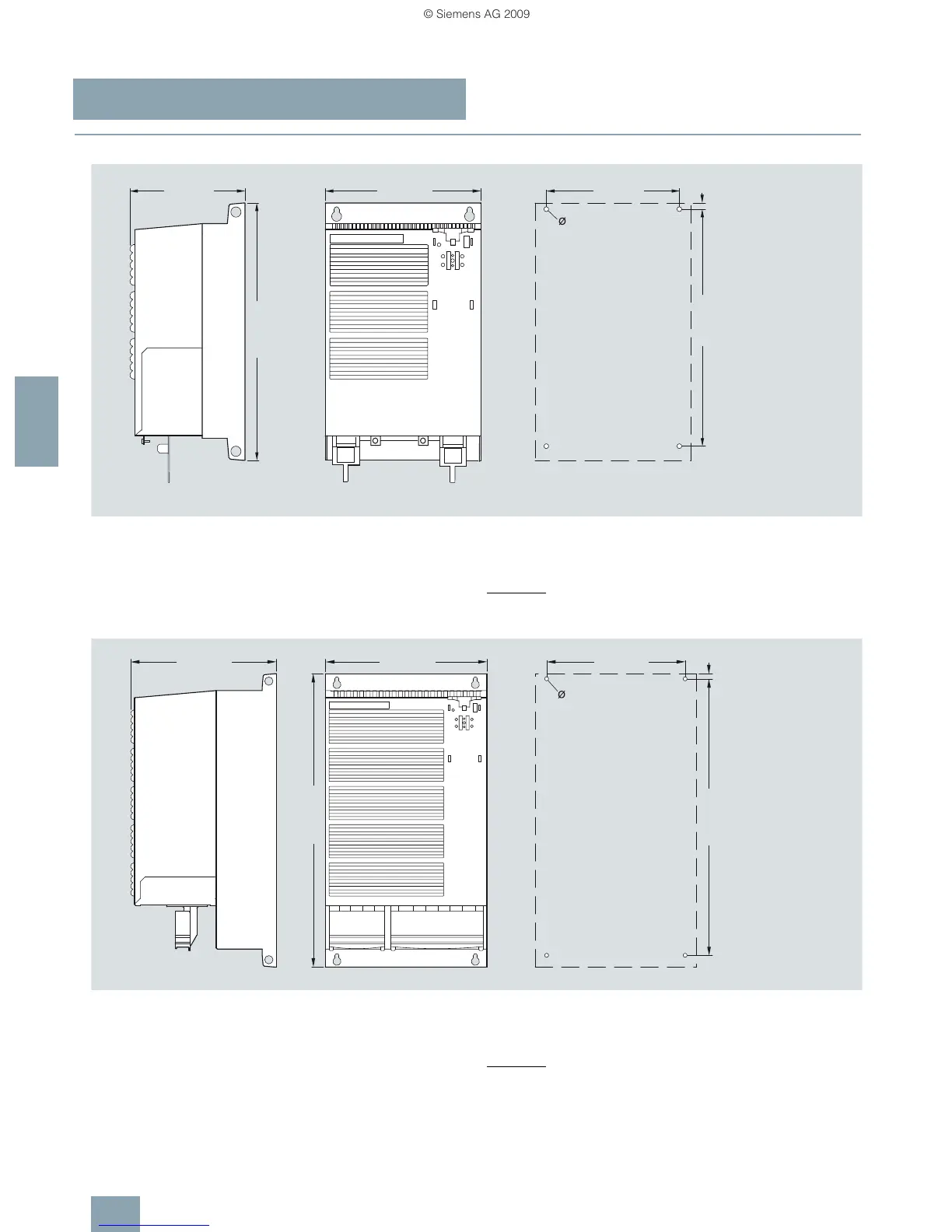

Dimensional drawings
PM260 Power Module frame size FSD with and without integrated class A line filter
Mounted with 4 M6 studs, 4 M6 nuts, 4 M6 washers.
Ventilation clearance required at top and bottom: 300 mm
(11.81 inches).
Ventilation clearance required at sides: 0 mm (0 inches).
When the Control Unit is plugged on, the mounting depth
increases by 56 mm (2.2 inches).
Exception
: for CU240E, mounting depth +22 mm
(+0.87 inches).
All dimensions in mm (values in brackets are in inches).
PM260 Power Module frame size FSF with and without integrated line filter class A
Mounted with 4 M8 studs, 4 M8 nuts, 4 M8 washers.
Ventilation clearance required at top and bottom: 350 mm
(13.78 inches).
Ventilation clearance required at sides: 0 mm (0 inches).
When the Control Unit is plugged on, the mounting depth
increases by 56 mm (2.2 inches).
Exception
: for CU240E, mounting depth +22 mm
(+0.87 inches).
All dimensions in mm (values in brackets are in inches).
Drill pattern
G_D011_EN_00118
235 (9.25)
204 (8.03) 275 (10.83)
455 (17.91)
8.5 (0.33)
419 (16.5)
11 (0.43)
Drill pattern
G_D011_EN_00098
316 (12.44) 350 (13.78) 300 (11.81)
8.5 (0.33)
634 (24.96)
598 (23.54)
11 (0.43)
