SINAMICS G120 - Line-side power components; Line filters

SINAMICS G120
Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)
Line-side power components
Line filters
4/74
Siemens D 11.1 · 2009
4

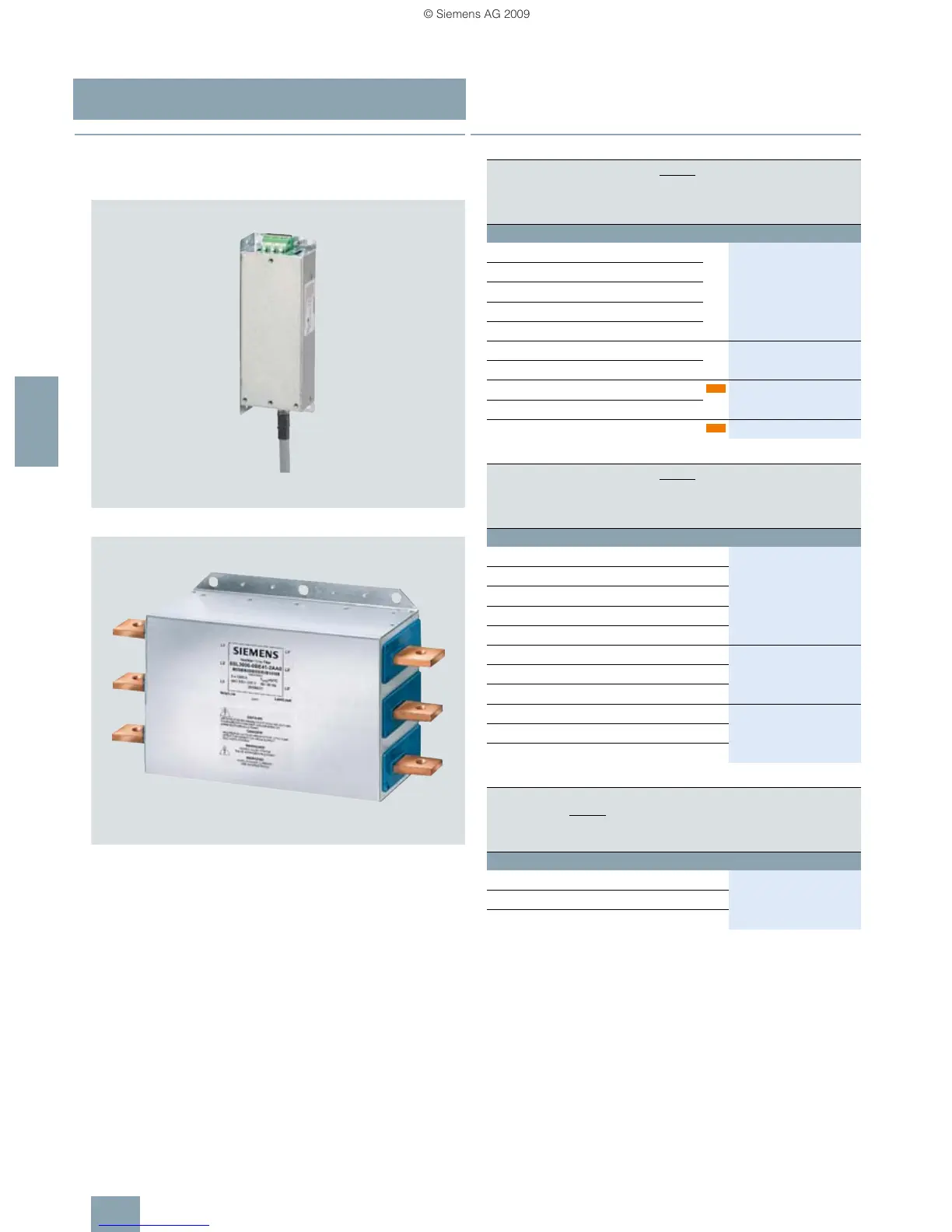

■ Overview
With one of the additional line filters, the Power Module reaches
a higher radio interference class.
Example: Line filter for Power Modules frame size FSA
Example: Line filter for PM240 Power Modules frame size FSGX
■ Selection and ordering data
Rated power SINAMICS G120 PM240
Power Module
Class A line filter
acc. to EN 55011
kW hp Type
6SL3224-...
Frame size Order No.
380 … 480 V 3 AC
0.37 0.50 0BE13-7UA0 FSA 6SE6400-2FA00-6AD0
0.55 0.75 0BE15-5UA0 FSA
0.75 1.0 0BE17-5UA0 FSA
1.1 1.5 0BE21-1UA0 FSA
1.5 2.0 0BE21-5UA0 FSA
110 150 0BE38-8UA0 FSF 6SL3203-0BE32-5AA0
132 200 0BE41-1UA0 FSF
160 250 0XE41-3UA0 FSGX 6SL3000-0BE34-4AA0
200 300 0XE41-6UA0 FSGX
250 400 0XE42-0UA0 FSGX 6SL3000-0BE36-0AA0
Rated power SINAMICS G120 PM240
Power Module
Class B line filter
acc. to EN 55011
kW hp Type
6SL3224-...
Frame size Order No.
380 … 480 V 3 AC
0.37 0.50 0BE13-7UA0 FSA 6SE6400-2FB00-6AD0
0.55 0.75 0BE15-5UA0 FSA
0.75 1.0 0BE17-5UA0 FSA
1.1 1.5 0BE21-1UA0 FSA
1.5 2 0BE21-5UA0 FSA
2.2 3 0BE22-2AA0 FSB 6SL3203-0BE21-6SA0
3.0 4 0BE23-0AA0 FSB
4.0 5 0BE24-0AA0 FSB
7.5 10 0BE25-5AA0 FSC 6SL3203-0BD23-8SA0
11 15 0BE27-5AA0 FSC
15 20 0BE31-1AA0 FSC
Rated power SINAMICS G120
PM250
Power Module
Class B line filter
acc. to EN 55011
kW hp Type
6SL3225-...
Frame size Order No.
380 … 480 V 3 AC
7.5 10 0BE25-5AA0 FSC 6SL3203-0BD23-8SA0
11 15 0BE27-5AA0 FSC
15 20 0BE31-1AA0 FSC
new
new
