SINAMICS G120
Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)
DC link components
Braking resistors
4/83
Siemens D 11.1 · 2009
4
Overview

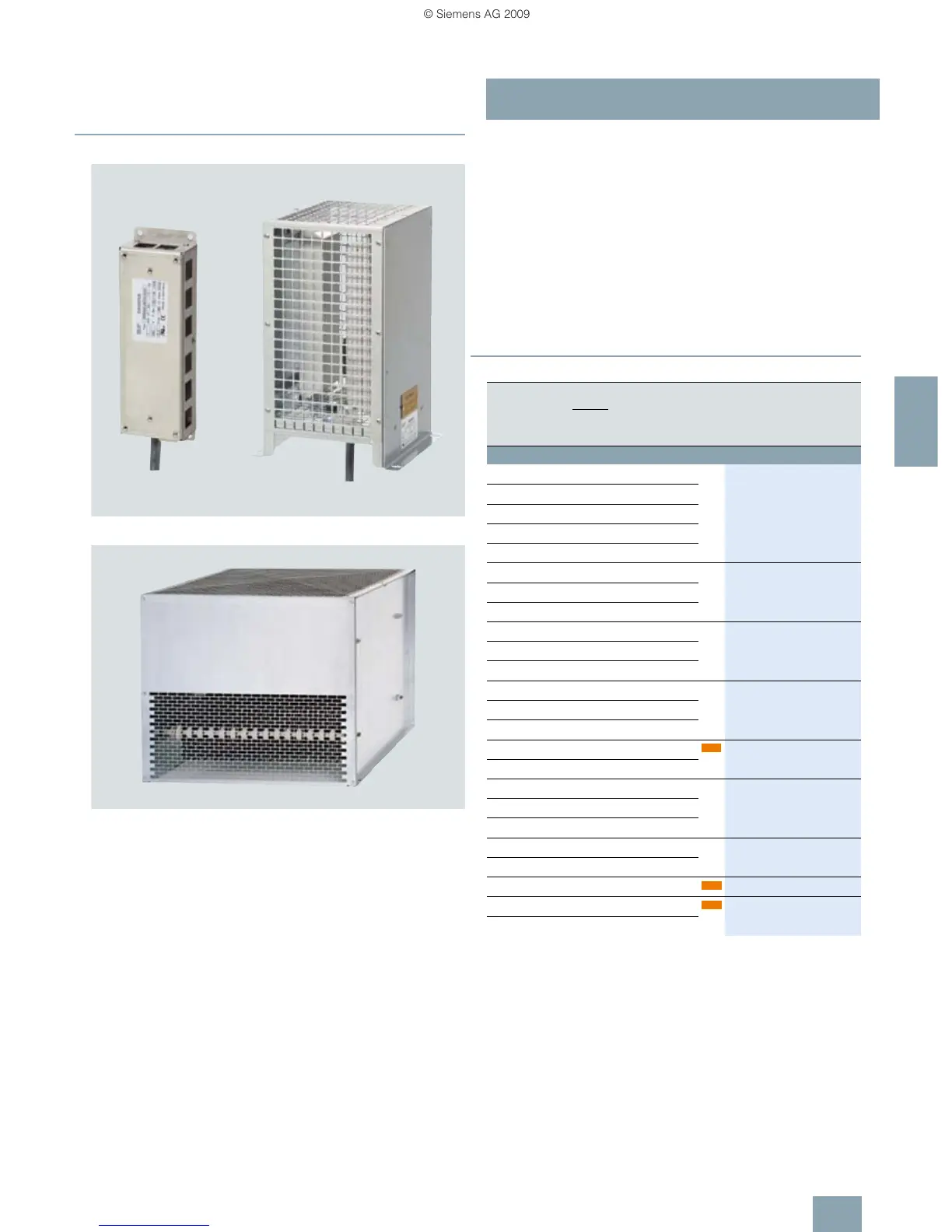

Example: Braking resistors for Power Modules, frame sizes FSA and FSC
Example: Braking resistor for PM240 Power Modules frame size FSGX
Excess energy in the DC link is dissipated in the braking resistor.
The braking resistors are intended for use with PM240 Power
Modules which feature an integrated brake chopper, but cannot
regenerate energy to the supply system. There is an optional
plug-in Braking Module for frame size FSGX. For generator
operation, e.g. the braking of a rotating mass with high moment
of inertia, a braking resistor must be connected to convert the
resulting energy into heat.
The braking resistors can be installed at the side of the PM240
Power Modules. The braking resistors for the FSA and FSB frame
sizes are designed as base components. If the PM240 Power
Modules, frame size FSA or FSB, are operated without line reac-
tor, the braking resistors can also be installed under the Power
Modules.
The braking resistors for the Power Modules, frame sizes FSC to
FSGX, should be placed outside the control cabinet or outside
the switchgear room so that the heat is dissipated away from the
Power Modules. The level of air conditioning required is there-
fore reduced.
Every braking resistor has a temperature switch (UL-listed). The
temperature switch can be evaluated to prevent consequential
damage if the braking resistor overheats.
Selection and ordering data
Rated power SINAMICS G120
PM240 Power Module
Braking resistor
kW hp Type
6SL3224-...
Frame size Order No.
380 480 V 3 AC
0.37 0.50 0BE13-7UA0 FSA 6SE6400-4BD11-0AA0
0.55 0.75 0BE15-5UA0 FSA
0.75 1.0 0BE17-5UA0 FSA
1.1 1.5 0BE21-1UA0 FSA
1.5 2 0BE21-5UA0 FSA
2.2 3 0BE22-2 . A0 FSB 6SL3201-0BE12-0AA0
3.0 4 0BE23-0 . A0 FSB
4.0 5 0BE24-0 . A0 FSB
7.5 10 0BE25-5 . A0 FSC 6SE6400-4BD16-5CA0
11.0 15 0BE27-5 . A0 FSC
15.0 20 0BE31-1 . A0 FSC
18.5 25 0BE31-5 . A0 FSD 6SE6400-4BD21-2DA0
22 30 0BE31-8 . A0 FSD
30 40 0BE32-2 . A0 FSD
37 50 0BE33-0 . A0 FSE 6SE6400-4BD22-2EA1
45 60 0BE33-7 . A0 FSE
55 75 0BE34-5 . A0 FSF 6SE6400-4BD24-0FA0
75 100 0BE35-5 . A0 FSF
90 125 0BE37-5 . A0 FSF
110 150 0BE38-8UA0 FSF 6SE6400-4BD26-0FA0
132 200 0BE41-1UA0 FSF
160 250 0XE41-3UA0 FSGX
1)
6SL3000-1BE31-3AA0
200 300 0XE41-6UA0 FSGX
1)
6SL3000-1BE32-5AA0
250 400 0XE42-0UA0 FSGX
1)
new
new
new
1)
A Braking Module must be additionally ordered for connection.
© Siemens AG 2009
