SINAMICS G120

Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)

Load-side power components

Output reactors

4/88

Siemens D 11.1 · 2009

■

Overview

Output reactors reduce the voltage stress on the motor win-

dings. At the same time, the capacitive charging/discharging

currents, which place an additional load on the power unit when

long motor cables are used, are reduced.

Output reactors are only provided for the PM240 and PM250

Power Modules. An output reactor is not required for the

PM260 Power Module due to its integrated sine-wave filter.

The maximum permissible output frequency is 150 Hz when an

output reactor is used – the pulse frequency must not exceed

4kHz.

The output reactor must be installed as close as possible to the

Power Module.

Output reactors are approved for use only in conjunction with

“Vector” and “V/f control” modes.

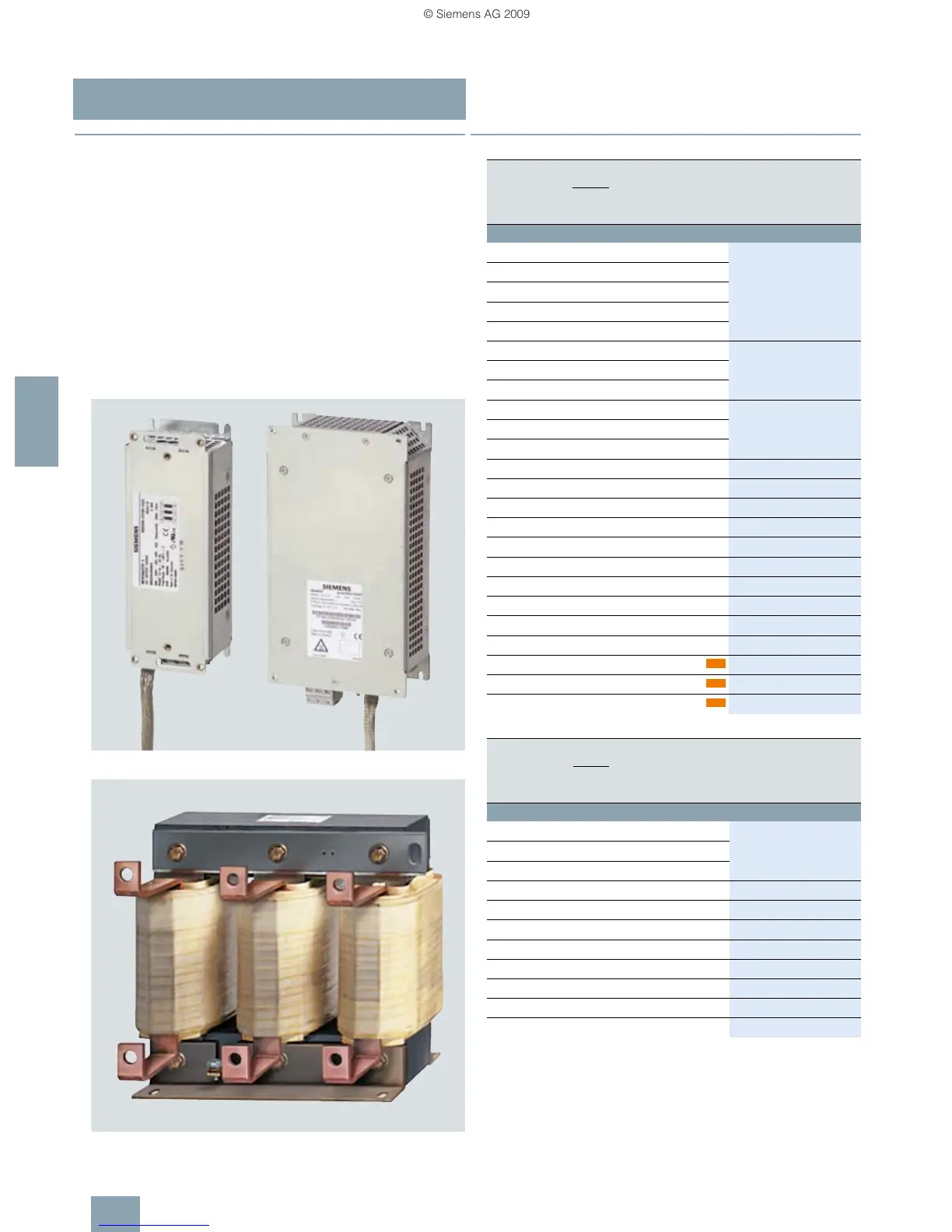

Example: Output reactors for Power Modules frame sizes FSA and FSB

Example: Output reactor for PM240 Power Modules frame size FSGX

■

Selection and ordering data

Rated power SINAMICS G120

PM240 Power Modules

Output reactor

kW hp Type

6SL3224-...

Frame size Order No.

380 … 480 V 3 AC

0.37 0.50 0BE13-7UA0 FSA 6SE6400-3TC00-4AD2

0.55 0.75 0BE15-5UA0 FSA

0.75 1.0 0BE17-5UA0 FSA

1.1 1.5 0BE21-1UA0 FSA

1.5 2 0BE21-5UA0 FSA

2.2 3 0BE22-2 . A0 FSB 6SL3202-0AE21-0CA0

3.0 4 0BE23-0 . A0 FSB

4.0 5 0BE24-0 . A0 FSB

7.5 10 0BE25-5 . A0 FSC

6SL3202-0AJ23-2CA0

11.0 15 0BE27-5 . A0 FSC

15.0 20 0BE31-1 . A0 FSC

18.5 25 0BE31-5 . A0 FSD

6SE6400-3TC05-4DD0

22 30 0BE31-8 . A0 FSD 6SE6400-3TC03-8DD0

30 40 0BE32-2 . A0 FSD 6SE6400-3TC05-4DD0

37 50 0BE33-0 . A0 FSE 6SE6400-3TC08-0ED0

45 60 0BE33-7 . A0 FSE 6SE6400-3TC07-5ED0

55 75 0BE34-5 . A0 FSF 6SE6400-3TC14-5FD0

75 100 0BE35-5 . A0 FSF 6SE6400-3TC15-4FD0

90 125 0BE37-5 . A0 FSF 6SE6400-3TC14-5FD0

110 150 0BE38-8UA0 FSF 6SL3000-2BE32-1AA0

132 200 0BE41-1UA0 FSF 6SL3000-2BE32-6AA0

160 250 0XE41-3UA0 FSGX 6SL3000-2BE33-2AA0

200 300 0XE41-6UA0 FSGX 6SL3000-2BE33-8AA0

250 400 0XE42-0UA0 FSGX 6SL3000-2BE35-0AA0

Rated power SINAMICS G120

PM250

Power Modules

Output reactor

kW hp Type

6SL3225-...

Frame size Order No.

380 … 480 V 3 AC

7.5 10 0BE25-5AA0 FSC 6SL3202-0AJ23-2CA0

11.0 15 0BE27-5AA0 FSC

15.0 20 0BE31-1AA0 FSC

18.5 25 0BE31-5 . A0 FSD 6SE6400-3TC05-4DD0
