SINAMICS G120

Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)

Load-side power components

Sine-wave filters

4/95

Siemens D 11.1 · 2009

■

Overview

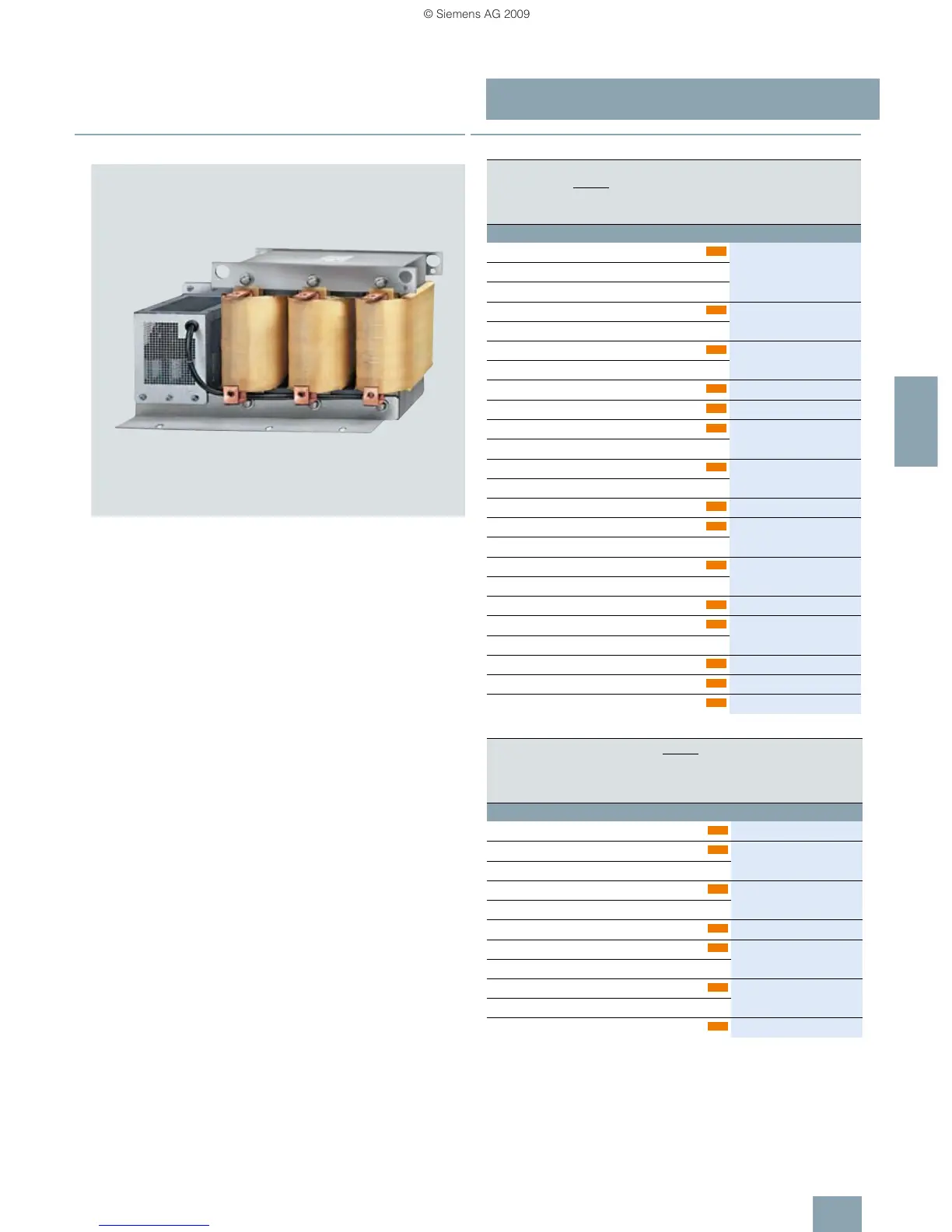

Example: Sine-wave filter for PM240 Power Modules frame size FSGX

A sine-wave filter limits the rate of rise of voltage and the capa-

citive charging/discharging currents that usually occur with in-

verter operation. An output reactor is not required. Sine-wave fil-

ters are only provided for the PM240 and PM250 Power

Modules. PM260 Power Modules already have an integrated

sine-wave filter and an additional sine-wave filter is not required.

The sine-wave filter at the inverter output supplies almost perfect

sinusoidal voltages at the motor so that standard motors can be

used without special cables. Standard cables can be used. The

maximum permissible motor feeder length is 300 m. The maxi-

mum output frequency is 150 Hz at 380 V to 480 V.

When using sine-wave filters, the following should be observed:

• Operation with pulse frequencies from 4 kHz to 8 kHz (sine-

wave filter from 160 kW, only for 4 kHz) permissible

• It must be ensured that the automatic pulse frequency reduc-

tion functions are also deactivated

• A derating of 5 % must be observed when selecting a suitable

inverter

• The output frequency is limited to 150 Hz

• Operation and commissioning may only be performed with the

motor connected as the sine-wave filter is not no-load proof

■

Selection and ordering data

Rated power SINAMICS G120

PM240 Power Module

Sine-wave filter

kW hp Type

6SL3224-...

Frame size Order No.

380 … 480 V 3 AC

0.37 0.50 0BE13-7UA0 FSA 6SL3202-0AE20-3SA0

0.55 0.75 0BE15-5UA0 FSA

0.75 1.0 0BE17-5UA0 FSA

1.1 1.5 0BE21-1UA0 FSA 6SL3202-0AE20-6SA0

1.5 2.0 0BE21-5UA0 FSA

2.2 3.0 0BE22-2 . A0 FSB 6SL3202-0AE21-1SA0

3.0 4.0 0BE23-0 . A0 FSB

4.0 5.0 0BE24-0 . A0 FSB 6SL3202-0AE21-4SA0

7.5 10 0BE25-5 . A0 FSC

6SL3202-0AE22-0SA0

11.0 15 0BE27-5 . A0 FSC

6SL3202-0AE23-3SA0

15.0 20 0BE31-1 . A0 FSC

18.5 25 0BE31-5 . A0 FSD 6SL3202-0AE24-6SA0

22 30 0BE31-8 . A0 FSD

30 40 0BE32-2 . A0 FSD 6SL3202-0AE26-2SA0

37 50 0BE33-0 . A0 FSE 6SL3202-0AE28-8SA0

45 60 0BE33-7 . A0 FSE

55 75 0BE34-5 . A0 FSF 6SL3202-0AE31-5SA0

75 100 0BE35-5 . A0 FSF

90 125 0BE37-5 . A0 FSF 6SL3202-0AE31-8SA0

110 150 0BE38-8UA0 FSF 6SL3000-2CE32-3AA0

132 200 0BE41-1UA0 FSF

160 250 0XE41-3UA0 FSGX 6SL3000-2CE32-8AA0

200 300 0XE41-6UA0 FSGX 6SL3000-2CE33-3AA0

250 400 0XE42-0UA0 FSGX 6SL3000-2CE34-1AA0

Rated power SINAMICS G120 PM250

Power Module
