4.Put wiring cover back and then tighten the screw.
5.Close the panel.
Installation of indoor unit
Note:
● All wires of indoor unit and outdoor unit should be connected by a professional.
for a new one. Avoid extending the wire by yourself.
installation.
● For the air conditioner without plug, an circuit break must be installed in the line.
The circuit break should be all-pole parting and the contact parting distance
should be more than 3mm.

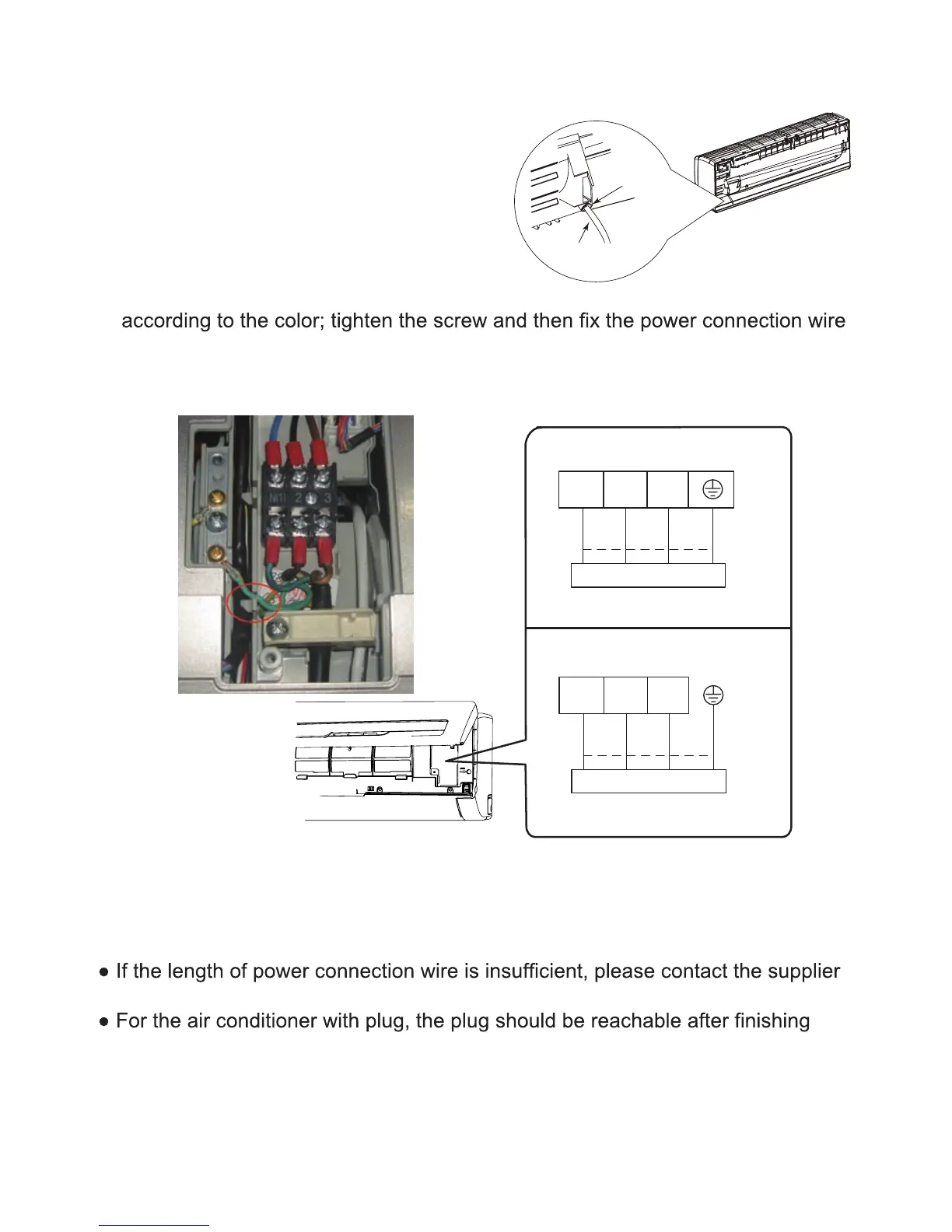

3. Remove the wire clip; connect the power connection wire to the wiring terminal
with wire clip.After finishing wiring of 18K unit, clamp the grounding wire (yellow-
green wire) into the wire-crossing groove as shown in the following figure, in
order to avoid pressing the wire when closing the electric box cover.
power connection
wire
cable-cross
hole
2. Make the power connection wire go
through the cable-cross hole at the back
of indoor unit and then pull it out from
the front side.
2 3N(1)
Outdoor unit connection
13K:
blue black brown
yellow-
green
2 3N(1)
Outdoor unit connection
18K:
blue black brown
yellow-
green
To Next Page
