Installation and Maintenance

Service Manual

Procedure

Step

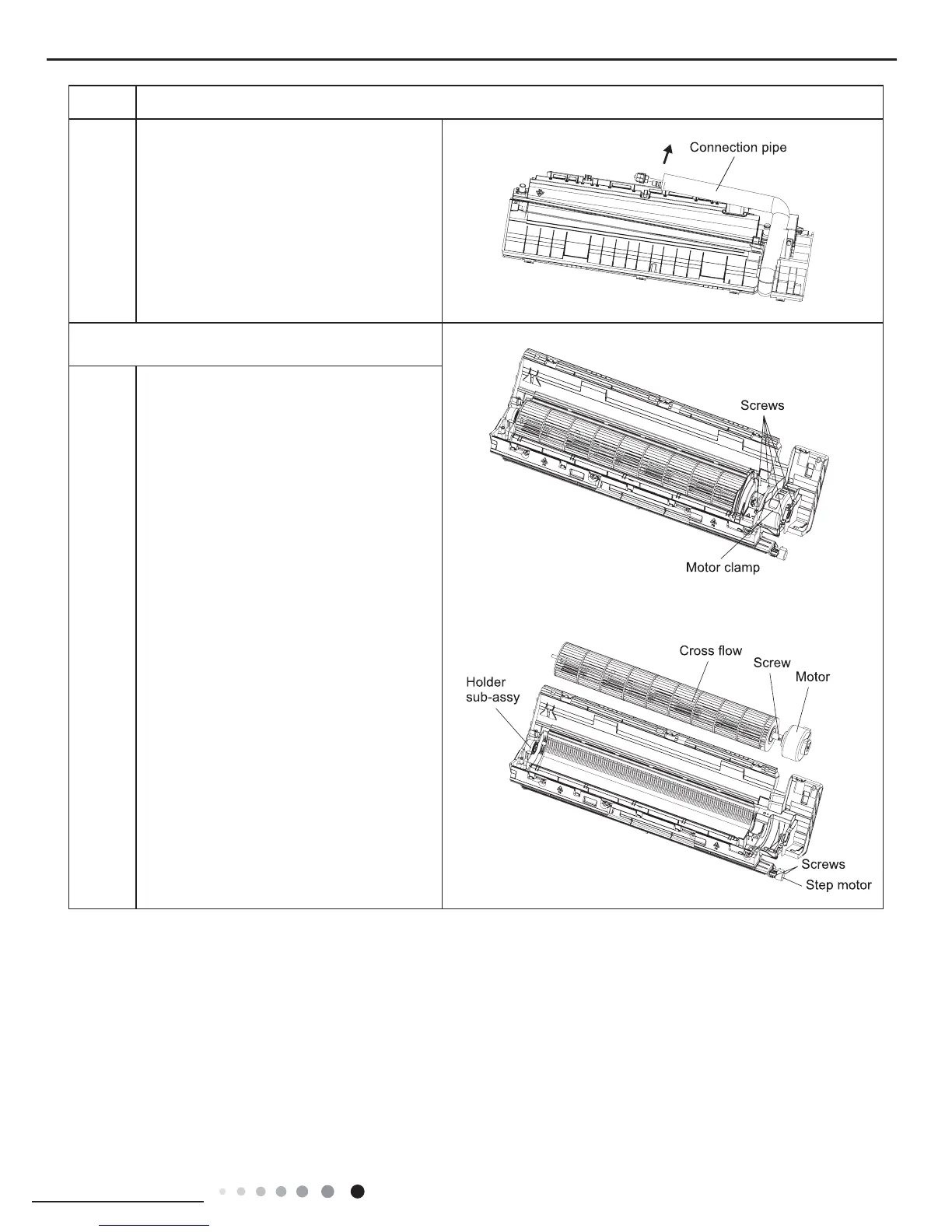

10.Remove motor and cross ow blade

Adjust the position of conncetion pipe on

evaporator up wards to remove it.

Remove the screws xing motor clamp and

then remove the motor clamp.

①

Remove the screws at the connection

place of cross ow blade and motor; lift

the motor and cross ow blade upwards to

remove them.

②

Remove the bearing holder sub-assy.

③

Remove the screw xing step motor and

then remove the step motor.
