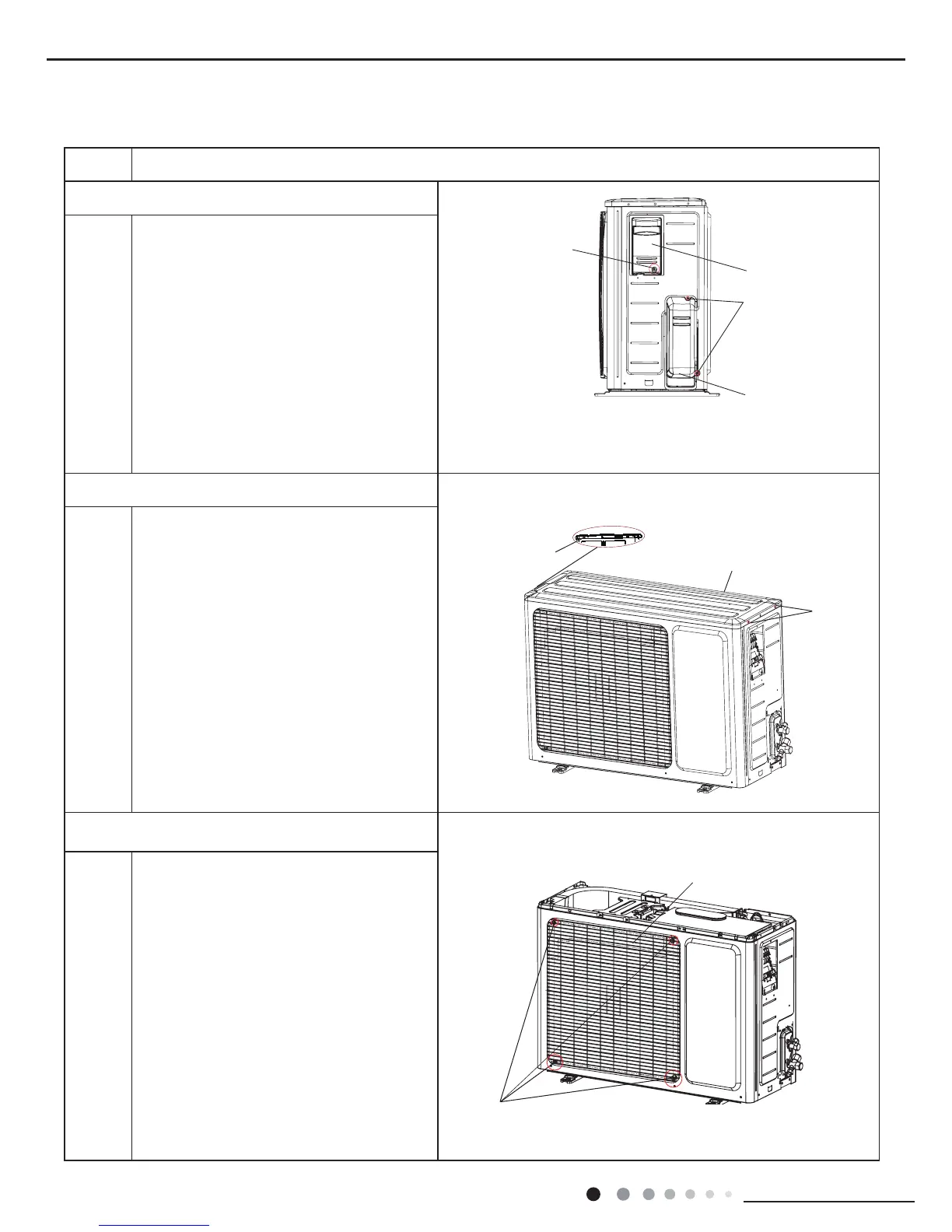

10.2 Removal Procedure of Outdoor Unit
Warning: Be sure to wait for a minimum of 20 minutes after turning off all power
supplies and discharge the refrigerant completely before removal.
18K
ProcedureStep
2. Remove top panel
1. Remove big handle
Remove the screw xing big handle; slide out
the big handle down wards to make the clasp
of big handle separate from the groove of right
side plate, and then remove the big handle.
Remove the screws xing top panel and then
remove the top panel.
Remove connection screws between the front
grille and the front panel. Then remove the
front grille.
Screw
Big handle
Big handle
Screw
Screw
Top panel
Screw
Front grille
3. Remove front grille
Screw
