- 4 -
Installation procedure:
1) Remove the sticker from the front panel.
3) Fill up sews in the cabinet with sponge
or foam.
2) Put the unit into the installation hole.
● When installing the unit, it should be sl-
anted down to the back to avoid the en-
largement of noise or vibration. (Slant
between 6-10mm.) (Shown at right
● The installation place should be strong
enough to avoid the enlargement of
noise or vibration.
6~10mm
Horizontal line

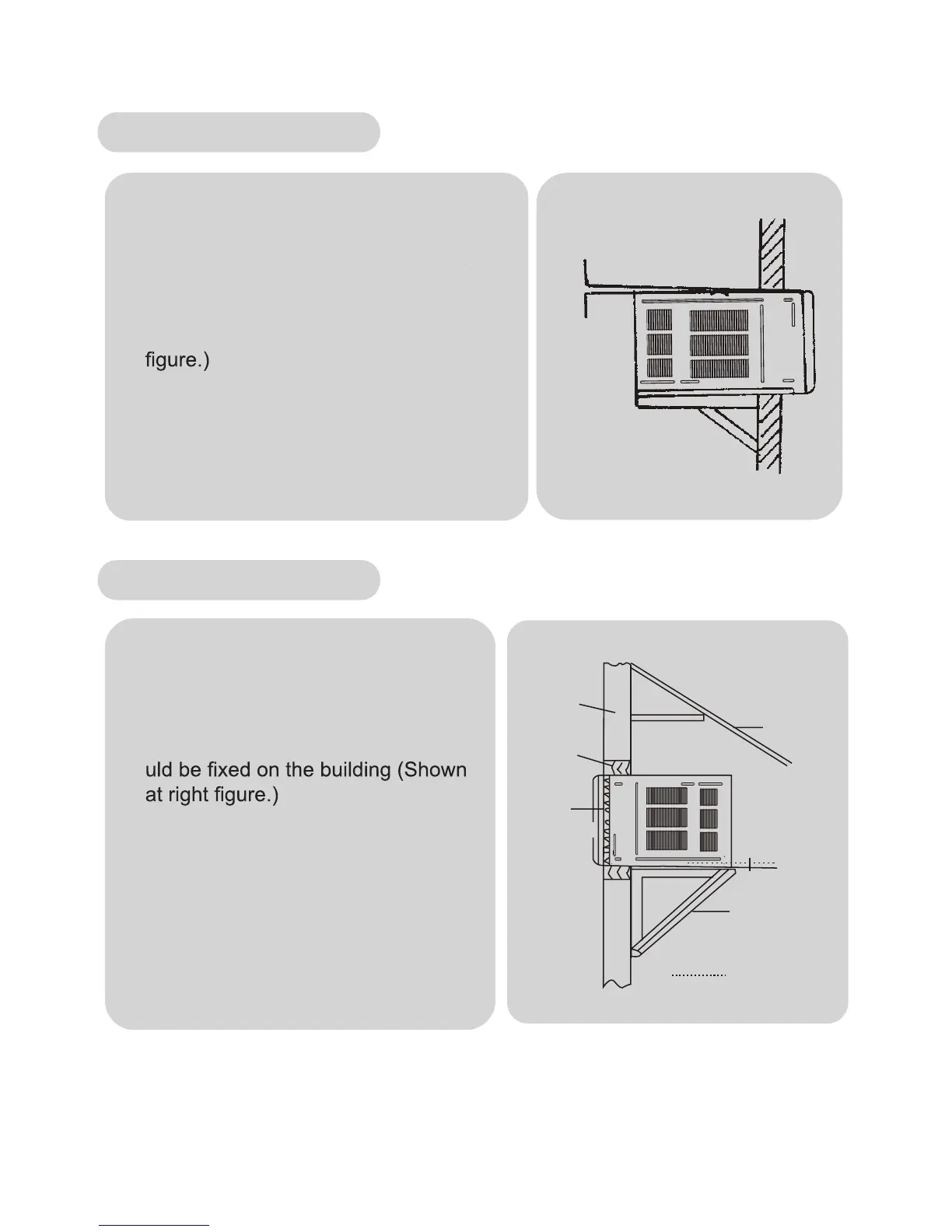

Installation assistance:
● Use iron support
The installation hole should be stro-
ng enough to support the air condit-
ioner.
If it cannot, iron support has to
be used
outdoors. Iron support sho-
● Use sunshade board
Air conditioner should avoid anything
to be dropped into it and avoid direct
sunshine. If there is no cover on it,
you should contact the seller for inst-
alling the sunshade board. When in-
stalling the sunshade board, don’t let
it block the air inlet at the side grille.
Wall
Wooden
frame
Sunshade
board
Rubber
plate
6~10mm
Support
Horizontal line
