3. INSTALLATION METHOD

Fig 3-3

Fig 3-4

Switch box

Back plate

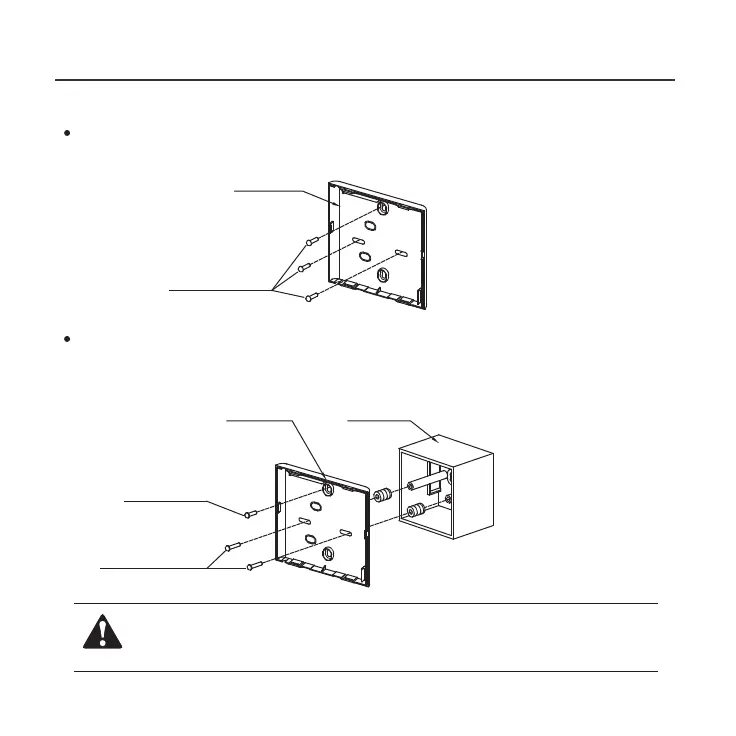

For exposed mounting, fasten the back plate on the wall with the 3 screws (M4×20)

and plugs. (Fig.3-3)

For flush-mounting, fasten the back plate on the switch box with 2 screws (M4×25) and

fasten it on the wall with 1 screw (M4×20). (Fig.3-4)

3. Fasten the back plate of the wire controller

Back plate

Screws (M4×20)

Screw (M4×20)

Screws (M4×25)

NOTICE

Put on a flat surface. Be careful not to distort the back plate of the wire controller

by overtightening the mounting screws.
