3. INSTALLATION METHOD
Fig 3-2
Fig 3-1

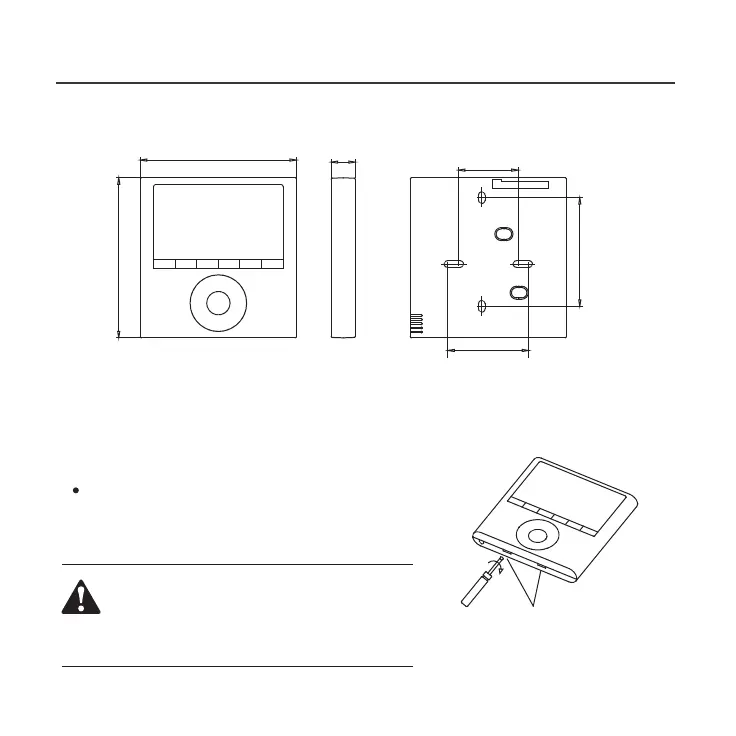

1.Wired remote controller structure size figure
2.Remove the upper part of wire controller
Insert a slot screwdriver into the slots in the lower
part of the wire controller (2 places), and remove
the upper part of the wire controller. (Fig.3-2)
Slots
NOTICE
The PCB is mounted in the upper part of the wire
controller. Be careful not to damage the board
with the slot screwdriver.
123mm
12
0
mm 1
8
.
5
mm
83.5mm
4
6
mm
62mm
