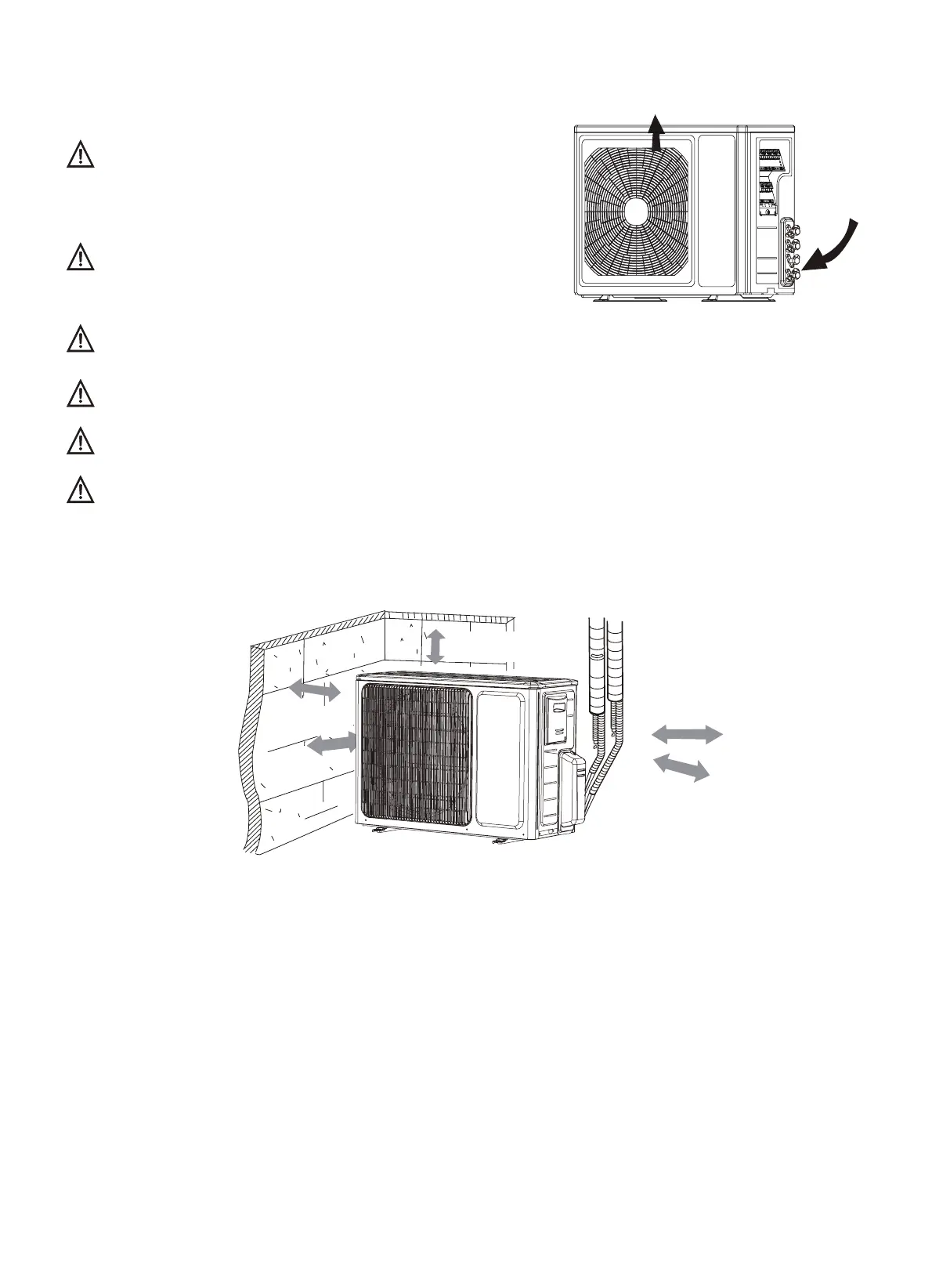

8.3 Installation Dimension Diagram
Use suitable instruments for the refrigerant R32.
● Do not use any other refrigerant than R32.
Do not use mineral oils to clean the unit.
The installation must be done by trained and qualied service personnel with reliability according to this manual.
Contact service center before installation to avoid the malfunction due to unprofessional installation.
When picking up and moving the units, you must be guidedby trained and qualied person.
Ensure that the recommende dspace is left around the appliance.
30cm
Space to the cover
or above
30cm
50cm
(Air inlet side)
or above
or above
Space to the wall
30cm
Space to the cover
or above
30cm
50cm
(Air inlet side)
or above
or above
Spacetothe wall
30cm
Space to the cover
or above
30cm
50cm
200cm
(Air inlet side)
or above
or above
Spacetothe wall
(Air outlet side)
or above
or more
Space to the cover
50cm
or more
Space to the cover
50cm
or more
Space to the cover
50cm
200cm
(Air outlet side)
or above
200cm
(Air outlet side)
or above
