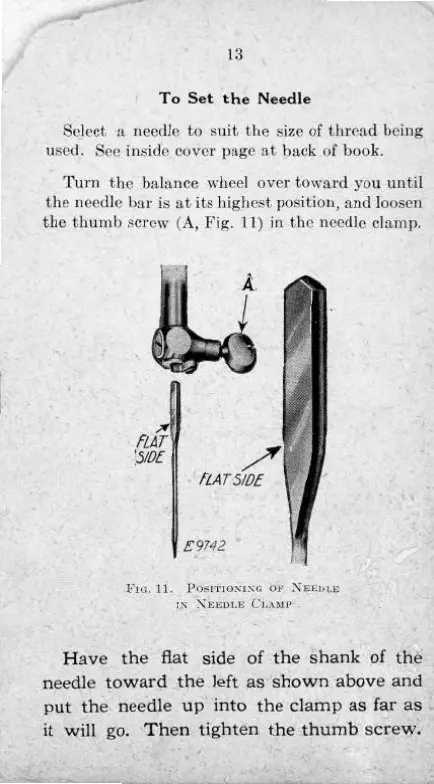

13
To Set the Needle
Select a needle to suit the size of thread being
used. See inside cover page at back of book.
' Turn the balance wheel over toward you until
the needle bar is at its highest position, and loosen
the thumb screw (A, Fig. 11) in the needle clamp.
FIG. 11. POSITIONING OF NEEDLE
IN NEEDLE CLAMP
Have the flat side of the shank of the
needle toward the left as shown above and
put the needle up into the clamp as far as
it will go. Then tighten the thumb screw.
13
To
Set the Needle
Select
a
needle
to
suit
the
size
of
thread being
used.
See
inside cover
page at
back
of
book.
Turn
the
balance wheel over toward you
until
the needle
bar is at
its highest position, and loosen
the thumb screw (A, Fig.
11) in the
needle clamp.
FIG.
11.
POSITIONING
OF
NEEDLE
IN
NEEDLE CLAMP
Have
the
flat side
of
the
shank
of
the
^
needle toward
the
left
as
shown above
and
put
the
needle
up
into
the
clamp
as
far
as i
it
will
go.
Then
tighten
the
thumb screw.
