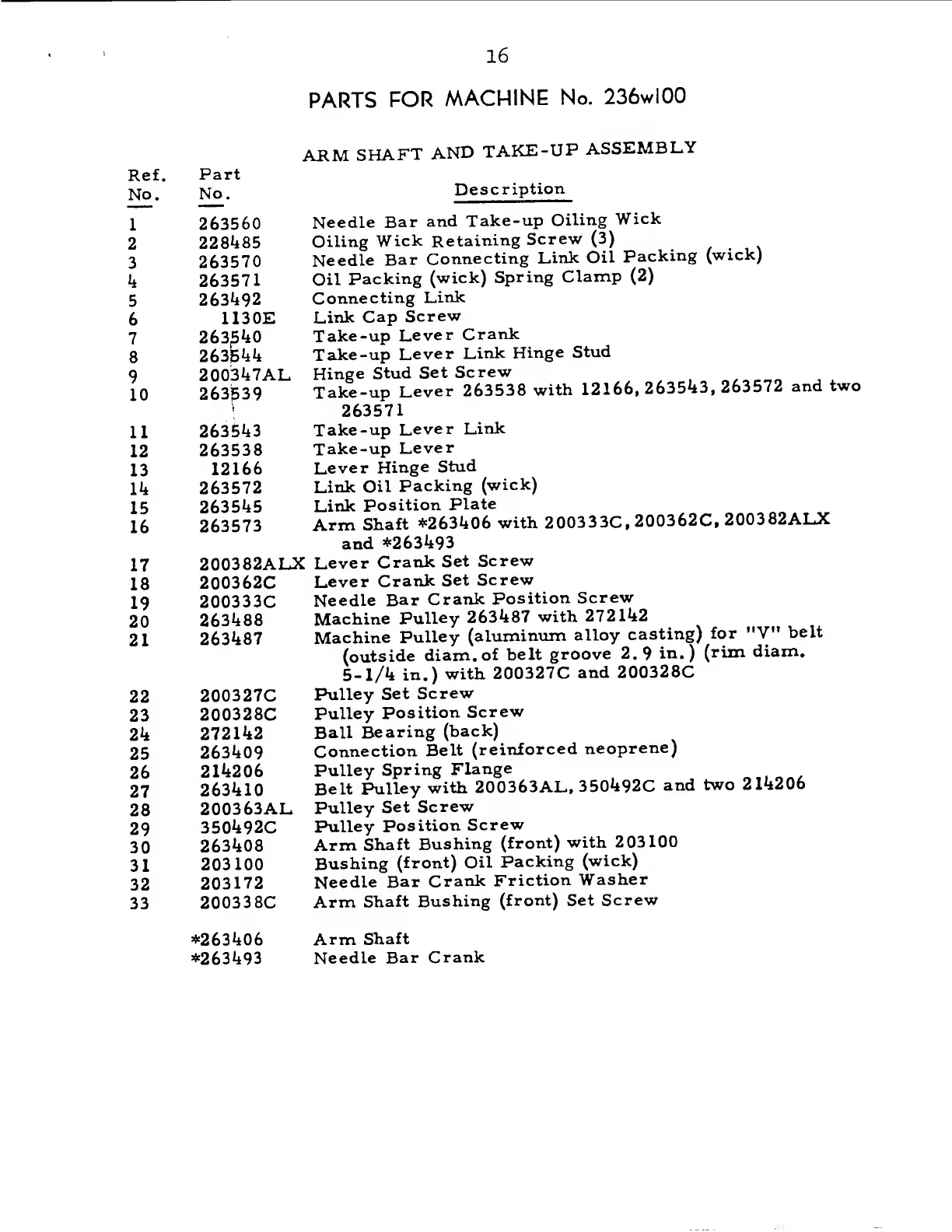

16
PARTS FOR MACHINE No. 236wl00
ARM SHAFT AND TAKE-UP ASSEMBLY
Ref.
Part
No.
No.
1
263560
2
228485
3
263570
4
263571
5
263492
6
1130E
7
263,540
8
263544
9
200347AL
10 263539
t
11
263543
12
263538
13
12166
14
263572
15
263545
16
263573
17
200382ALX
18
200362C
19
200333C
20
263488
21
263487
22
200327C
23
200328C
24
272142
25
263409
26
214206
27
263410
28
200363AL
29
350492C
30
263408
31
203100
32
203172
33
200338C
Description
Needle Bar and Take-up Oiling Wick
Oiling Wick Retaining Screw (3)
Needle Bar Connecting Link Oil Packing (wick)
Oil Packing (wick) Spring Clamp (2)
Connecting Link
Link Cap Screw
Take-up Lever Crank
Take-up Lever Link Hinge Stud
Hinge Stud Set Screw
Take-up Lever 263538 with 12166,263543, 263572 and two
263571
Take-up Lever Link
Take-up Lever
Lever Hinge Stud
Link Oil Packing (wick)
Link Position Plate
Arm Shaft *263406 with 200333C, 200362C, 200382ALX
and *263493
Lever Crank Set Screw
Lever Crank Set Screw
Needle Bar Crank Position Screw
Machine Pulley 263487 with 272142
Machine Pulley (aluminum alloy casting) for "V" belt
(outside diam.of belt groove 2.9 in.) (rim diam.
5-1/4 in.) with 200327C and 200328C
Pulley Set Screw
Pulley Position Screw
Ball Bearing (back)
Connection Belt (reinforced neoprene)
Pulley Spring Flange
Belt Pulley with 200363AL, 350492C and two 214206
Pulley Set Screw
Pulley Position Screw
Arm Shaft Bushing (front) with 203100
Bushing (front) Oil Packing (wick)
Needle Bar Crank Friction Washer
Arm Shaft Bushing (front) Set Screw
*263406 Arm Shaft
*263493 Needle Bar Crank
