18

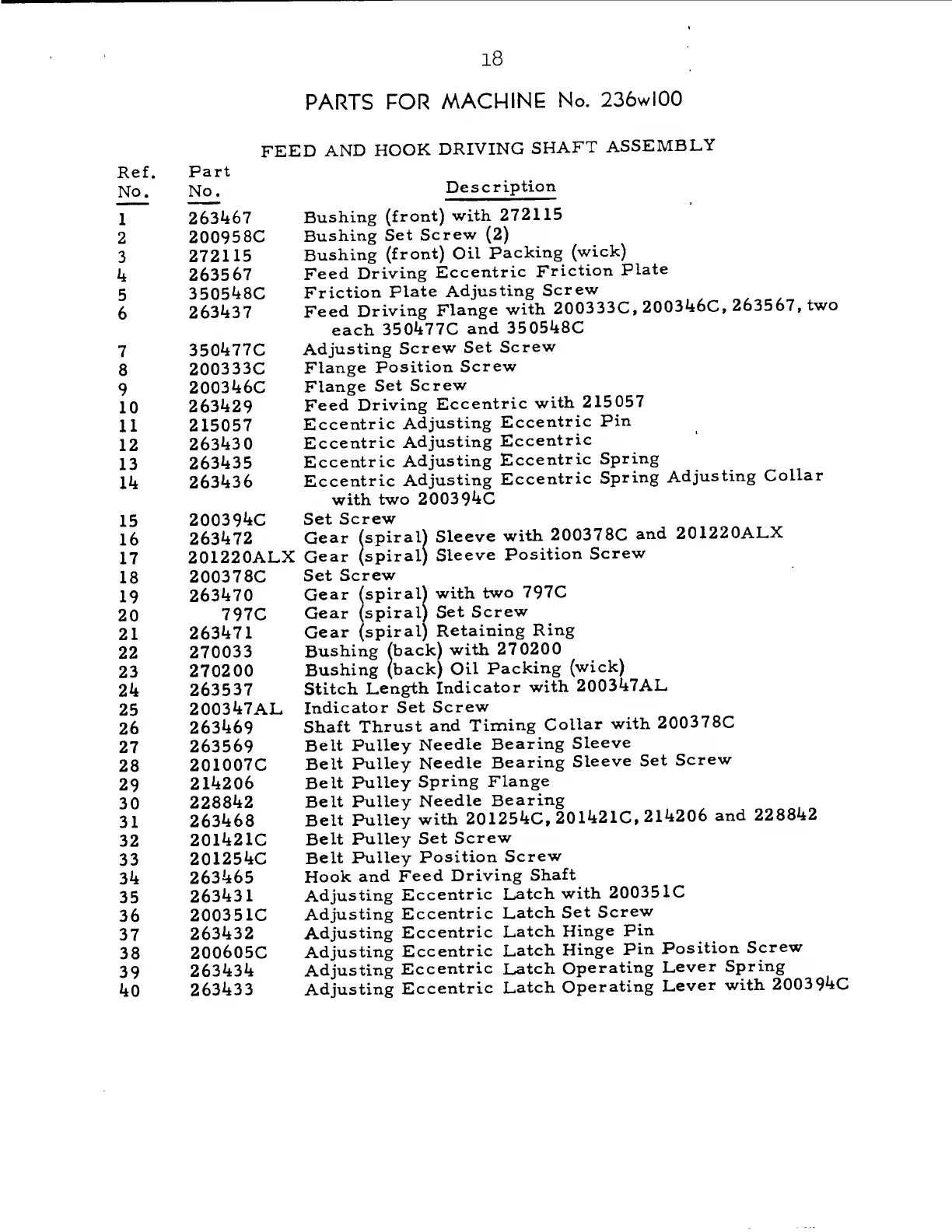

PARTS FOR MACHINE No. 236wl00
FEED AND HOOK DRIVING SHAFT ASSEMBLY
Ref.
Part
No.
No.
Description
1
263467
Bushing (front) with 272115
2
200958C
Bushing Set Screw (2)
3
272115
Bushing (front) Oil Packing (wick)
4
263567
Feed Driving Eccentric Friction Plate
5
350548C
Friction Plate Adjusting Screw
6
263437
Feed Driving Flange with 200333C, 200346C, 263567, two
each 350477C and 350548C
7
350477C
Adjusting Screw Set Screw
8
200333C
Flange Position Screw
9
200346C
Flange Set Screw
10 263429
Feed Driving Eccentric with 215057
11
215057
Eccentric Adjusting Eccentric Pin
12
263430
Eccentric Adjusting Eccentric
13
263435
Eccentric Adjusting Eccentric Spring
14
263436
Eccentric Adjusting Eccentric Spring Adjusting Collar
with two 200394C
15
200394C
Set Screw
16
263472
Gear (spiral) Sleeve with 200378C and 201220ALX
17
201220ALX Gear (spiral) Sleeve Position Screw
18
200378C
Set Screw
19
263470
Gear (spiral) with two 797C
20
797C
Gear (spiral) Set Screw
21
263471
Gear (spiral) Retaining Ring
22
270033
Bushing (back) with 270200
23
270200
Bushing (back) Oil Packing (wick)
24
263537
Stitch Length Indicator with 200347AL
25
200347AL
Indicator Set Screw
26 263469
Shaft Thrust and Timing Collar with 200378C
27
263569
Belt Pulley Needle Bearing Sleeve
28
201007C
Belt Pulley Needle Bearing Sleeve Set Screw
29
214206
Belt Pulley Spring Flange
30
228842
Belt Pulley Needle Bearing
31
263468
Belt Pulley with 201254C, 201421C, 214206 and 228842
32
201421C
Belt Pulley Set Screw
33
201254C
Belt Pulley Position Screw
34
263465
Hook and Feed Driving Shaft
35
263431
Adjusting Eccentric Latch with 200351C
36
200351C
Adjusting Eccentric Latch Set Screw
37
263432
Adjusting Eccentric Latch Hinge Pin
38
200605C
Adjusting Eccentric Latch Hinge Pin Position Screw
39
263434
Adjusting Eccentric Latch Operating Lever Spring
40
263433
Adjusting Eccentric Latch Operating Lever with 200394C
