20

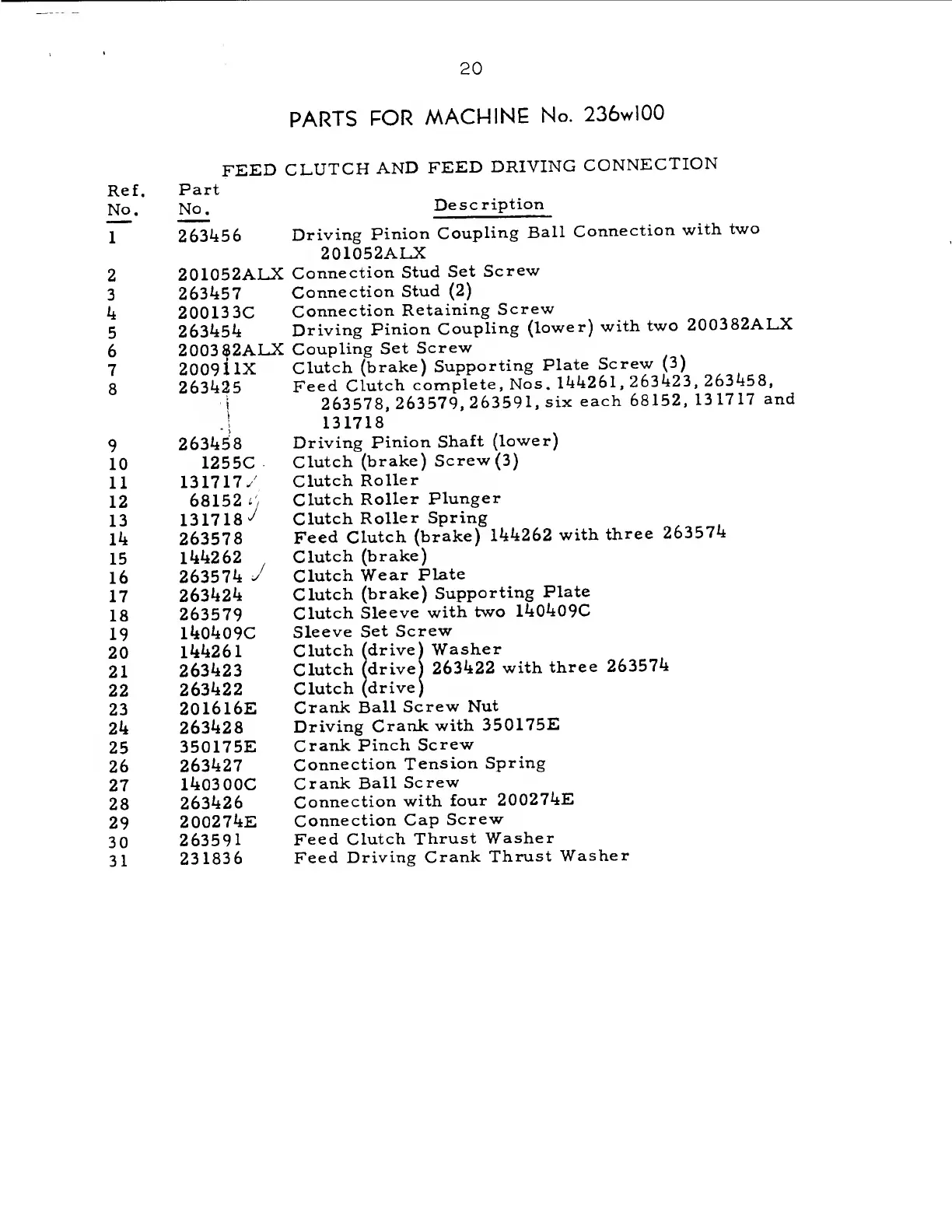

PARTS FOR MACHINE No. 236wl00
FEED CLUTCH AND FEED DRIVING CONNECTION
Ref. Part
No. No. Description
1 263456 Driving Pinion Coupling Ball Connection with two
201052ALX
2 201052ALX Connection Stud Set Screw
3 263457 Connection Stud (2)
4 200133C Connection Retaining Screw
5 263454 Driving Pinion Coupling (lower) with two 200382ALX
6 200382ALX Coupling Set Screw
7 200911X Clutch (brake) Supporting Plate Screw (3)
8 263425 Feed Clutch complete. Nos . 144261,263423, 263458,
i 263578,263579,263591,six each 68152,131717 and
.1 131718
9 263458 Driving Pinion Shaft (lower)
10 1255C Clutch (brake) Screw (3)
11 131717/ Clutch Roller
12 68152 / Clutch Roller Plunger
13 131718^ Clutch Roller Spring
14 263578 Feed Clutch (brake) 144262 with three 263574
15 144262 Clutch (brake)
16 263574 J Clutch Wear Plate
17 263424 Clutch (brake) Supporting Plate
18 263579 Clutch Sleeve with two 140409C
19 140409C Sleeve Set Screw
20 144261 Clutch (drive) Washer
21 263423 Clutch (drive) 263422 with three 263574
22 263422 Clutch (drive)
23 201616E Crank Ball Screw Nut
24 263428 Driving Crank with 350175E
25 350175E Crank Pinch Screw
26 263427 Connection Tension Spring
27 140300C Crank Ball Screw
28 263426 Connection with four 200274E
29 200274E Connection Cap Screw
30 263591 Feed Clutch Thrust Washer
31 231836 Feed Driving Crank Thrust Washer
