26

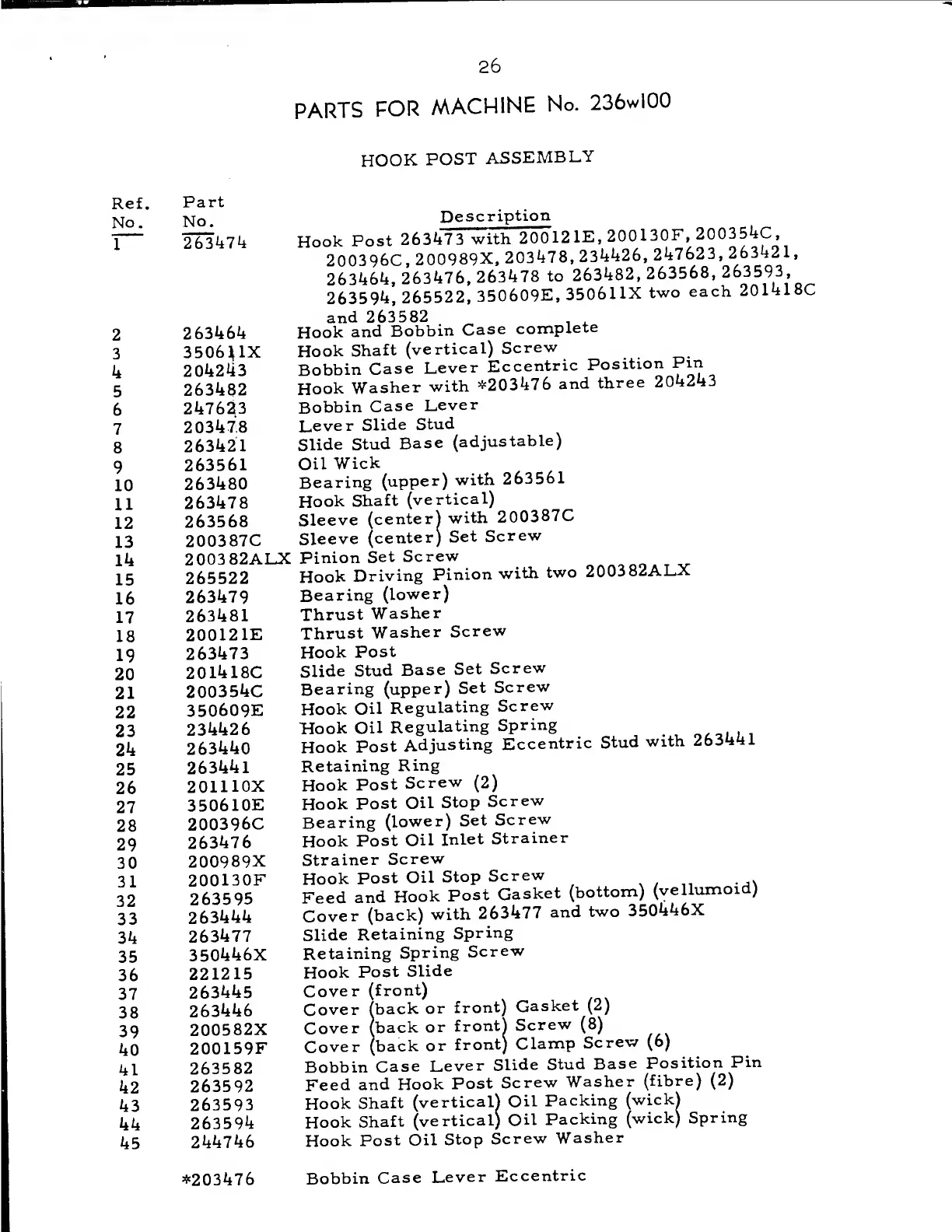

PARTS FOR MACHINE No. 236wl00
HOOK POST ASSEMBLY
Ref.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
Part
No.
263474
263464
3506^ IX
204243
263482
247623
20347'8
263421
263561
263480
263478
263568
200387C
200382ALX
265522
263479
263481
20012 IE
263473
201418C
200354C
350609E
234426
263440
263441
201110X
350610E
200396C
263476
200989X
200130F
263595
263444
263477
350446X
221215
263445
263446
200582X
200159F
263582
263592
263593
263594
244746
Desc ription
Hook Post 263473 with 20012 IE, 20013OF, 200354C ,
200396C, 200989X, 203478, 234426, 247623,263421,
263464,263476,263478 to 263482,263568,263593,
263594, 265522, 350609E,350611X two each 201418C
and 263582 . , .
Hook and Bobbin Case complete
Hook Shaft (vertical) Screw
Bobbin Case Lever Eccentric Position Pin
Hook Washer with *20347 6 and three 204243
Bobbin Case Lever
Lever Slide Stud
Slide Stud Base (adjustable)
Oil Wick
Bearing (upper) with 263561
Hook Shaft (vertical)
Sleeve (center) with 200387C
Sleeve (center) Set Screw
Pinion Set Screw
Hook Driving Pinion with two 200382ALX
Bearing (lower)
Thrust Washer
Thrust Washer Screw
Hook Post
Slide Stud Base Set Screw
Bearing (upper) Set Screw
Hook Oil Regulating Screw
Hook Oil Regulating Spring
Hook Post Adjusting Eccentric Stud with 263441
Retaining Ring
Hook Post Screw (2)
Hook Post Oil Stop Screw
Bearing (lower) Set Screw
Hook Post Oil Inlet Strainer
Strainer Screw
Hook Post Oil Stop Screw
Feed and Hook Post Gasket (bottom) (vellumoid)
Cover (back) with 263477 and two 350446X
Slide Retaining Spring
Retaining Spring Screw
Hook Post Slide
Cover (front)
Cover (back or front) Gasket (2)
Cover (back or front) Screw (8)
Cover (back or front) Clamp Screw (6)
Bobbin Case Lever Slide Stud Base Position Pin
Feed and Hook Post Screw Washer (fibre) (2)
Hook Shaft (vertical! Oil Packing (wick!
Hook Shaft (vertical) Oil Packing (wick) Spring
Hook Post Oil Stop Screw Washer
*203476 Bobbin Case Lever Eccentric
