28

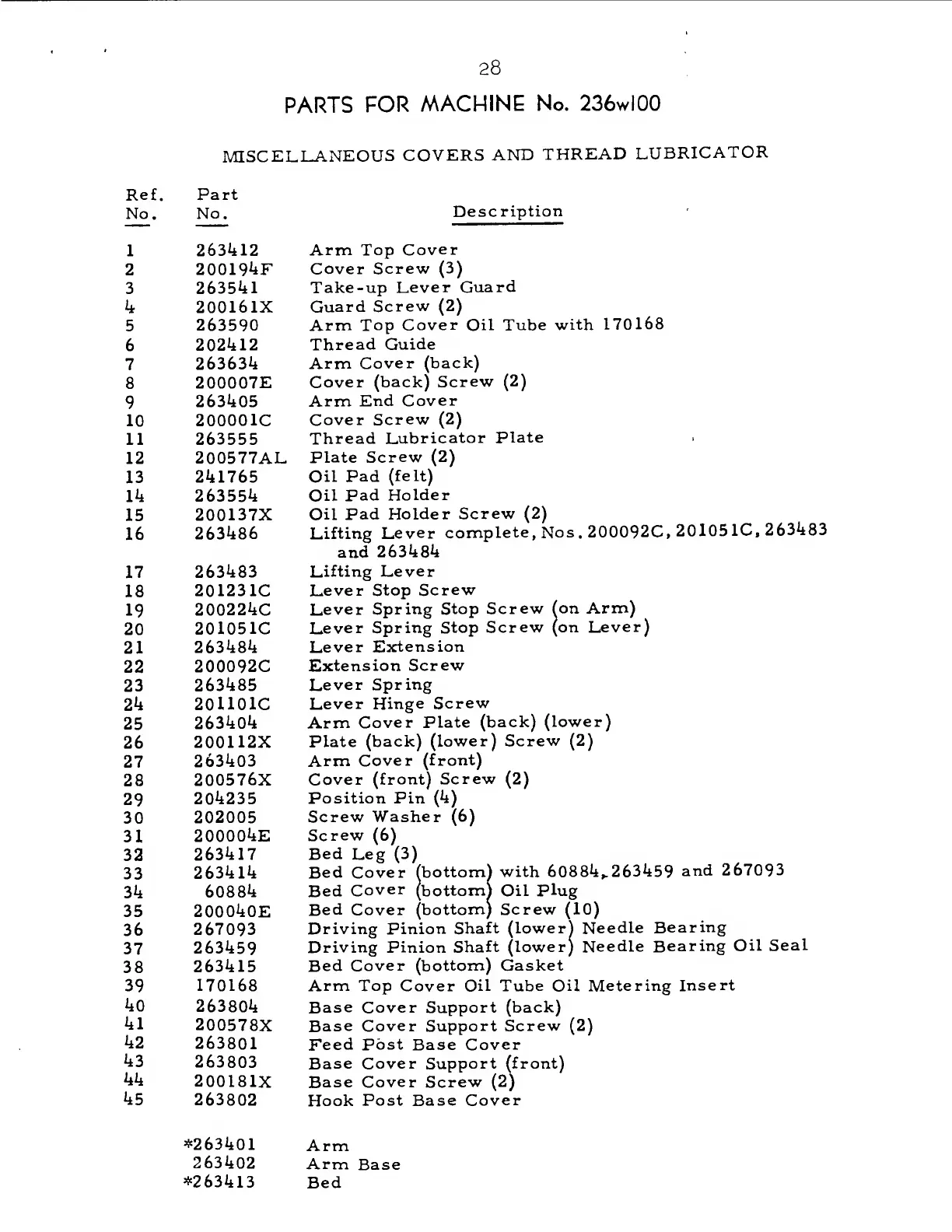

PARTS FOR MACHINE No. 236wl00
MISCELLANEOUS COVERS AND THREAD LUBRICATOR
Ref. Part
No.
No.
1
263412
2
200194F
3
263541
4
200161X
5
263590
6
202412
7
263634
8
200007E
9
263405
10
200001C
11 263555
12
200577AL
13
241765
14
263554
15
200137X
16
263486
17
263483
18
201231C
19
200224C
20
201051C
21
263484
22
200092C
23
263485
24
201101C
25
263404
26
200112X
27
263403
28
200576X
29
204235
30 202005
31
200004E
32
263417
33
263414
34
60884
35
200040E
36
267093
37
263459
38
263415
39
170168
40
263804
41
200578X
42
263801
43
263803
44
200181X
45
263802
Description
Arm Top Cover
Cover Screw (3)
Take-up Lever Guard
Guard Screw (2)
Arm Top Cover Oil Tube with 170168
Thread Guide
Arm Cover (back)
Cover (back) Screw (2)
Arm End Cover
Cover Screw (2)
Thread Lubricator Plate
Plate Screw (2)
Oil Pad (felt)
Oil Pad Holder
Oil Pad Holder Screw (2)
Lifting Lever complete, Nos. 200092C, 201051C, 263483
and 263484
Lifting Lever
Lever Stop Screw
Lever Spring Stop Screw (on Arm)
Lever Spring Stop Screw (on Lever)
Lever Extension
Extension Screw
Lever Spring
Lever Hinge Screw
Arm Cover Plate (back) (lower)
Plate (back) (lower) Screw (2)
Arm Cover (front)
Cover (front) Screw (2)
Position Pin (4)
Screw Washer (6)
Screw (6)
Bed Leg (3)
Bed Cover (bottom) with 60884,.263459 and 267093
Bed Cover (bottom) Oil Plug
Bed Cover (bottom) Screw (10)
Driving Pinion Shaft (lower) Needle Bearing
Driving Pinion Shaft (lower) Needle Bearing Oil Seal
Bed Cover (bottom) Gasket
Arm Top Cover Oil Tube Oil Metering Insert
Base Cover Support (back)
Base Cover Support Screw (2)
Feed Post Base Cover
Base Cover Support (front)
Base Cover Screw (2)
Hook Post Base Cover
*263401 Arm
263402 Arm Base
*263413 Bed
